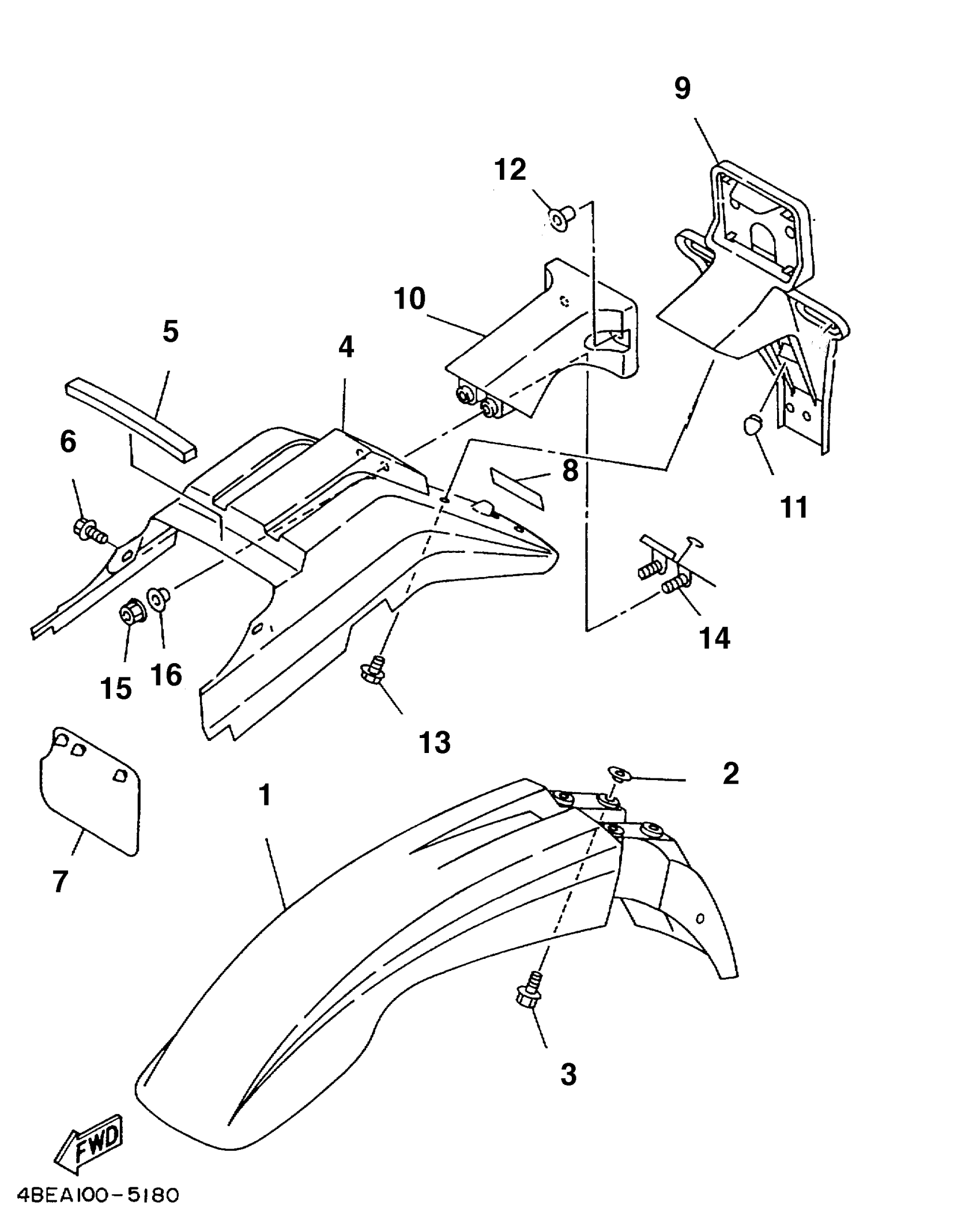

Yamaha XT225LC (SEROW CA) 4BENC 1999 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4BE-21511-00-00

Unavailable

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

FENDER,REAR

99999-03284-00

Unavailable

5

DAMPER

3RW-21639-00-00

$6.99

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

FLAP

34X-21691-00-00

$19.99

8

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

9

BRACKET, LICENCE

4BE-84551-00-00

$103.99

10

DAMPER

4BE-84527-00-00

Unavailable

11

DAMPER 2

42U-21639-00-00

Unavailable

12

COLLAR 437216330000

90387-07391-00

Unavailable

13

BOLT, FLANGE

95817-06016-00

$2.75

14

CLAMP, WIRE

4BE-21637-00-00

Unavailable

15

NUT(6TA)

95317-06600-00

$3.55

16

COLLAR (8G8)

90387-06681-00

$9.49
