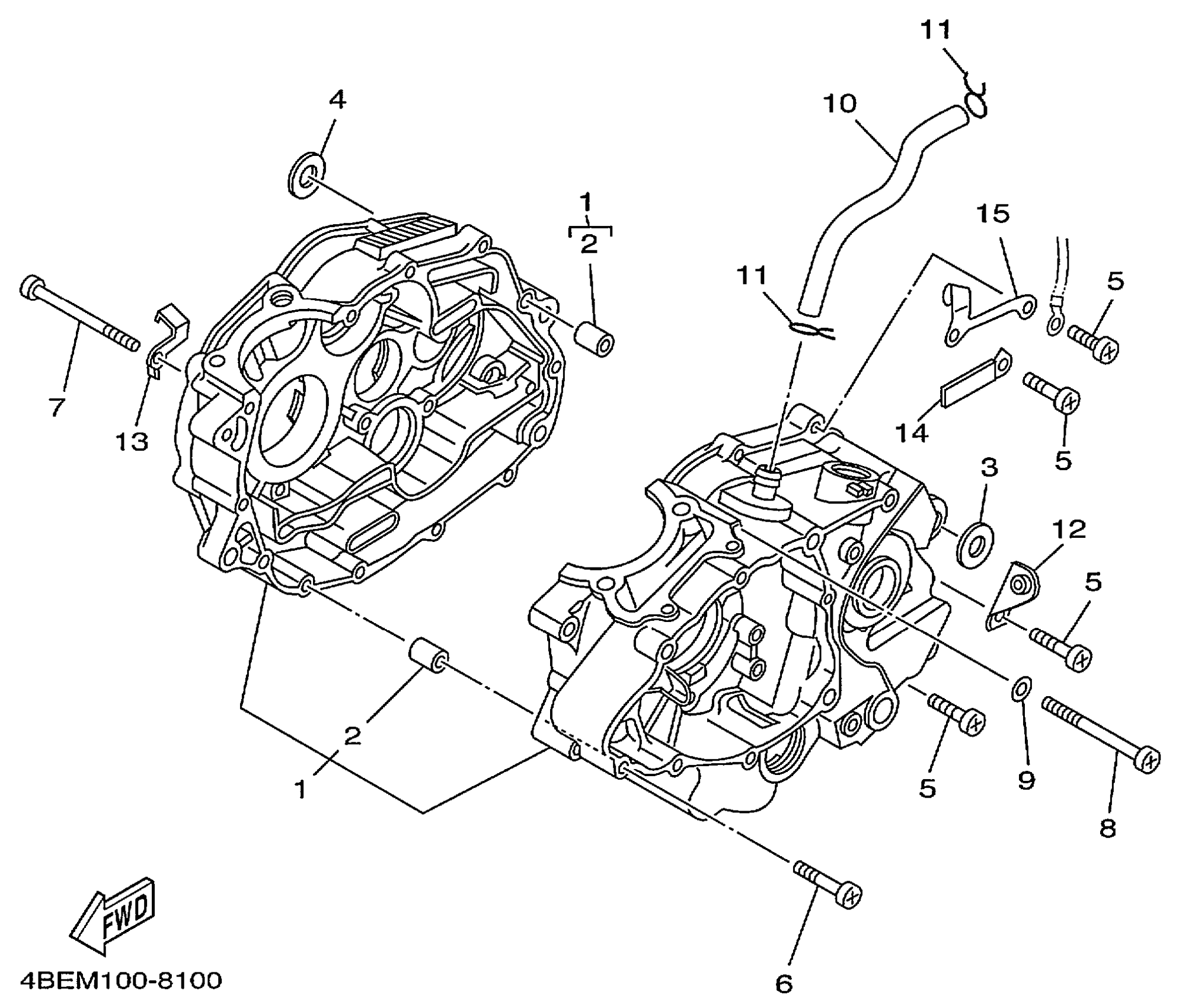

Yamaha XT225LC (SEROW CA) 4BENC 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3RW-15100-02-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COLLAR (15A)

90387-125F1-00

$3.02

4

COLLAR (15A)

90387-125F1-00

$3.02

5

SCREW, PAN

98517-06030-00

Unavailable

6

SCREW, PAN

98507-06040-00

$3.22

7

SCREW, PAN

98507-06090-00

Unavailable

8

SCREW, PAN

98507-06085-00

$6.99

9

GASKET 256113960000

90430-06014-00

Unavailable

10

PIPE, BREATHER 1

1KH-11166-01-00

$35.99

11

CLIP (371)

90467-14015-00

$8.49

12

CLAMP (15A)

90465-08200-00

$9.49

13

CLAMP(3RW)

90462-08224-00

Unavailable

14

CLAMP(4MX)

90465-06376-00

$9.49

15

HOLDER, CLUTCH CABLE

4JG-15441-02-00

Unavailable
