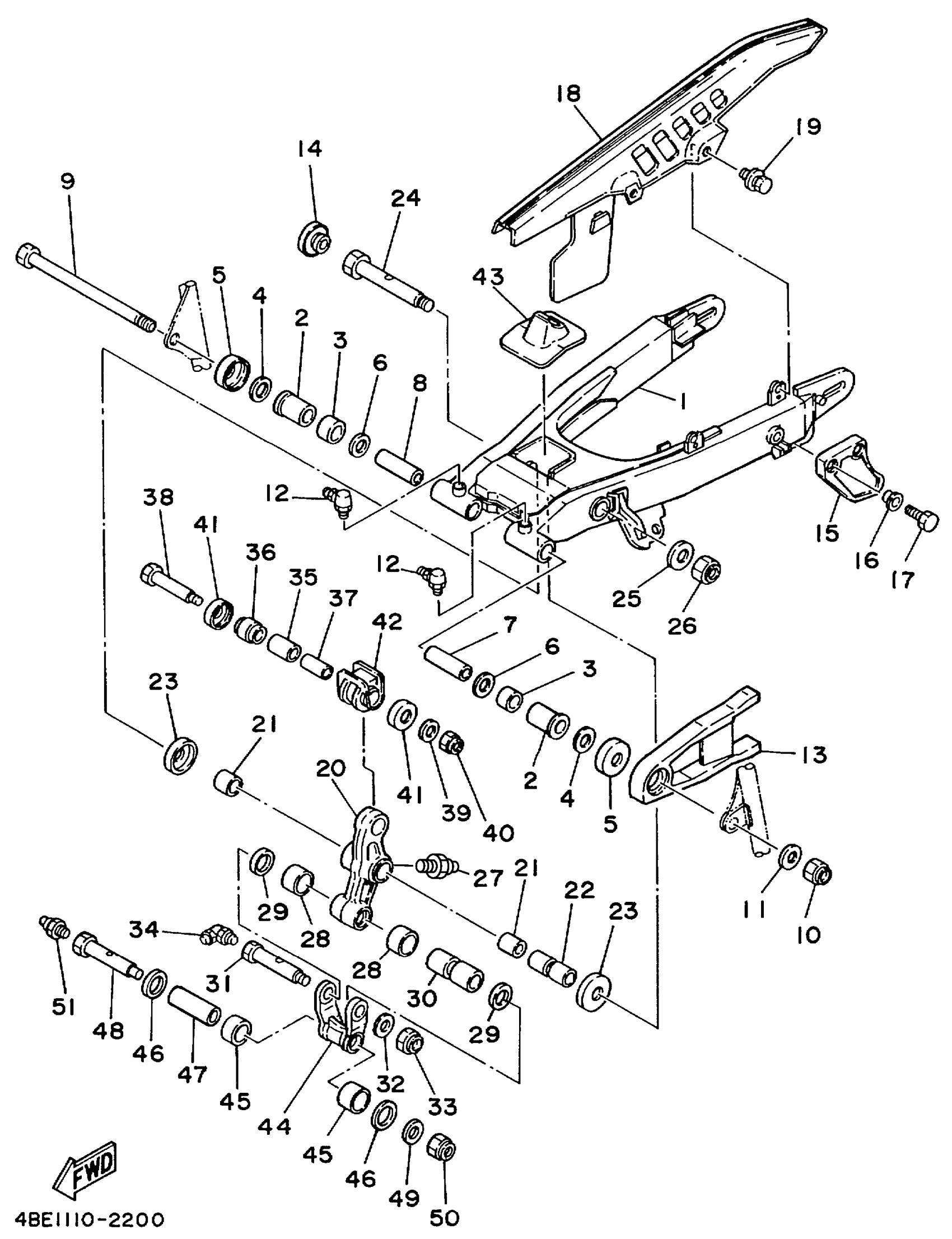

1998 Yamaha Serow CA (XT225KC) Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 1998 Yamaha Serow CA (XT225KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Serow CA (XT225KC) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

4BE-22110-00-35

1
Out of stock

2

BUSH(1KH)

90386-18146-00

1

$15.34

In stock

3

BUSH, SOLID(12T)

90380-18139-00

1

$15.86

In stock

4

SHIM

401-22127-00-00

1

$6.62

In stock

5

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

6

OIL SEAL (2J5)

93109-18020-00

1

$11.18

In stock

7

COLLAR(1KH)

90387-121N2-00

—

$12.78

In stock

8

COLLAR (10V)

90387-127F2-00

—

$16.31

In stock

9

SHAFT, PIVOT

34X-22141-00-00

—
Out of stock

10

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

11

WASHER, PLATE (4N0)

90201-126A7-00

1

$6.28

In stock

12

NIPPLE, GREASE

93700-06005-00

1

$10.92

In stock

13

SEAL, GUARD

1KH-22151-00-00

—
Out of stock

14

CAP

34L-22117-00-00

—
Out of stock

15

SUPPORT, CHAIN

38V-22199-00-00

1
Out of stock

16

COLLAR (3L6)

90387-06737-00

—

$6.60

In stock

17

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

18

CASE, CHAIN

34X-22311-01-00

—

$28.45

In stock

19

BOLT, WITH WASHER (10V)

90119-05062-00

—

$5.45

In stock

20

ARM, RELAY

3RW-2217A-00-00

—
Out of stock

21

BUSH (30X)

90386-20120-00

—
Out of stock

22

COLLAR (30X)

90387-140J9-00

—
Out of stock

23

COVER, THRUST 1

34L-22128-00-00

—
Out of stock

24

BOLT, WASHER BASED(3RW)

90105-12668-00

—
Out of stock

25

WASHER, PLATE (35T)

90201-122H1-00

—

$6.82

In stock

26

NUT, U (4PM)

95617-12100-00

—

$3.69

In stock

27

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

28

BUSH (26H)

90386-18115-00

—
Out of stock

29

OIL SEAL (2J5)

93109-18020-00

1

$11.18

In stock

30

COLLAR (38M)

90387-126J8-00

—
Out of stock

31

BOLT (30X)

90109-10752-00

—
Out of stock

32

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

33

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

34

NIPPLE, GREASE

93700-06005-00

1

$10.92

In stock

35

BUSH, SOLID (22W)

90380-16109-00

—

$10.68

In stock

36

BUSH 2

22W-22124-00-00

—

$36.25

In stock

37

COLLAR (22W)

90387-106G0-00

—

$11.17

In stock

38

BOLT (22W)

90109-10689-00

—

$6.37

In stock

39

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

40

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

41

COVER, THRUST 2

22W-22129-00-00

—

$25.83

In stock

42

BOOT, RUBBER

22W-22189-00-00

1
Out of stock

43

BOOT, RUBBER

3RW-22189-00-00

—
Out of stock

44

ROD, CONNECTING 1

1KH-2217F-00-00

—
Out of stock

45

BUSH (26H)

90386-18115-00

—
Out of stock

46

OIL SEAL (2J5)

93109-18020-00

1

$11.18

In stock

47

COLLAR(38W)

90387-121L6-00

—
Out of stock

48

BOLT (30X)

90109-10752-00

—
Out of stock

49

WASHER, PLATE(6TC)

90201-10M05-00

—
Out of stock

50

NUT, SELF LOCKING (23X)

90185-10120-00

—
Out of stock

51

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock
