1998 Yamaha Serow CA (XT225KC) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1998 Yamaha Serow CA (XT225KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

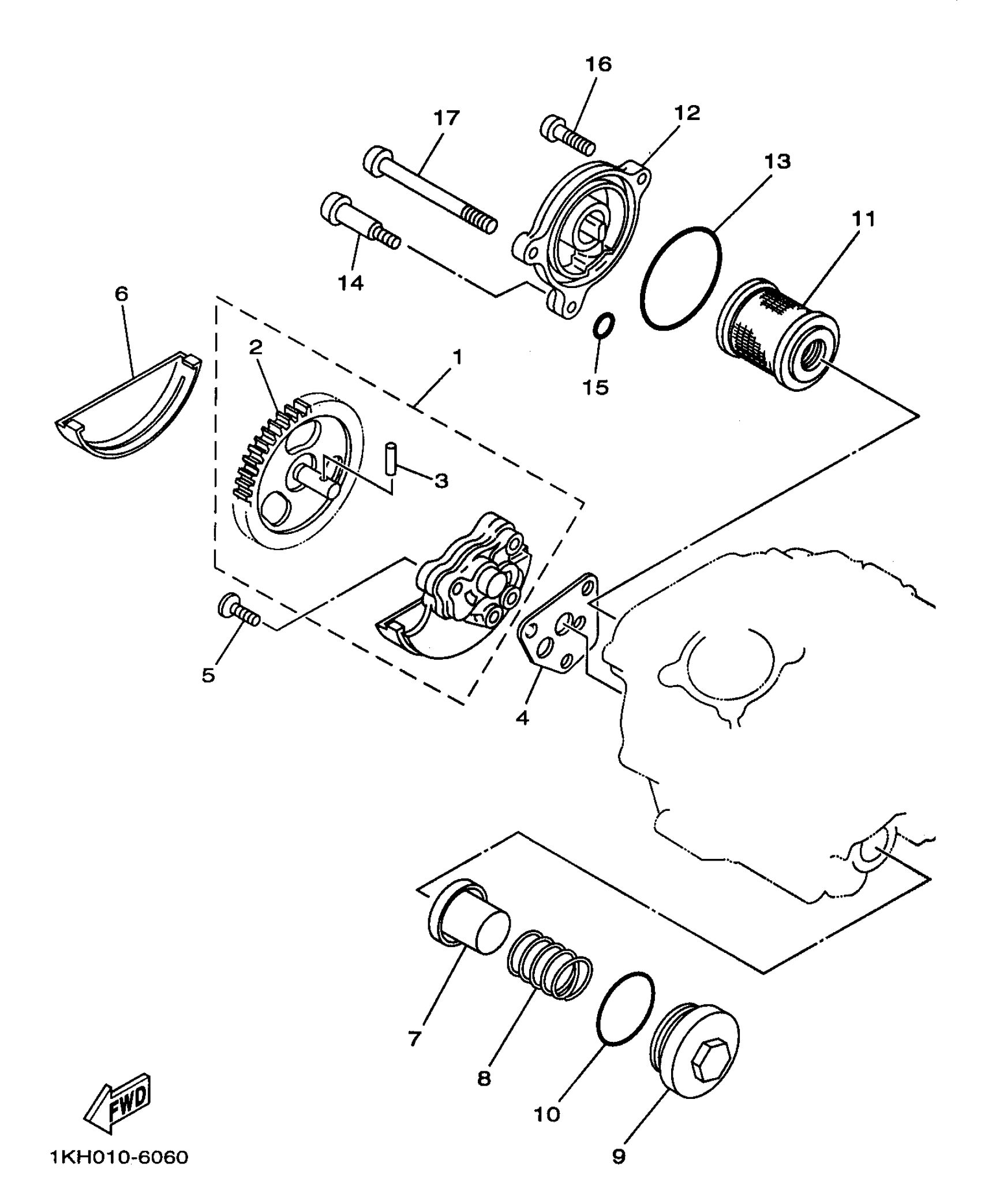

1998 Yamaha Serow CA (XT225KC) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

5H0-13300-02-00

1

$142.55

In stock

2

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

1

$35.78

In stock

3

PIN,DOWEL (137)

93603-12030-00

1

$1.88

In stock

4

GASKET, PUMP COVER

3GD-13329-00-00

1

$6.46

In stock

5

SCREW, FLAT

98707-06030-00

1

$6.08

In stock

6

COVER, PUMP GEAR

5H0-13327-00-00

—

$24.72

In stock

7

STRAINER, OIL

51Y-13411-00-00

1

$31.03

In stock

8

SPRING, COMPRESSION (3Y1)

90501-18576-00

1

$6.17

In stock

9

PLUG, DRAIN

5H0-15351-00-00

1
Out of stock

10

O-RING

93210-347A1-00

1

$5.72

In stock

11

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

12

COVER, OIL ELEMENT

3AW-13447-01-00

1
Out of stock

13

O-RING (341)

93210-54175-00

1

$11.80

In stock

14

BOLT (583 OIL DRAIN)

90109-06419-00

1

$6.17

In stock

15

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

1
Out of stock

16

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

17

SCREW, PAN

98507-06075-00

—

$5.60

In stock
