1998 Yamaha Serow CA (XT225KC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1998 Yamaha Serow CA (XT225KC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

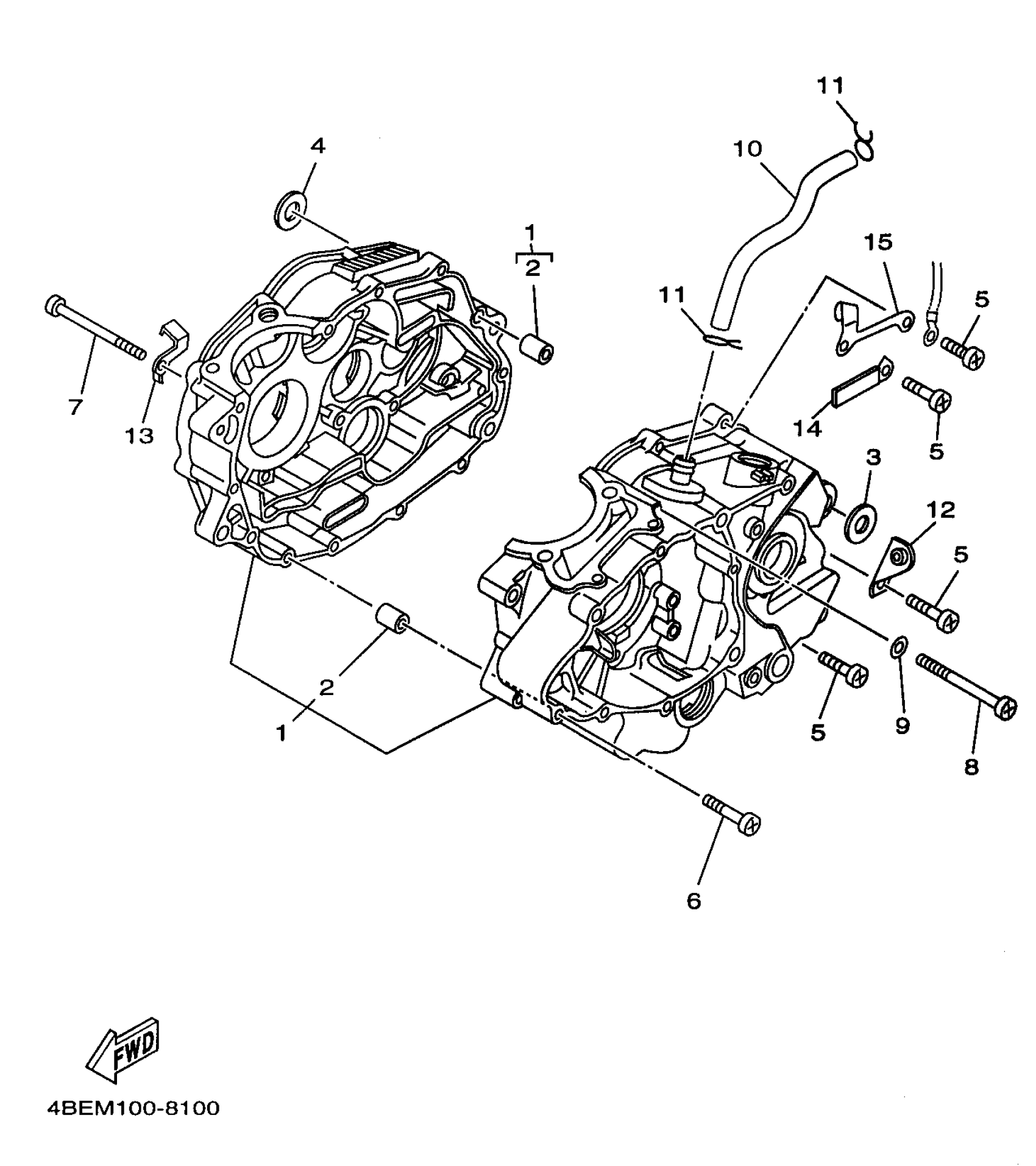

1998 Yamaha Serow CA (XT225KC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

3RW-15100-02-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

4

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

5

SCREW, PAN

98517-06030-00

1
Out of stock

6

SCREW, PAN

98507-06040-00

1

$2.25

In stock

7

SCREW, PAN

98507-06090-00

—

$7.02

In stock

8

SCREW, PAN

98507-06085-00

1

$5.17

In stock

9

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

10

PIPE, BREATHER 1

1KH-11166-01-00

1
Out of stock

11

CLIP (371)

90467-14015-00

1

$7.51

In stock

12

CLAMP (15A)

90465-08200-00

1

$3.98

In stock

13

CLAMP(3RW)

90462-08224-00

—

$3.60

In stock

14

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

15

HOLDER, CLUTCH CABLE

4JG-15441-02-00

—

$14.98

In stock
