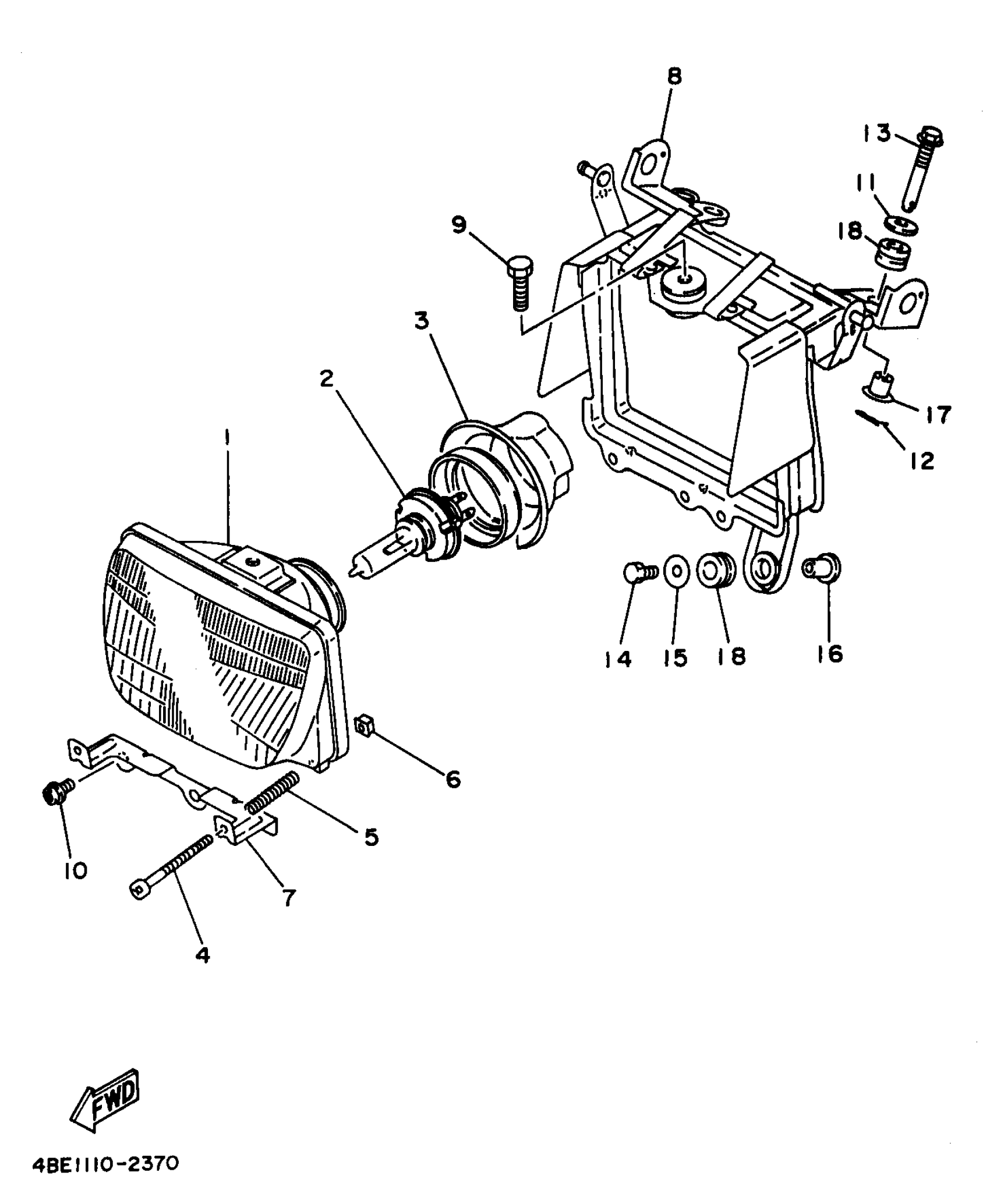

Yamaha XT225KC (SEROW CA) 1998 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSEMBLY

4BE-84320-00-00

Unavailable

2

BULB, HALOGEN (12V-35/35W HS1)

1FM-84314-H0-00

Unavailable

3

COVER, SOCKET

2F9-84397-01-00

$30.99

4

SCREW, RIM FITTING

3TB-84325-00-00

$5.49

5

SPRING, ADJUST

341-84332-60-00

$9.99

6

NUT, ADJUST

198-84334-60-00

$7.99

7

STAY, SETTING

3TB-8431R-00-00

Unavailable

8

BODY, HEADLIGHT

4BE-84311-00-00

Unavailable

9

BOLT, HEXAGON

3TB-84372-01-00

$2.13

10

BOLT, WING 1

3TB-84329-00-00

$1.46

11

WASHER PLATE 102283270000

90202-06013-00

Unavailable

12

CLIP (7R4)

90468-12120-00

$8.49

13

BOLT, SPECIAL

3TB-84137-00-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

WASHER, PLATE

90201-06557-00

$3.30

16

COLLAR

90387-06158-00

Unavailable

17

COLLAR 437216330000

90387-07391-00

Unavailable

18

GROMMET 839774310000

90480-14023-00

Unavailable
