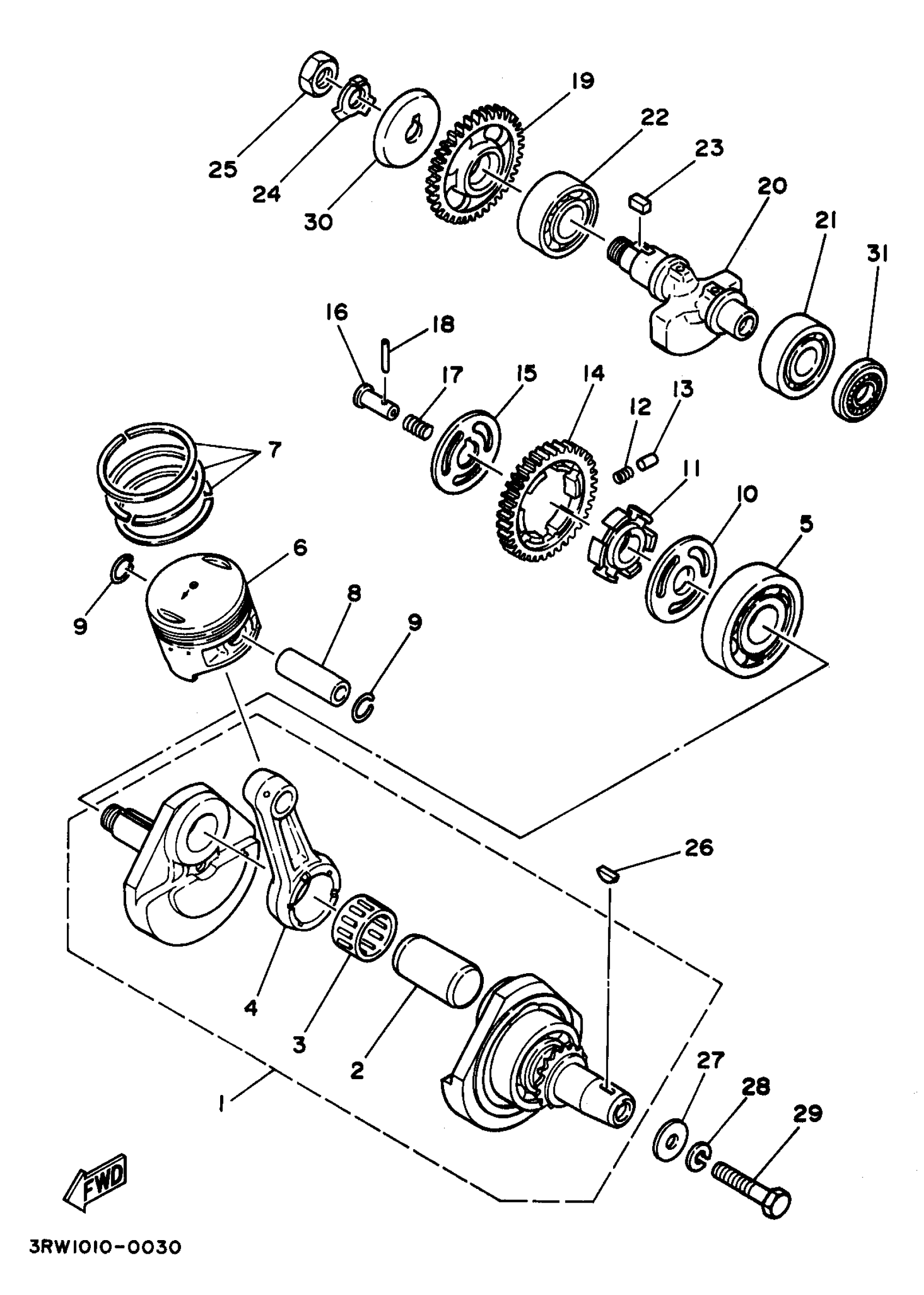

Yamaha XT225KC (SEROW CA) 1998 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

3RW-11400-01-00

$539.99

PIN, CRANK 1

5H0-11681-00-00

Unavailable

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$62.99

ROD, CONNECTING

29U-11651-00-00

$121.99

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

PISTON (STD)

1KH-11631-01-C0

$129.99

PISTON (0.50MM O/S)

1KH-11636-01-00

$123.99

PISTON (1.00MM O/S)

1KH-11638-01-00

$123.99

PISTON RING SET

29U-11610-00-00

$57.99

PISTON RING SET

29U-11610-20-00

$57.99

PISTON RING SET (STD)

4BD-11610-00-00

Unavailable

PIN, PISTON

58L-11633-00-00

$32.99

CIRCLIP (1L9)

93450-17044-00

$8.49

WASHER, PLATE (5H0)

90201-201E4-00

Unavailable

BOSS, BUFFER

5H0-11496-00-00

Unavailable

SPRING COMPRESSION341114880000

90501-21133-00

Unavailable

PIN, DOWEL

93605-10090-00

Unavailable

GEAR, DRIVE

5H0-11536-00-00

Unavailable

WASHER, CLAW (5H0)

90214-20023-00

Unavailable

PIN, CLEVIS (5H0)

90240-07083-00

Unavailable

SPRING, COMPRESSION (5H0)

90501-07629-00

Unavailable

PIN, DOWEL (5H0)

93602-13177-00

Unavailable

BALANCER WEIGHT GEAR COMP.

2LN-11530-00-00

Unavailable

WEIGHT 1

1KH-11454-00-00

Unavailable

BEARING

93306-20532-00

Unavailable

BEARING

93306-30443-00

Unavailable

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

WASHER, LOCK (15Y)

90215-14205-00

Unavailable

NUT (5H0)

90170-14284-00

Unavailable

KEY, WOODRUFF

90280-05001-00

Unavailable

WASHER, PLATE(52H)

90201-102J5-00

Unavailable

WASHER(6TA)

92907-10100-00

Unavailable

BOLT (341)

90101-10188-00

Unavailable

PLATE, BREATHER 2

1KH-11145-00-00

Unavailable

OIL SEAL (5Y1)

93101-25106-00

Unavailable
