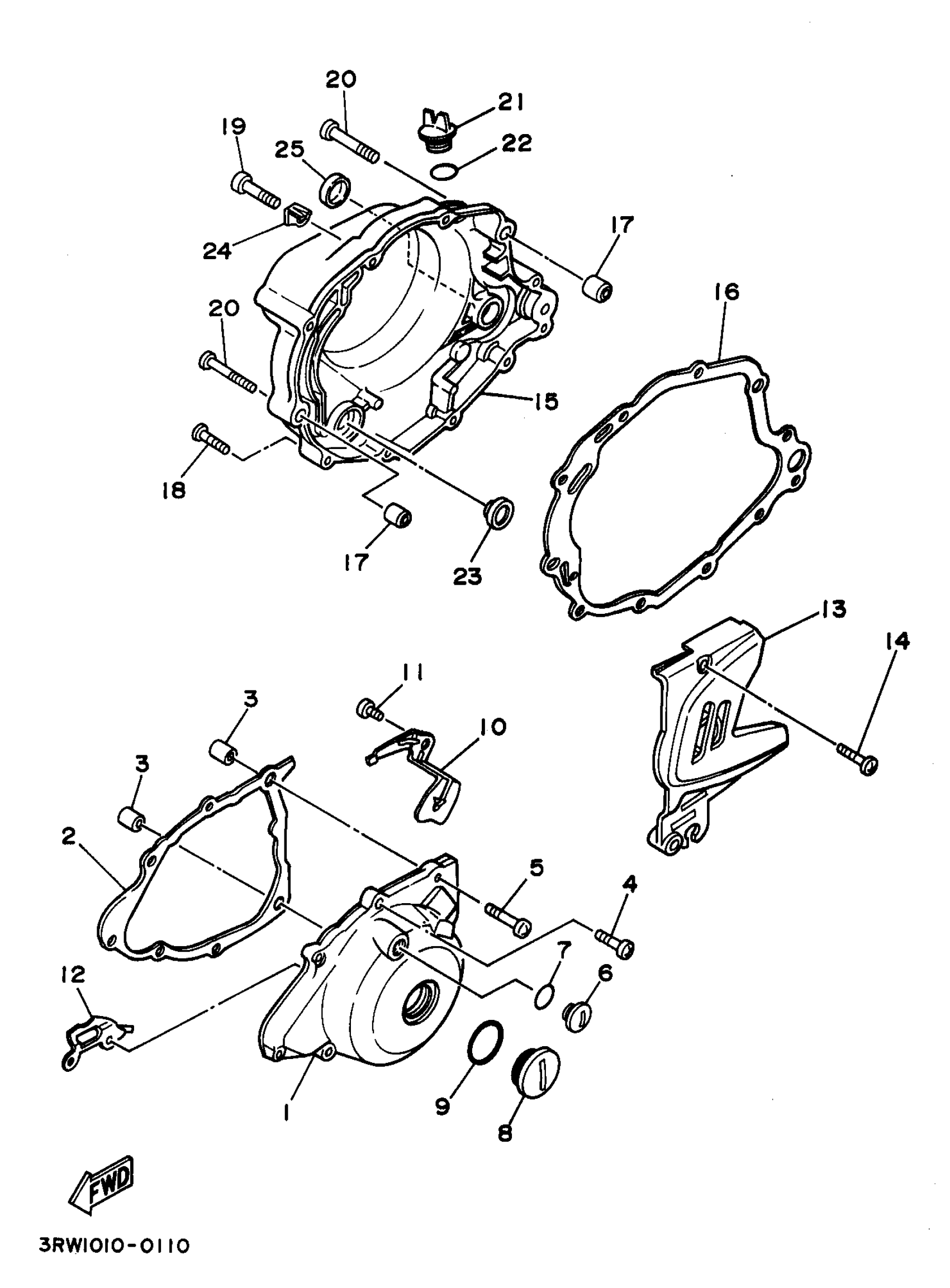

Yamaha XT225KC (SEROW CA) 1998 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4BE-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4BE-15451-03-00

$22.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

5

SCREW, PAN

98507-06035-00

$8.49

6

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$23.99

9

O-RING (341)

93210-32172-00

$7.49

10

CLAMP

90465-08300-00

Unavailable

11

SCREW, PAN

98507-06010-00

$3.55

12

CLAMP

90462-16096-00

Unavailable

13

CRANKCASE COVER ASSEMBLY 2

3RW-15420-00-00

Unavailable

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

COVER, CRANKCASE 3

3RW-15431-01-00

$136.99

16

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

17

PIN, DOWEL

99530-12016-00

$4.89

18

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

19

SCREW, PAN

98507-06035-00

$8.49

20

SCREW, PAN

98507-06045-00

Unavailable

21

PLUG, OIL

3Y1-15363-10-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

24

CLAMP(4AJ)

90462-08225-00

Unavailable

25

PLUG, BLIND 1

55X-15167-00-00

Unavailable
