Description

Price

1

HUB, FRONT

34X-25111-02-35

Unavailable

2

BEARING

93306-20205-00

$38.99

3

SPACER(1ET)

90560-15290-00

$18.99

4

OIL SEAL (23X)

93102-20281-00

$14.99

5

RIM (1.60-21)(2YY)

94416-21536-00

$456.99

6

SPOKE SET, FRONT

1KH-25104-00-00

$98.99

7

TIRE (MCS 2.75-21 4PR TW27)

94127-212X0-00

Unavailable

8

TUBE, FRONT (2A6)

94227-21123-00

$47.99

9

BAND, RIM (2A6)

94330-21084-00

$16.99

10

COLLAR (1W1)

90387-15600-00

$18.99

11

COVER, HUB DUST

322-25118-00-00

$17.49

12

WASHER, PLATE(33Y)

90201-164H4-00

$9.49

13

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

14

AXLE, WHEEL

34X-25181-00-00

Unavailable

15

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

16

PIN, COTTER

91490-30030-00

Unavailable

17

GEAR UNIT ASSY

34X-25190-01-00

Unavailable

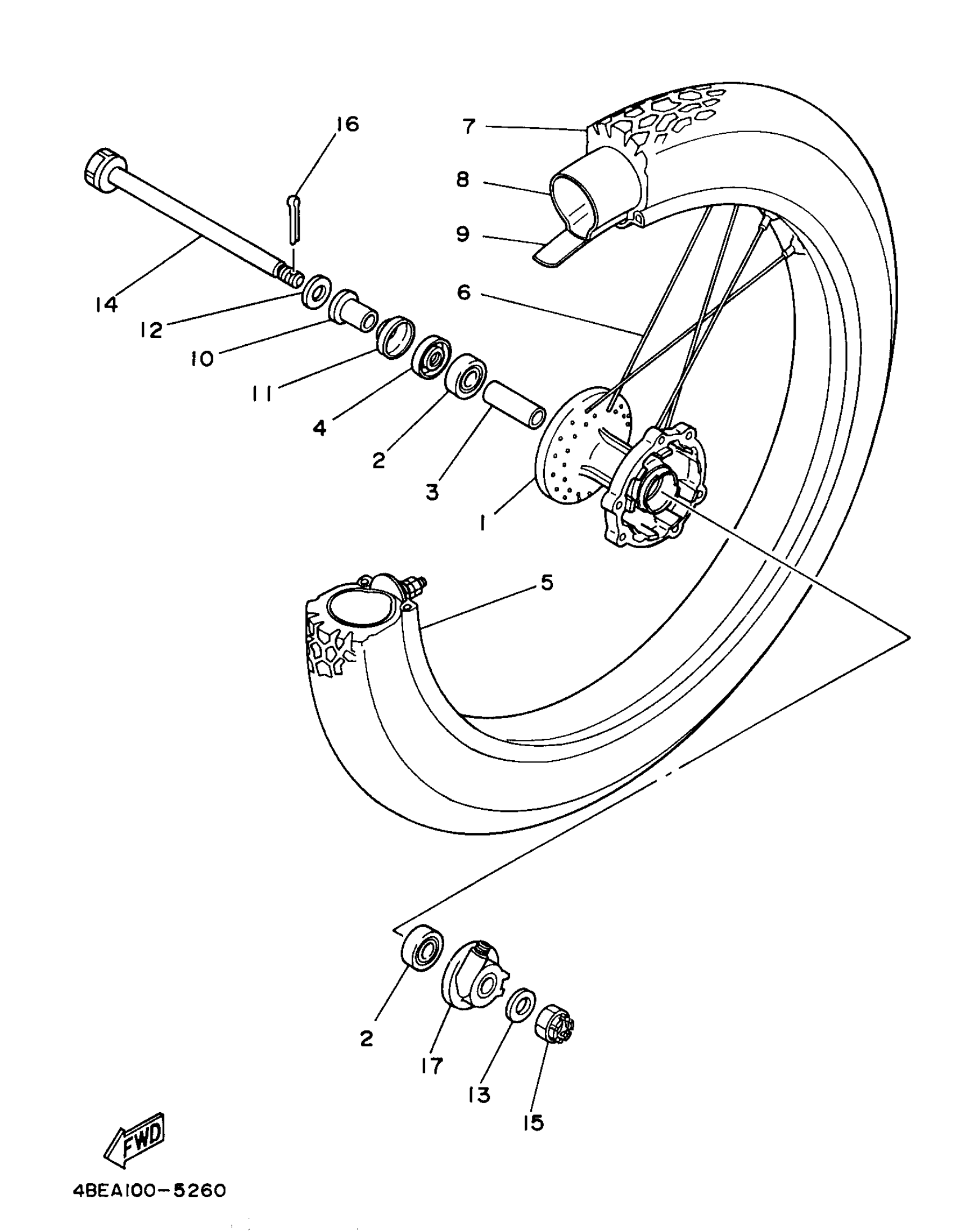

Yamaha XT225JC (SEROW CA) 1997 FRONT WHEEL Diagram

HUB, FRONT

BEARING

SPACER(1ET)

OIL SEAL (23X)

RIM (1.60-21)(2YY)

SPOKE SET, FRONT

TIRE (MCS 2.75-21 4PR TW27)

TUBE, FRONT (2A6)

BAND, RIM (2A6)

COLLAR (1W1)

COVER, HUB DUST

WASHER, PLATE(33Y)

WASHER, PLATE (3Y2)

AXLE, WHEEL

NUT, CASTLE(2UJ)

PIN, COTTER

GEAR UNIT ASSY
