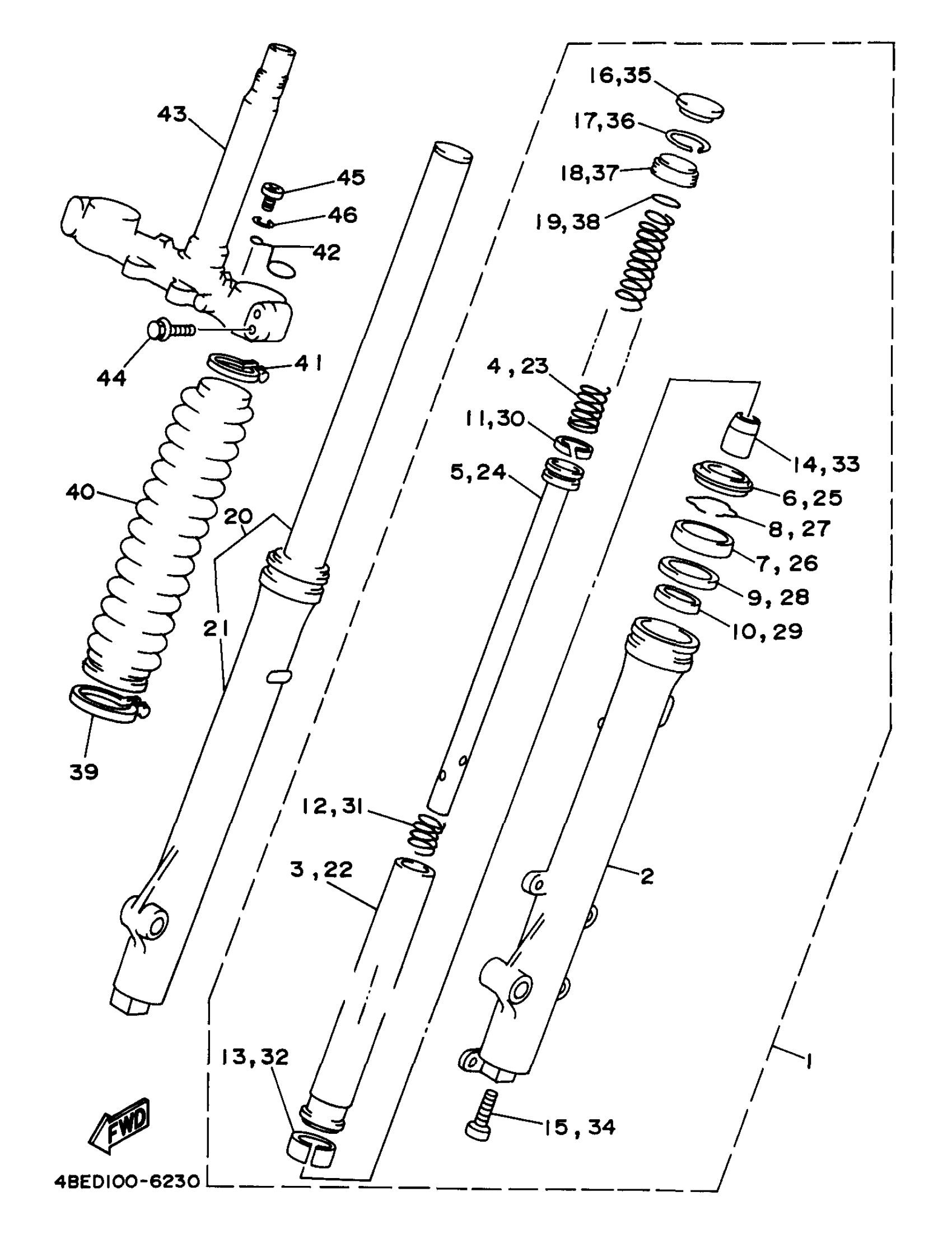

Yamaha XT225JC (SEROW CA) 1997 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

3RW-23102-70-00

Unavailable

2

TUBE, OUTER (LEFT)

3RW-23126-00-00

Unavailable

3

. INNER TUBE COMP 1

3RW-23110-01-00

Unavailable

4

. SPRING

3RW-23351-00-00

Unavailable

5

. PISTON, FRONT FORK

4JG-23171-01-00

Unavailable

6

SEAL, DUST

1KH-23144-00-00

$30.99

7

OIL SEAL

1KH-23145-00-00

$28.99

8

CLIP, OIL SEAL

34X-23156-00-00

$8.99

9

O-RING

1KH-23147-00-00

$25.99

10

METAL, SLIDE 1

34X-23125-00-00

Unavailable

11

RING, PISTON

4JG-23157-00-00

Unavailable

12

SPRING, REBOUND

34X-23151-00-00

Unavailable

13

METAL, SLIDE 2

34X-23135-00-00

$22.99

14

. SPACER, OIL LOCK

4JG-23166-00-00

Unavailable

15

BOLT

3M7-23181-00-00

$8.99

16

CAP, FRONT FORK

35E-23168-00-00

Unavailable

17

CIRCLIP

35E-23183-00-00

Unavailable

18

BOLT, CAP

35E-23111-00-00

Unavailable

19

O-RING(1HX)

93210-24709-00

Unavailable

20

FRONT FORK ASSEMBLY (R.H)

3RW-23103-70-00

Unavailable

21

TUBE, OUTER (RIGHT)

3RW-23136-00-00

Unavailable

22

. INNER TUBE COMP 1

3RW-23110-01-00

Unavailable

23

. SPRING

3RW-23351-00-00

Unavailable

24

. PISTON, FRONT FORK

4JG-23171-01-00

Unavailable

25

SEAL, DUST

1KH-23144-00-00

$30.99

26

OIL SEAL

1KH-23145-00-00

$28.99

27

CLIP, OIL SEAL

34X-23156-00-00

$8.99

28

O-RING

1KH-23147-00-00

$25.99

29

METAL, SLIDE 1

34X-23125-00-00

Unavailable

30

RING, PISTON

4JG-23157-00-00

Unavailable

31

SPRING, REBOUND

34X-23151-00-00

Unavailable

32

METAL, SLIDE 2

34X-23135-00-00

$22.99

33

. SPACER, OIL LOCK

4JG-23166-00-00

Unavailable

34

BOLT

3M7-23181-00-00

$8.99

35

CAP, FRONT FORK

35E-23168-00-00

Unavailable

36

CIRCLIP

35E-23183-00-00

Unavailable

37

BOLT, CAP

35E-23111-00-00

Unavailable

38

O-RING(1HX)

93210-24709-00

Unavailable

39

BAND

3RW-23192-00-00

Unavailable

40

BOOT

3RW-23191-20-00

Unavailable

41

BAND

34X-23192-00-00

Unavailable

42

GUIDE, CABLE

10V-2331E-02-00

Unavailable

43

UNDER BRACKET COMP.

1RF-23340-00-00

Unavailable

44

BOLT, FLANGE(3EF)

95024-08035-00

Unavailable

45

SCREW, PAN

98517-06012-00

Unavailable

46

WASHER, SPRING

92907-06100-00

Unavailable
