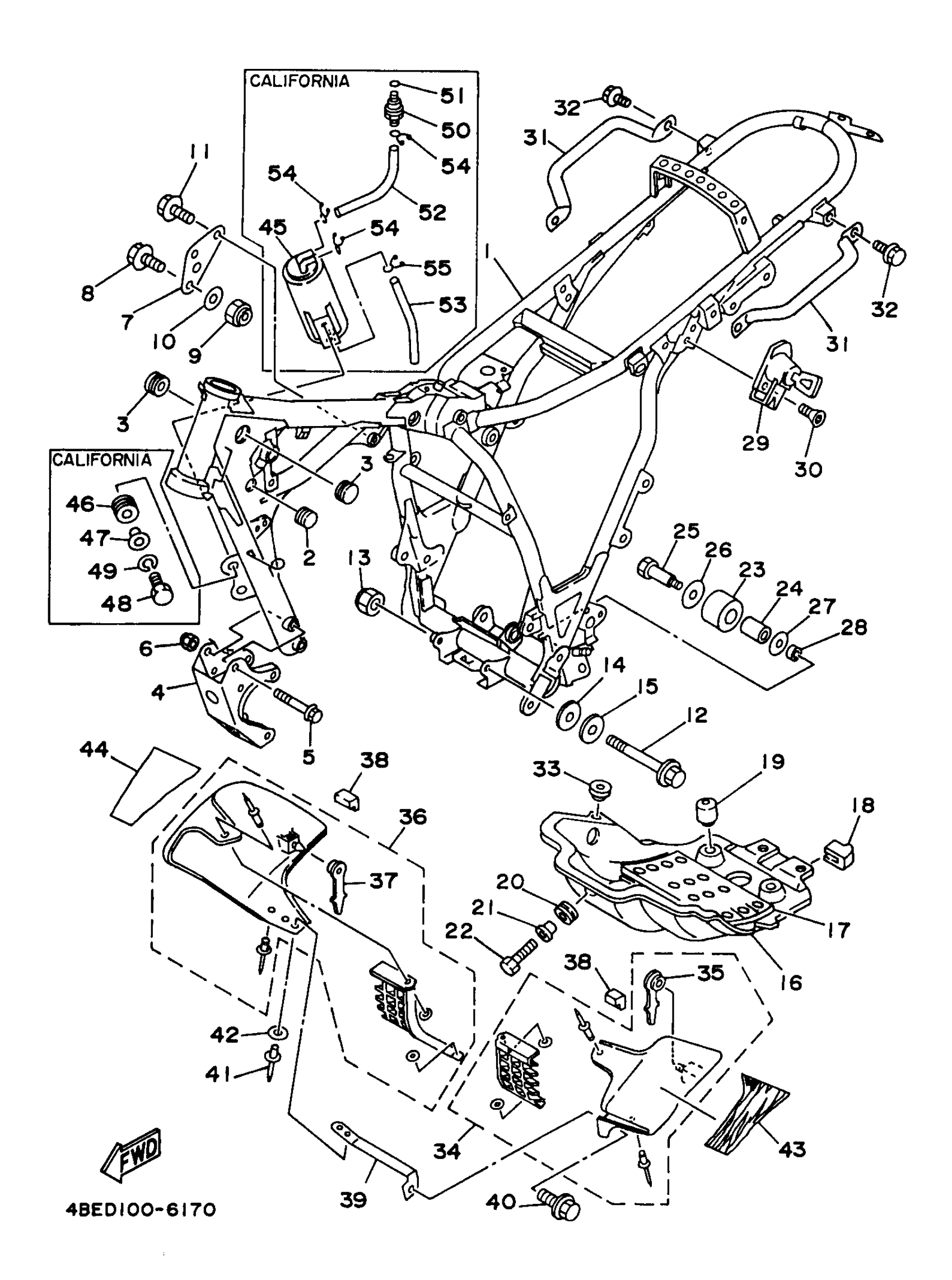

Yamaha XT225JC (SEROW CA) 1997 FRAME Diagram
#
1
FRAME COMP.
4BE-21110-21-G3
Unavailable
1
FRAME
4FD-21110-11-G3
Unavailable
4
STAY, ENGINE 3
3RW-21316-01-G3
Unavailable
4
STAY, ENGINE
4BE-21316-00-G3
Unavailable
7
STAY, ENGINE 2
1KH-21315-01-00
Unavailable
11
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
15
WASHER, BELLEVILLE
92907-08800-00
Unavailable
16
PROTECTOR, ENGINE
4VW-21471-00-00
Unavailable
17
DAMPER, RUBBER 1
1KH-21485-00-00
Unavailable
18
DAMPER, RUBBER 1
36X-21485-00-00
Unavailable
19
DAMPER, RUBBER 1
34L-21485-00-00
Unavailable
20
GROMMET 839774310000
90480-14023-00
Unavailable
21
COLLAR 437216330000
90387-07391-00
Unavailable
22
BOLT, HEXAGON
97017-06025-00
Unavailable
23
TENSIONER
30X-22178-00-00
Unavailable
24
BUSH
4V4-22184-00-00
Unavailable
25
BOLT (23X)
90109-08705-00
Unavailable
26
WASHER, PLATE(3RR)
90201-133P2-00
Unavailable
27
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
28
COLLAR (7R4)
90387-085E1-00
Unavailable
29
HELMET HANGER ASSY
5H0-21308-01-00
Unavailable
30
SCREW, COUNTERSUNK (21V)
90151-06025-00
Unavailable
31
HANDLE, STANDING
4JG-21165-20-00
Unavailable
32
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
33
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
Unavailable
34
SCOOP COMP. AIR 1
3RW-W2131-10-00
Unavailable
35
GROMMET(1KH)
90480-14448-00
Unavailable
36
SCOOP COMP. AIR 2
4BE-W2132-00-00
Unavailable
37
GROMMET(1KH)
90480-14448-00
Unavailable
38
GROMMET
90480-16185-00
Unavailable
39
BRACKET, COVER
4BE-2139T-00-00
Unavailable
40
BOLT, WITH WASHER
90119-06242-00
Unavailable
41
RIVET,BLIND
90267-40080-00
Unavailable
42
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
43
GRAPHIC
4BE-24244-30-00
Unavailable
44
GRAPHIC
4BE-24245-30-00
Unavailable
45
CANISTER ASSY
4BE-24170-00-00
Unavailable
46
GROMMET(56R)
90480-15342-00
Unavailable
47
COLLAR(52E)
90387-063G3-00
Unavailable
48
BOLT, HEXAGON
97017-06025-00
Unavailable
49
WASHER, SPRING
92907-06100-00
Unavailable
50
ROLL OVER VALVE ASSY
20K-24180-00-00
Unavailable
51
O-RING (4G0)
93210-11453-00
Unavailable
52
HOSE (L200)
90445-10752-00
Unavailable
53
HOSE (L210)
90445-110F5-00
Unavailable
54
CLIP
90467-090A2-00
Unavailable
55
CLIP(1JH)
90467-11106-00
Unavailable
