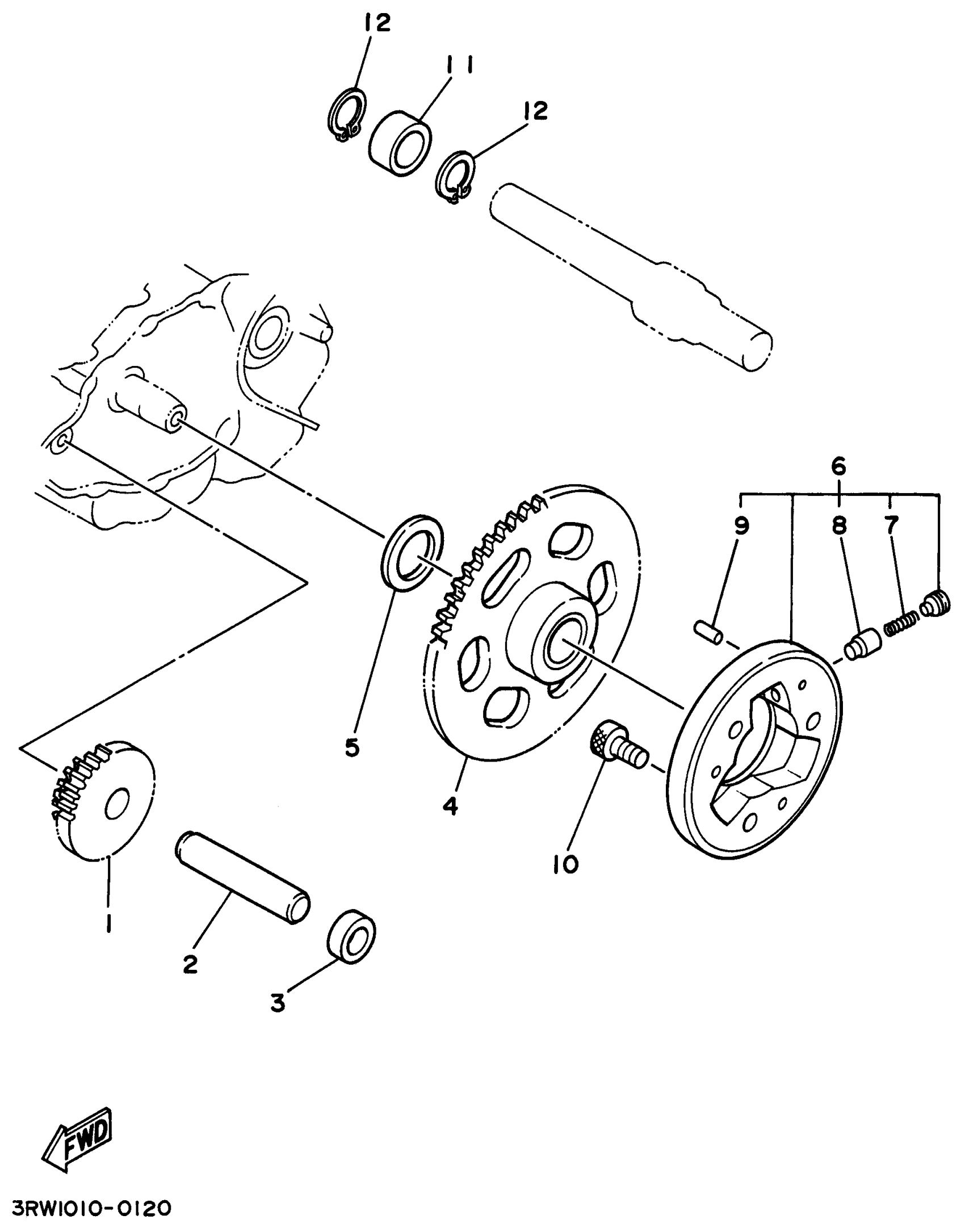

Yamaha XT225HC (SEROW CA) 1996 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

2HT-15512-00-00

Unavailable

2

SHAFT 1

5H0-15521-00-00

Unavailable

3

COLLAR(19W)

90387-125Y0-00

$14.05

4

GEAR, IDLER 2

5H0-15517-00-00

$147.85

5

WASHER, PLATE(1FK)

90201-256K6-00

$3.49

6

STARTER CLUTCH OUTER ASSY

4H7-15580-10-00

$155.03

7

SPRING, COMPRESSION (4H7)

90501-04596-00

$6.86

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$16.33

9

PIN,DOWEL(341)

93615-12088-00

$5.63

10

BOLT, SOCKET

91317-08016-00

$6.17

11

SPACER(3RW)

90560-17368-00

$6.37

12

CIRCLIP(1EY)

99009-17400-00

$3.91
