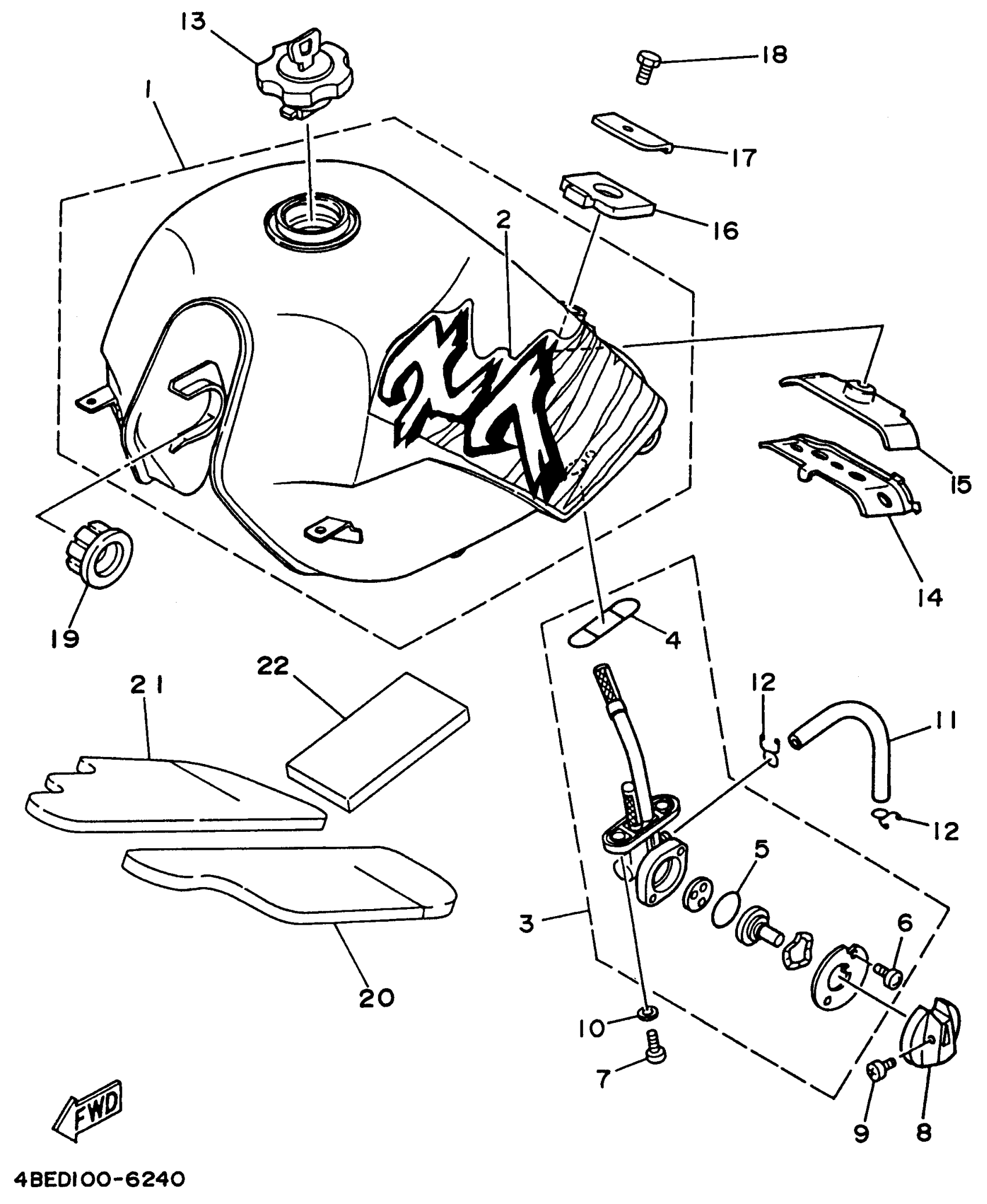

Yamaha XT225HC (SEROW CA) 1996 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (WHITE)

3RW-24110-00-W2

Unavailable

1

FUEL TANK COMP. (WHITE)

4BE-24110-00-06

Unavailable

2

. GRAPHIC SET

4BE-24240-20-00

Unavailable

3

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

4

O-RING

4X8-24512-00-00

$8.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

SCREW 256241430000

90149-06011-00

$5.60

8

LEVER, COCK

1YH-F4524-00-00

Unavailable

9

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

HOSE (L200)

90445-10752-00

$4.99

12

CLIP

90467-090A2-00

$4.41

13

CAP ASSY

11H-24602-10-00

$101.99

13

CAP ASSY

51K-24602-10-00

Unavailable

14

WASHER, SPECIAL

1KH-24187-00-00

Unavailable

15

DAMPER, LOCATING 2

1KH-24182-00-00

Unavailable

16

DAMPER, LOCATING 3

30X-24183-01-00

Unavailable

17

WASHER, SPECIAL

30X-24186-01-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

20

DAMPER, PLATE 1

3RW-2414H-00-00

Unavailable

21

DAMPER, PLATE 2

3RW-2414J-00-00

Unavailable

22

DAMPER

11H-21747-00-00

Unavailable
