Description

Price

1

SHIFT LEVER ASSY

5H0-18120-02-00

$108.99

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION(1KH)

90508-26705-00

$9.49

4

CIRCLIP

99006-10600-00

$9.49

5

COLLAR

90387-12033-00

$7.49

6

WASHER

90201-12588-00

$7.49

7

PIN, DOWEL (4H7)

93608-50158-00

$8.49

8

SEAL, OIL (30X)

93102-12321-00

$12.49

9

SHIFT PEDAL ASSY

1KH-18110-00-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

NUT(JN5)

95317-06700-00

$8.49

13

ROD, SHIFT

16G-18115-00-00

Unavailable

14

NUT (2H9)

90170-06228-00

$9.49

15

ARM, SHIFT

1KH-18112-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

Unavailable

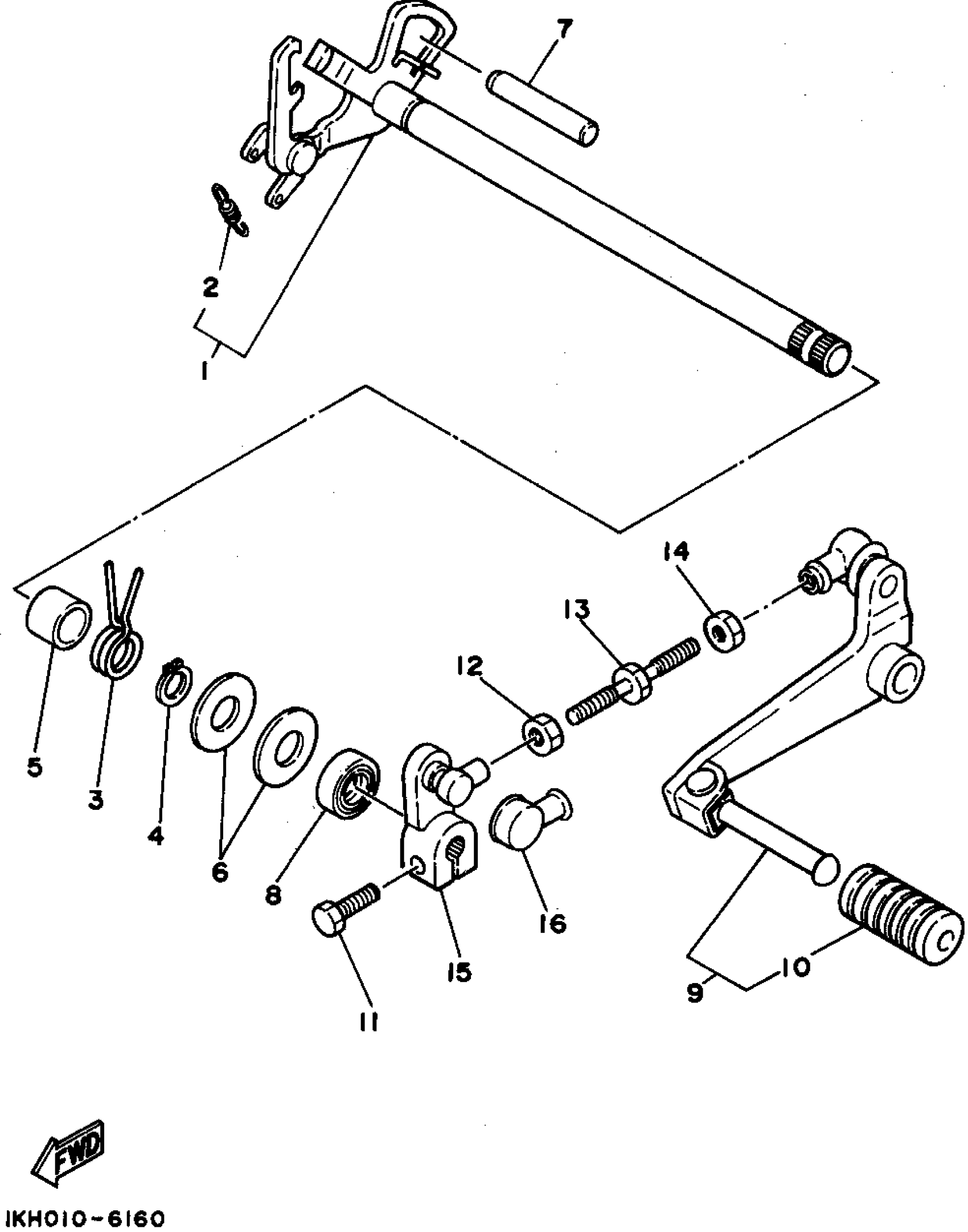

Yamaha XT225GC (SEROW CA) 1995 SHIFTER Diagram

SHIFT LEVER ASSY

SPRING, TENSION (4H7)

SPRING, TORSION(1KH)

CIRCLIP

COLLAR

WASHER

PIN, DOWEL (4H7)

SEAL, OIL (30X)

SHIFT PEDAL ASSY

COVER, CHANGE PEDAL

BOLT, HEXAGON

NUT(JN5)

ROD, SHIFT

NUT (2H9)

ARM, SHIFT

COVER, DUST
