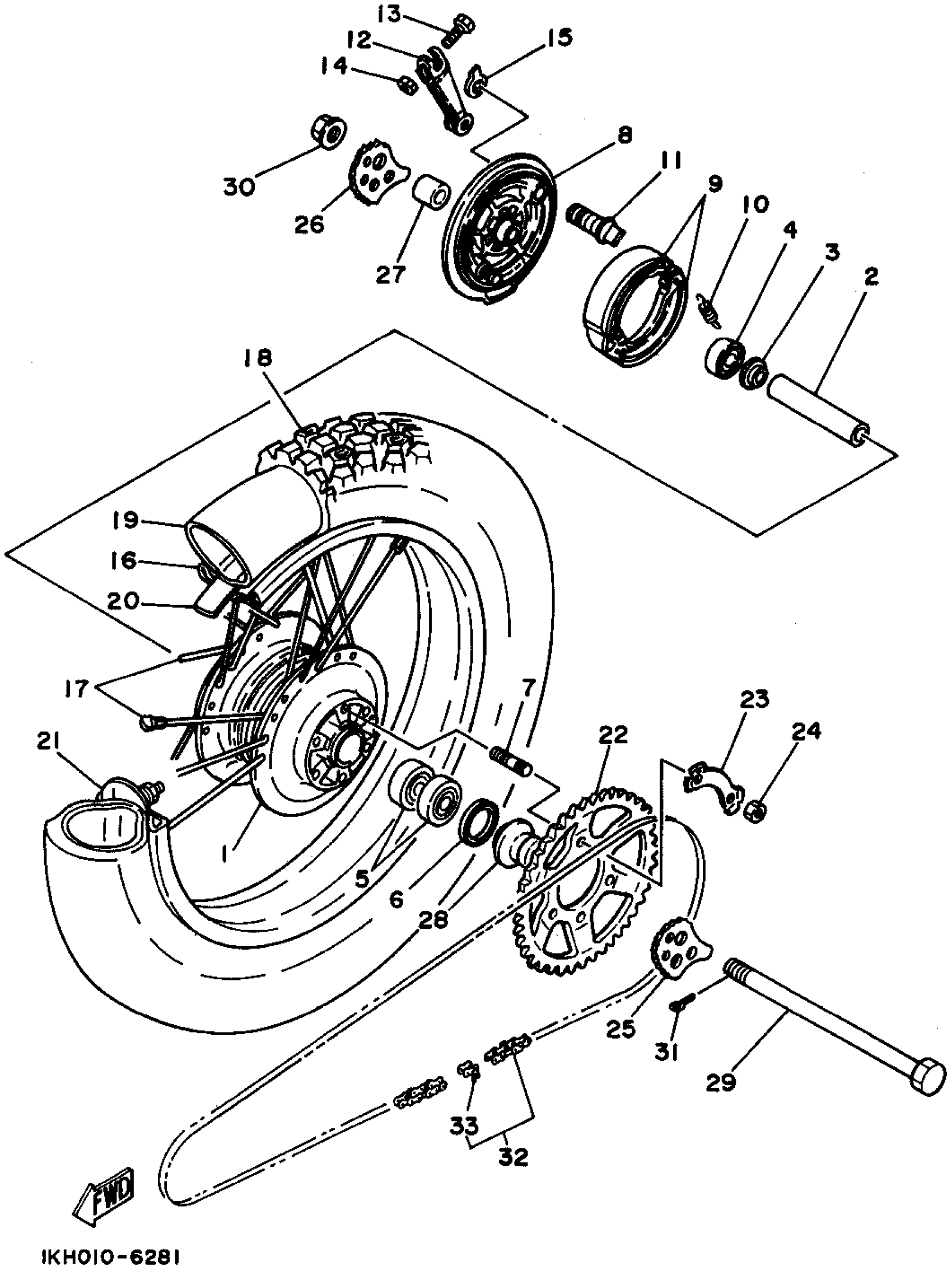

Yamaha XT225GC (SEROW CA) 1995 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

15A-25311-00-35

Unavailable

2

SPACER

90560-15313-00

$46.99

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (22X35X5)

93104-22018-00

$11.49

7

BOLT, STUD (483)

90116-08218-00

$8.49

8

PLATE, BRAKE SHOE

15A-25321-04-35

Unavailable

9

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

10

SPRING, TENSION

90506-15260-00

$8.49

11

CAMSHAFT

4GL-25351-00-00

$68.99

12

LEVER, CAMSHAFT

5R0-25355-10-00

Unavailable

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT(6TA)

95317-06600-00

$3.55

15

PLATE, INDICATOR

4H7-2533A-02-00

$8.99

16

RIM (2.15-18)(1KH)

94421-18426-00

Unavailable

17

SPOKE SET, REAR

23J-25304-00-00

Unavailable

18

TIRE (120/80-18 M/C 62P TW30)

94112-182X1-00

Unavailable

19

TUBE (3R9)

94241-18153-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER, BEAD

3Y1-25394-00-00

Unavailable

22

GEAR SPROCKET WHEEL (45T)

1KH-25445-00-00

Unavailable

23

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

24

NUT (3Y2)

90170-08258-00

Unavailable

25

PULLER, CHAIN 1

5H0-25388-00-00

Unavailable

26

PULLER, CHAIN 2

5MP-25389-00-00

Unavailable

27

COLLAR(1KH)

90387-151R1-00

Unavailable

28

COLLAR, WHEEL

1KH-25383-01-00

Unavailable

29

AXLE, WHEEL

99999-04097-00

Unavailable

30

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

CHAIN (DID428-120L)

9Y581-33119-00

Unavailable

33

JOINT, CHAIN (DID428V2-FJ,1KH)

94681-33011-00

Unavailable
