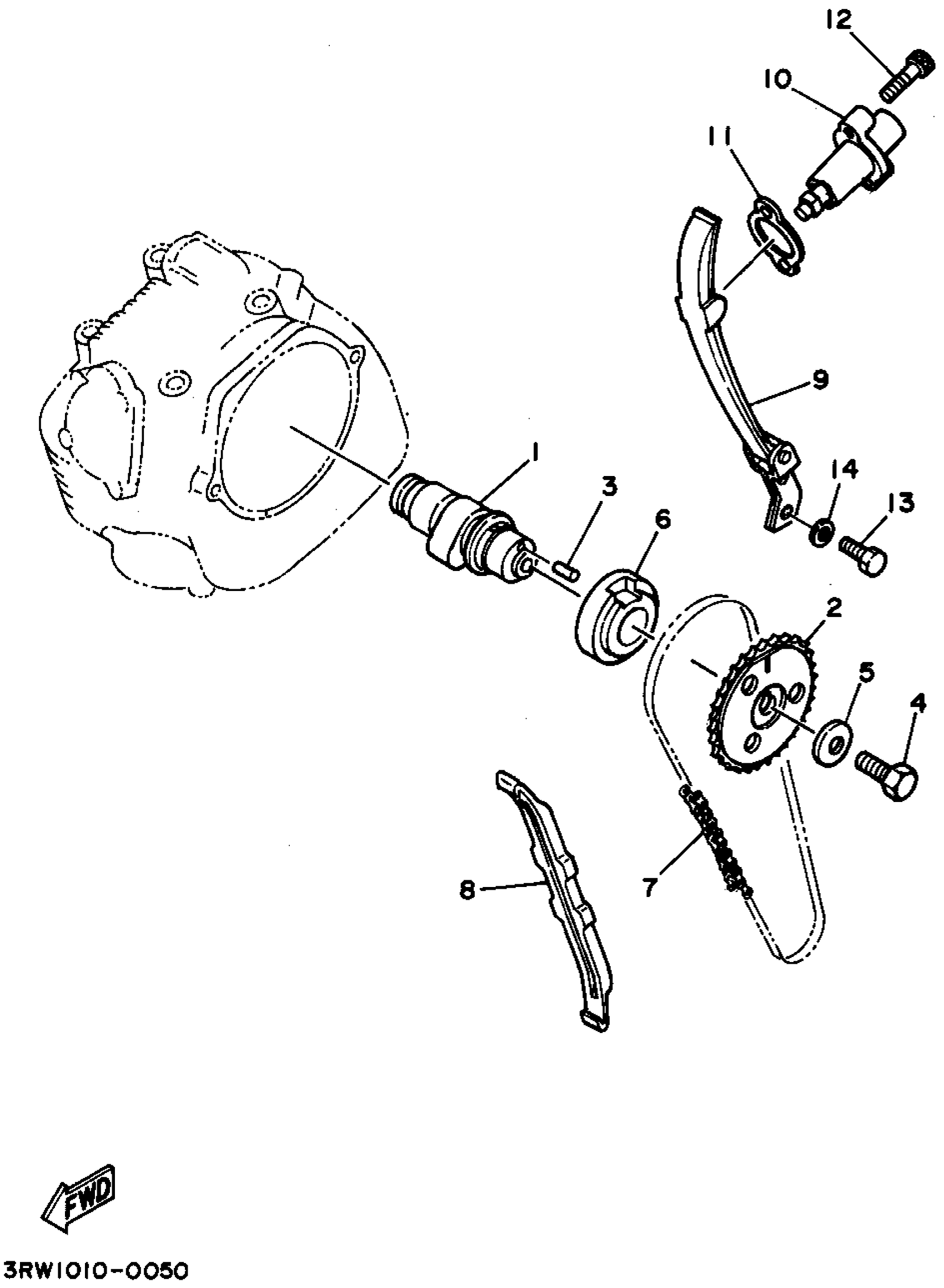

Yamaha XT225GC (SEROW CA) 1995 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

1KH-12171-01-00

$161.99

2

SPROCKET, CAM CHAIN

2LN-12176-01-00

Unavailable

3

PIN,DOWEL (603)

93604-10011-00

$8.49

4

BOLT (583)

90101-10303-00

$9.49

5

WASHER, PLATE (3L6)

90201-10774-00

$9.49

6

COLLAR (15A)

90387-255F3-00

$45.99

7

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

8

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

9

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

10

TENSIONER ASSY, CAM CHAIN

2HT-12210-10-00

$157.99

11

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT, HEXAGON

97017-06016-00

$8.49

14

WASHER(6TA)

92907-06600-00

$2.72
