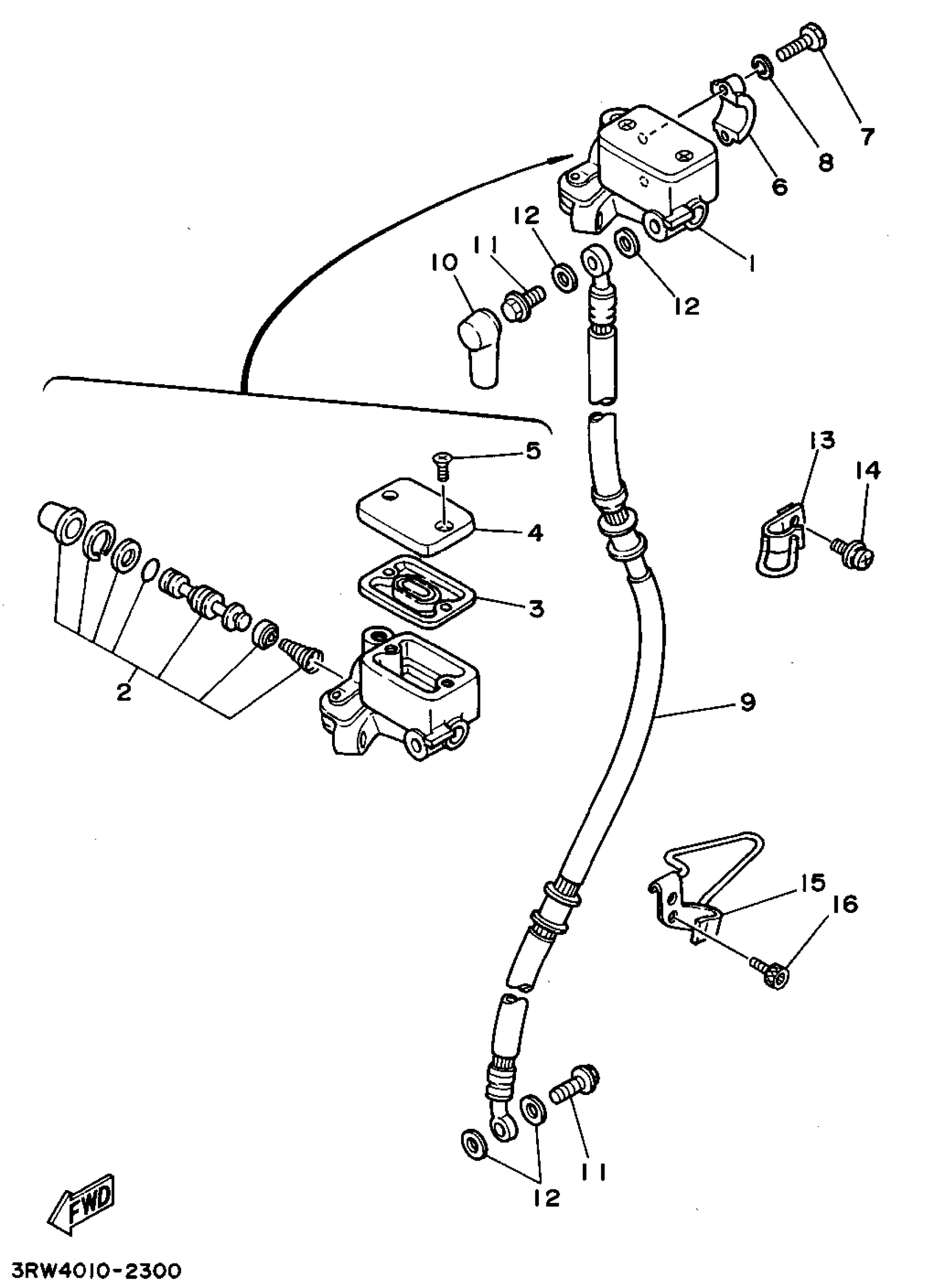

Yamaha XT225FC (SEROW CA) 1994 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

4GY-25870-02-00

Unavailable

CYLINDER KIT, MAST

5RS-25807-03-00

$40.99

GASKET, DIAPHRAGM

3RW-25854-00-00

Unavailable

CAP, RESERVOIR

4GY-25852-01-00

$41.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

BRAKE HOSE SET(3RW)

99999-02491-00

Unavailable

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 1

3RW-25875-00-00

Unavailable

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

HOLDER, BRAKE HOSE 2

34X-25876-00-00

Unavailable

BOLT,SOCKET

91317-06010-00

Unavailable
