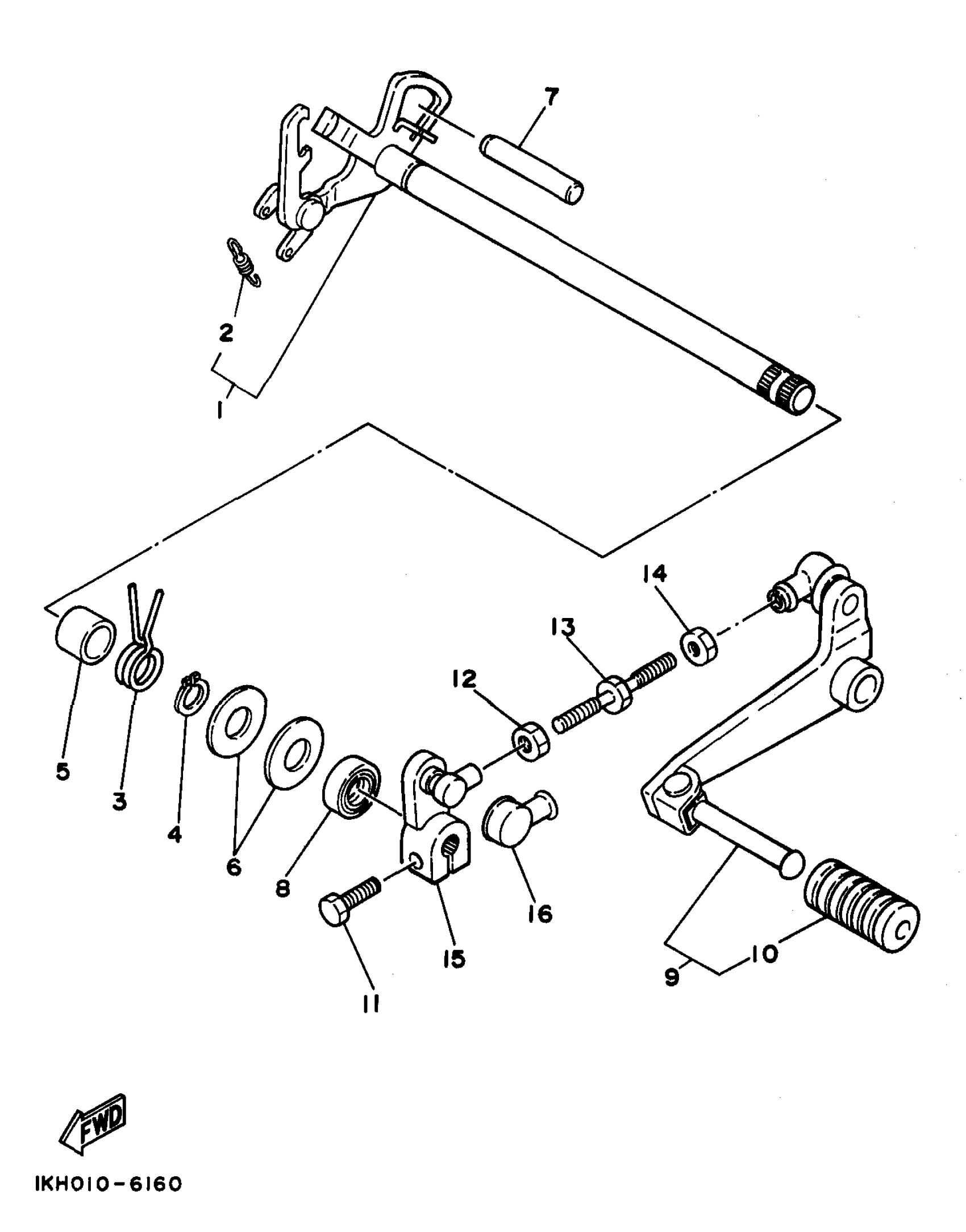

Yamaha XT225EC (SEROW CA) 1993 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT LEVER ASSY

5H0-18120-02-00

$108.99

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION(1KH)

90508-26705-00

$9.49

4

CIRCLIP

99006-10600-00

$9.49

5

COLLAR

90387-12033-00

$7.49

6

WASHER

90201-12588-00

$7.49

7

PIN, DOWEL (4H7)

93608-50158-00

$8.49

8

SEAL, OIL (30X)

93102-12321-00

$12.49

9

SHIFT PEDAL ASSY

1KH-18110-00-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

NUT(JN5)

95317-06700-00

$8.49

13

ROD, SHIFT

16G-18115-00-00

Unavailable

14

NUT (2H9)

90170-06228-00

$9.49

15

ARM, SHIFT

1KH-18112-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

Unavailable
