1993 Yamaha Serow CA (XT225EC) Shift CAM Fork Diagram

← All diagrams

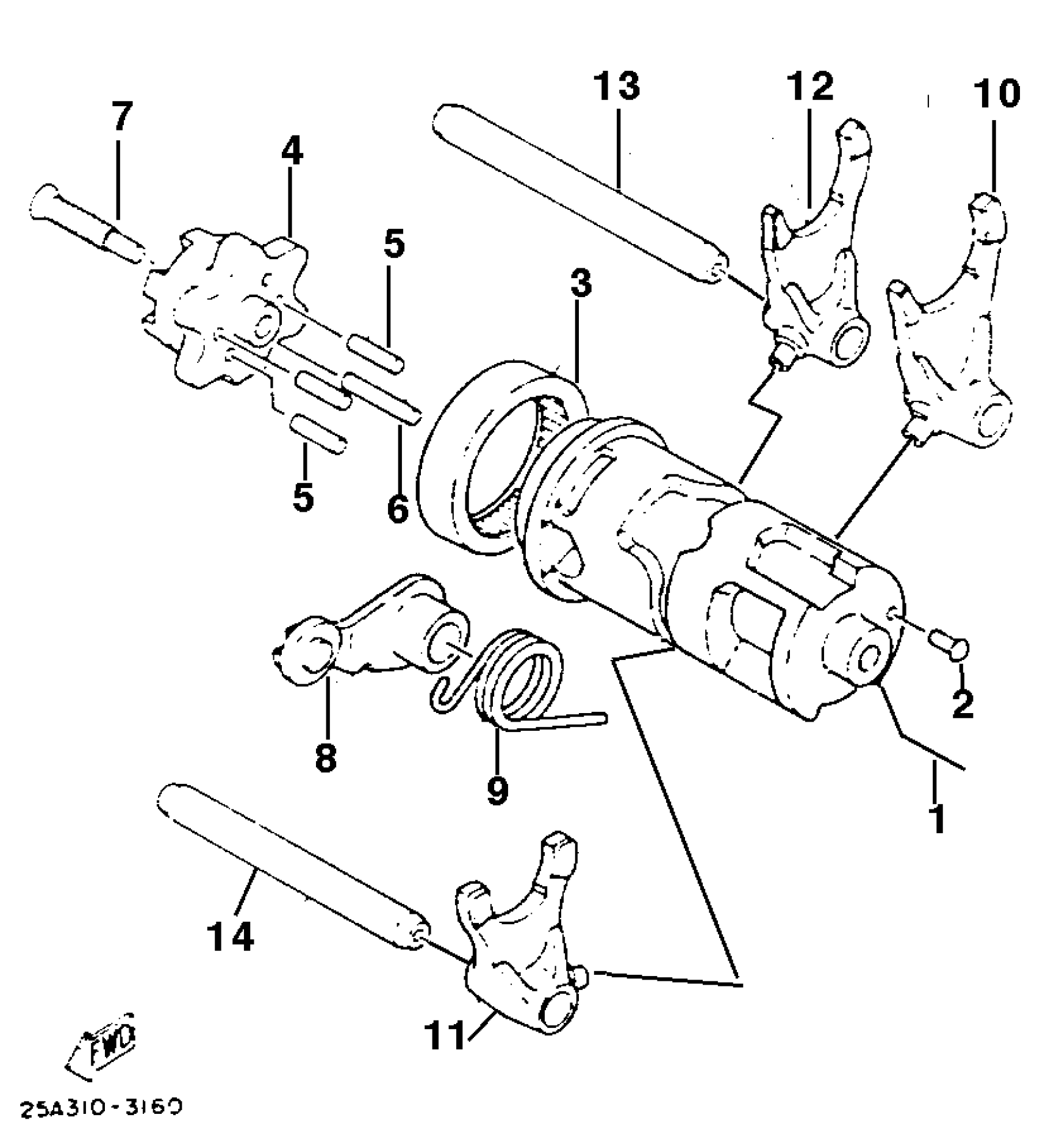

Find the part on the Shift CAM Fork diagram for your 1993 Yamaha Serow CA (XT225EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha Serow CA (XT225EC) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

17T-18540-01-00

1
Out of stock

2

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock

3

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

4

SEGMENT

1RH-18185-00-00

1

$55.45

In stock

5

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

6

PIN, DOWEL (4H7)

93604-20156-00

1

$2.22

In stock

7

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

8

STOPPER LEVER ASSY

1RH-18140-00-00

1

$27.05

In stock

9

SPRING, TORSION (15A)

90508-26539-00

1

$7.45

In stock

10

FORK, SHIFT 3

4JG-18513-00-00

—
Out of stock

11

FORK, SHIFT 1

4JG-18511-00-00

—
Out of stock

12

FORK, SHIFT 2

4JG-18512-01-00

—

$88.92

In stock

13

BAR, SHIFT FORK GUIDE 1

5H0-18531-00-00

1
Out of stock

14

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

—

$12.32

In stock
