1993 Yamaha Serow CA (XT225EC) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1993 Yamaha Serow CA (XT225EC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

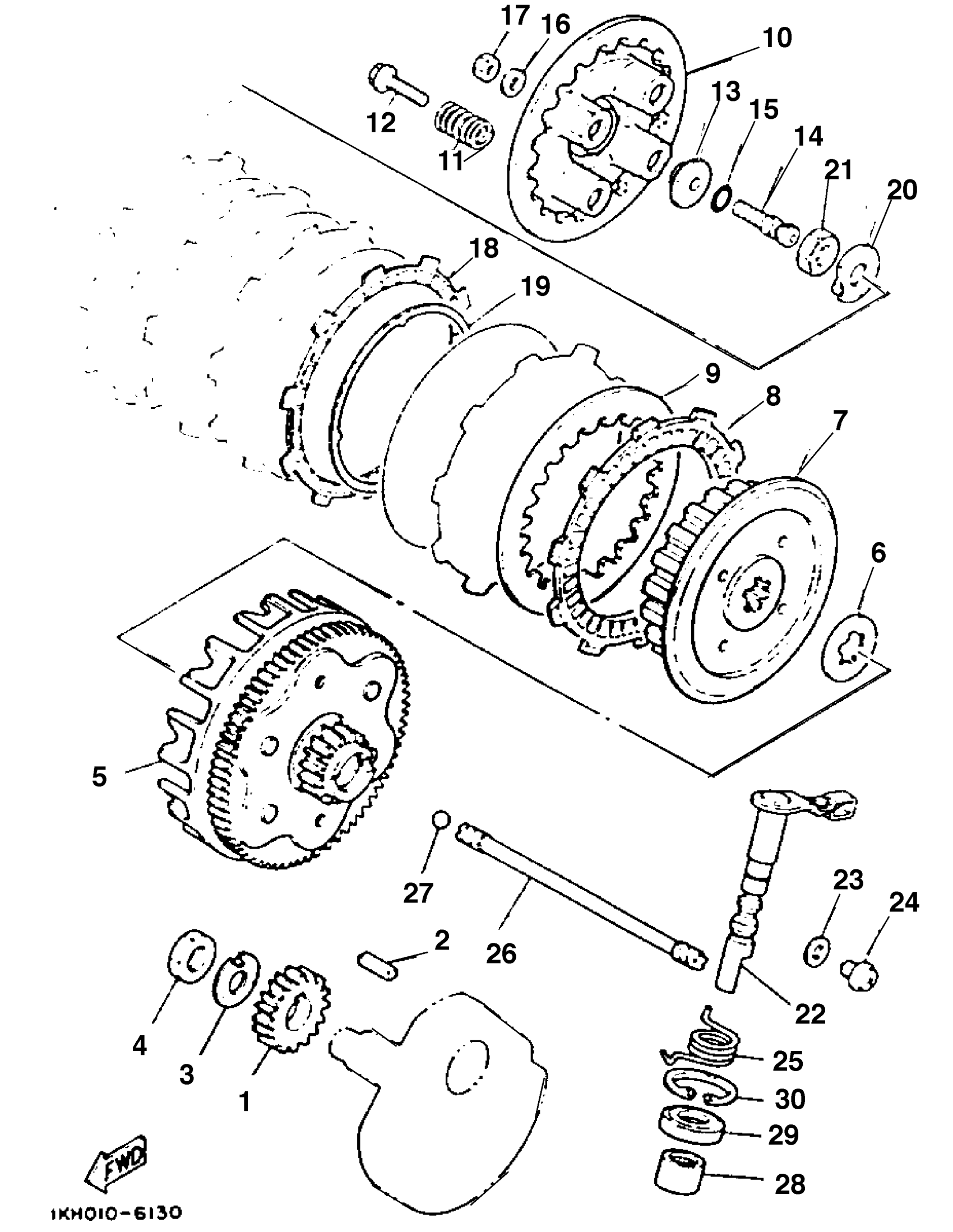

1993 Yamaha Serow CA (XT225EC) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—

$38.65

In stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1

$8.26

In stock

3

WASHER, LOCK (15Y)

90215-14205-00

1

$4.70

In stock

4

NUT (5H0)

90170-14284-00

1

$7.92

In stock

5

PRIMARY DRIVEN GEAR COMP.

1KH-16150-00-00

1

$357.69

In stock

6

PLATE, THRUST 1

2LN-16154-00-00

1

$26.77

In stock

7

BOSS, CLUTCH

2LN-16371-00-00

1

$148.72

In stock

8

PLATE, FRICTION

537-16321-00-00

1

$15.04

In stock

9

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

10

PLATE, PRESSURE 1

5H0-16351-00-00

1

$37.03

In stock

11

SPRING, COMPRESSION

90501-23700-00

1

$5.68

In stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1

$2.45

In stock

13

PLATE, PUSH

1W1-16358-01-00

1

$20.06

In stock

14

ROD, PUSH 1

1HX-16356-00-00

1
Out of stock

15

O-RING (2H7)

93210-48364-00

1

$6.17

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

PLATE, FRICTION

36X-16321-00-00

—

$15.88

In stock

19

SPRING, CLUTCH BOSS

1KH-16383-00-00

—

$35.31

In stock

20

WASHER, LOCK (25G)

90215-14186-00

—

$7.83

In stock

21

NUT (5H0)

90170-14284-00

1

$7.92

In stock

22

PUSH LEVER ASSEMBLY

1KH-16380-01-00

1
Out of stock

23

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

24

SCREW 425163430000

90149-08067-00

—

$4.54

In stock

25

SPRING, TORSION

90508-16708-00

1
Out of stock

26

ROD, PUSH 2

5H0-16357-00-00

—

$31.57

In stock

27

BALL

93505-16006-00

—

$2.22

In stock

28

—

$31.43

In stock

29

OIL SEAL (3Y1)

93102-14209-00

—

$9.77

In stock

30

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock
