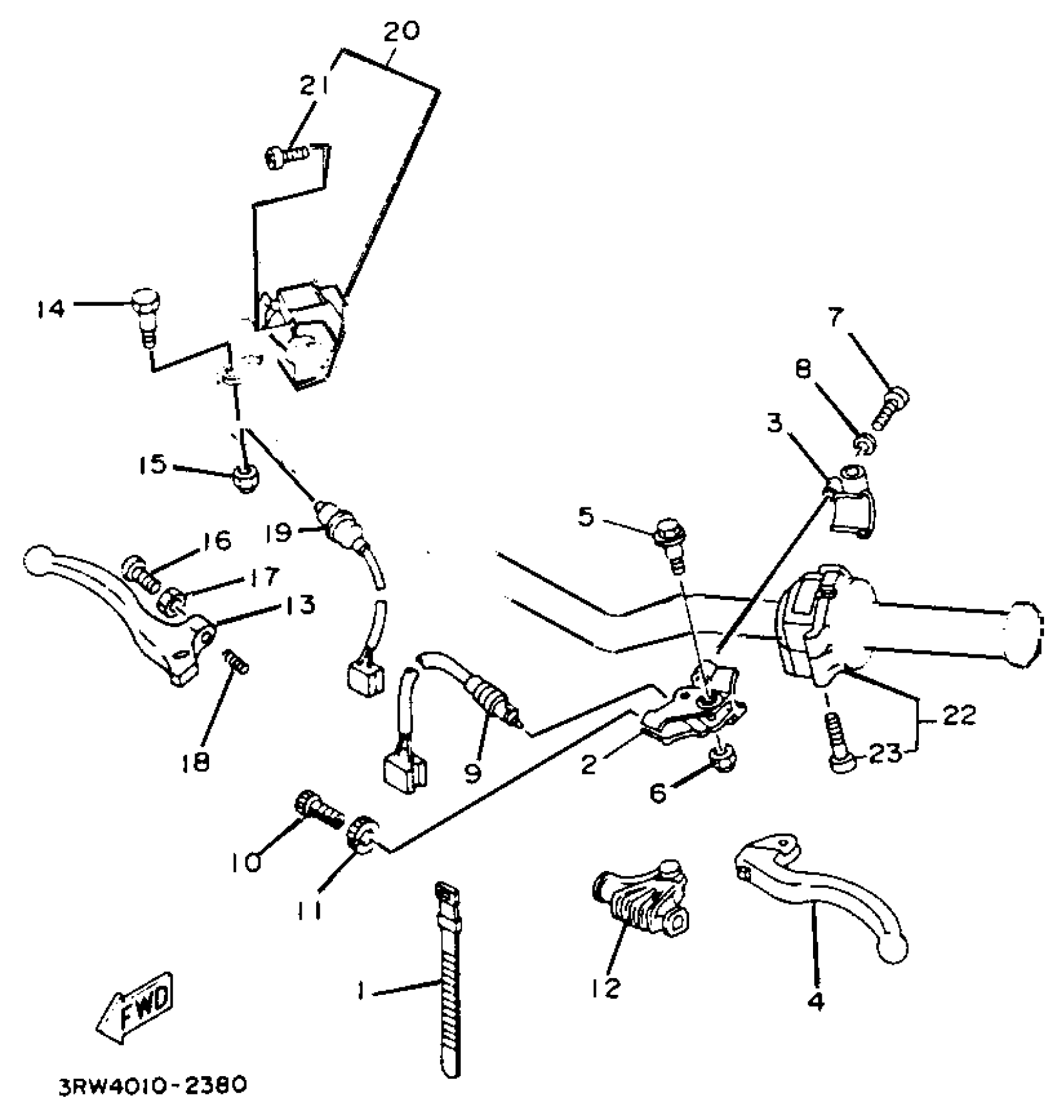

Yamaha XT225EC (SEROW CA) 1993 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

BAND, SWITCH CORD

437-83936-01-00

$7.99

2

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

3

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

4

LEVER 1

1NV-83912-02-00

$28.99

5

BOLT (2YK1)

90109-06799-00

$4.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

WASHER(3SX)

92907-05100-00

$8.49

9

SWITCH

3Y6-82917-00-00

Unavailable

10

BOLT

90123-08002-00

$10.49

11

NUT

90179-08030-00

$5.49

12

COVER, LEVER

1E6-26372-00-00

$23.99

13

LEVER 2

3YR-83922-02-00

$27.99

14

BOLT (4L0)

90109-06577-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SCREW (2L0)

90149-06131-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

18

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

19

FRONT STOP SWITCH ASSY

3YF-83980-00-00

Unavailable

20

SWITCH, HANDLE 2

4DW-83975-11-00

Unavailable

21

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

22

SWITCH, HANDLE 3

3RW-83973-11-00

Unavailable

23

SCREW, PAN

98517-06030-00

Unavailable
