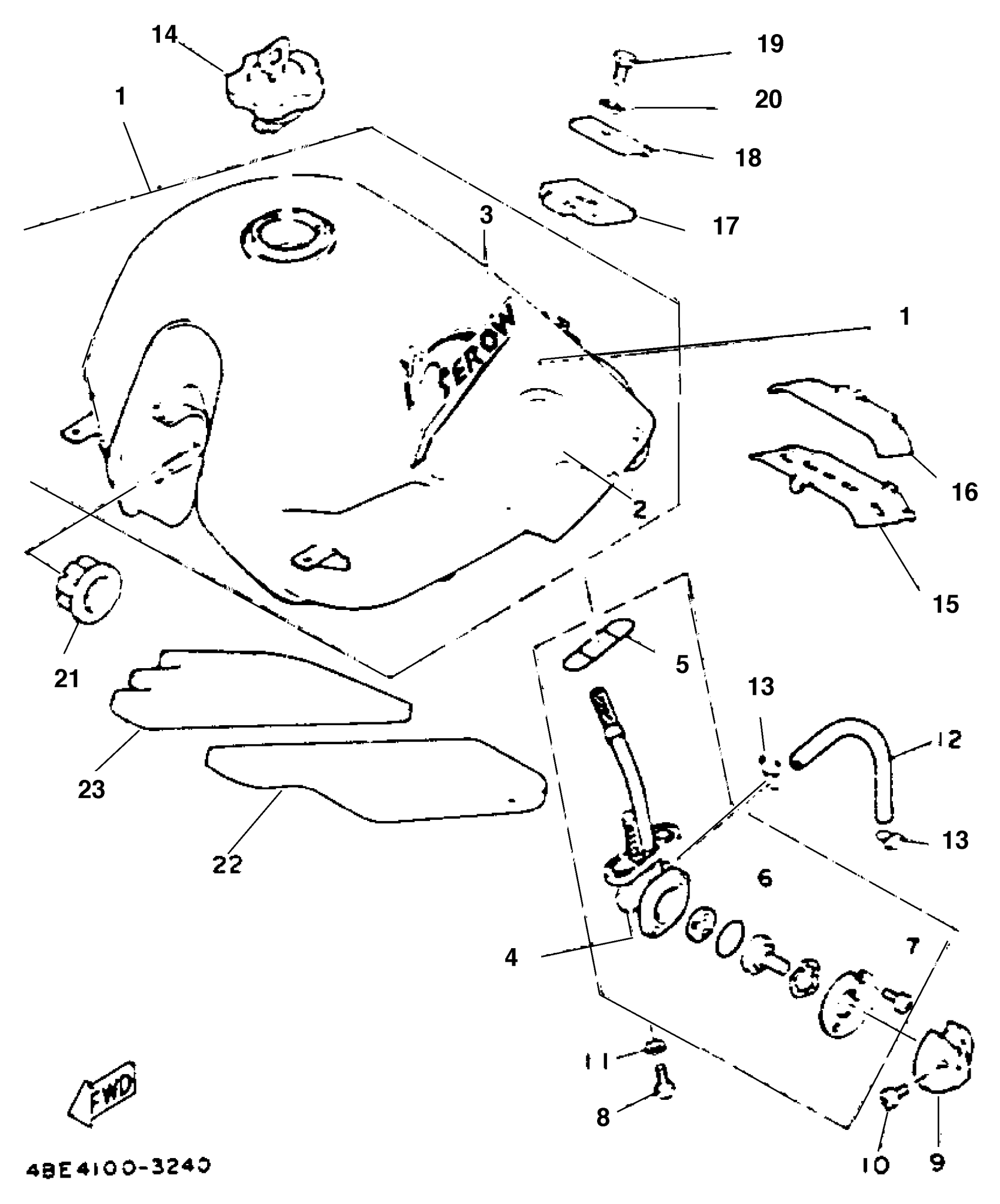

Yamaha XT225EC (SEROW CA) 1993 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3RW-24110-00-08

Unavailable

1

FUEL TANK

4BE-24110-00-03

Unavailable

2

. GRAPHIC SET

3RW-24240-70-00

Unavailable

3

. GRAPHIC SET

3RW-24250-70-00

Unavailable

4

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

5

O-RING

4X8-24512-00-00

$8.99

6

SEAL, COCK

3AJ-24534-01-00

$10.99

7

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

8

SCREW 256241430000

90149-06011-00

$5.60

9

LEVER, COCK

1YH-F4524-00-00

Unavailable

10

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

11

WASHER, PLATE(3MB)

90202-05187-00

$1.38

12

HOSE (L200)

90445-10752-00

$4.99

13

CLIP

90467-090A2-00

$4.41

14

CAP ASSY

11H-24602-10-00

$101.99

14

CAP ASSY

51K-24602-10-00

Unavailable

15

WASHER, SPECIAL

1KH-24187-00-00

Unavailable

16

DAMPER, LOCATING 2

1KH-24182-00-00

Unavailable

17

DAMPER, LOCATING 3

30X-24183-01-00

Unavailable

18

WASHER, SPECIAL

30X-24186-01-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

22

DAMPER, PLATE 1

3RW-2414H-00-00

Unavailable

23

DAMPER, PLATE 2

3RW-2414J-00-00

Unavailable
