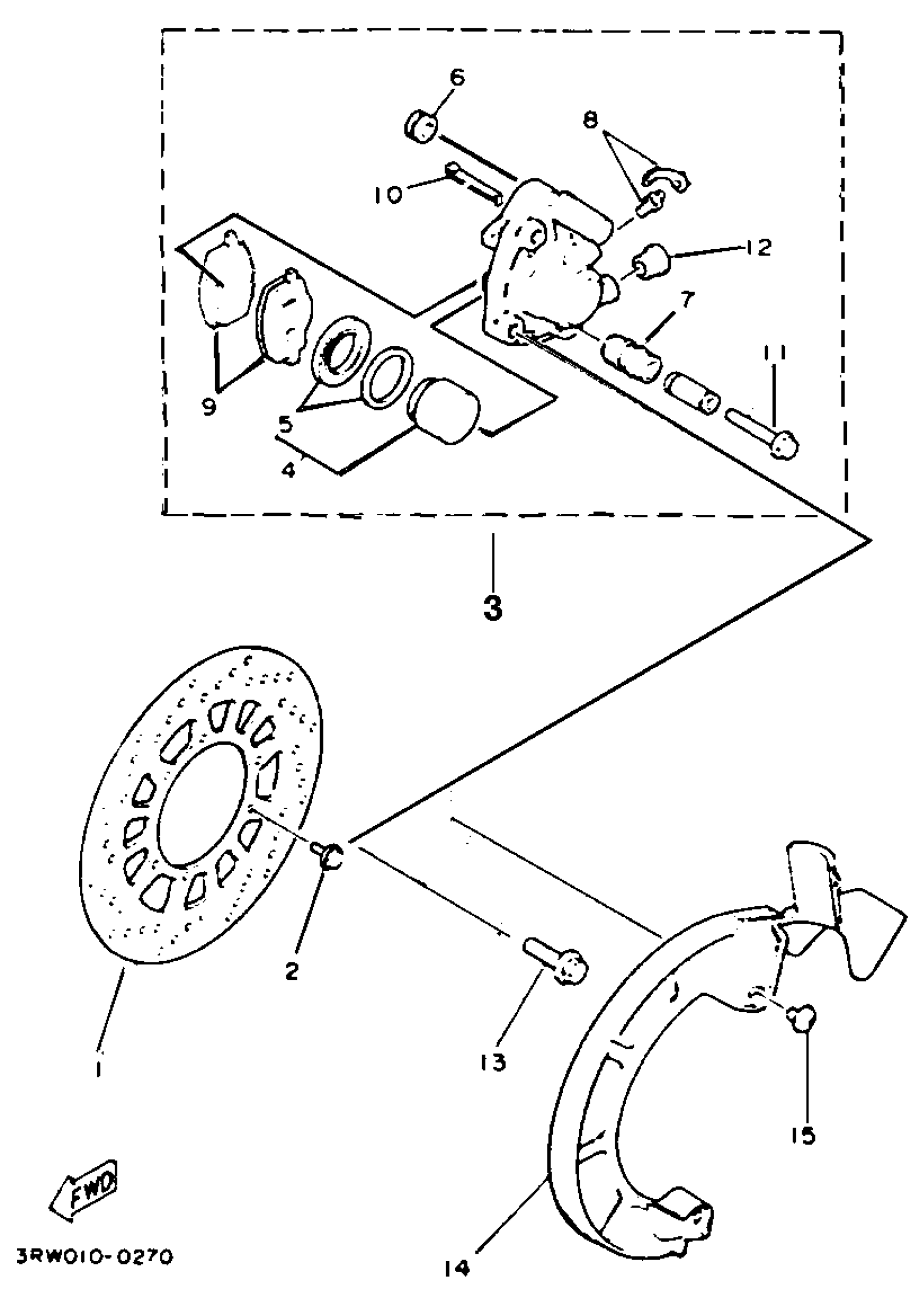

Yamaha XT225EC (SEROW CA) 1993 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$92.99

2

BOLT

90109-06757-00

Unavailable

3

CALIPER ASSY LEFT

1RH-2580T-01-00

Unavailable

4

PISTON ASSY, CALIPER

34X-W0057-00-00

$128.99

5

CALIPER SEAL KIT

34X-W0047-00-00

$45.99

6

BOOT 2

5R2-25937-00-00

$37.99

7

BOOT 2

34X-25937-00-00

$31.99

8

BLEED SCREW KIT

15B-W0048-00-00

$19.99

9

BRAKE PAD KIT 2

34X-W0046-02-00

$47.99

10

SUPPORT, PAD

34X-25919-00-00

Unavailable

11

BOLT

5KN-25926-01-00

$8.99

12

CAP, INDICATOR

34X-25845-00-00

$16.49

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

14

COVER 1

(1RH-25715-30-00)

Unavailable

15

SCREW(36F)

90149-06194-00

Unavailable
