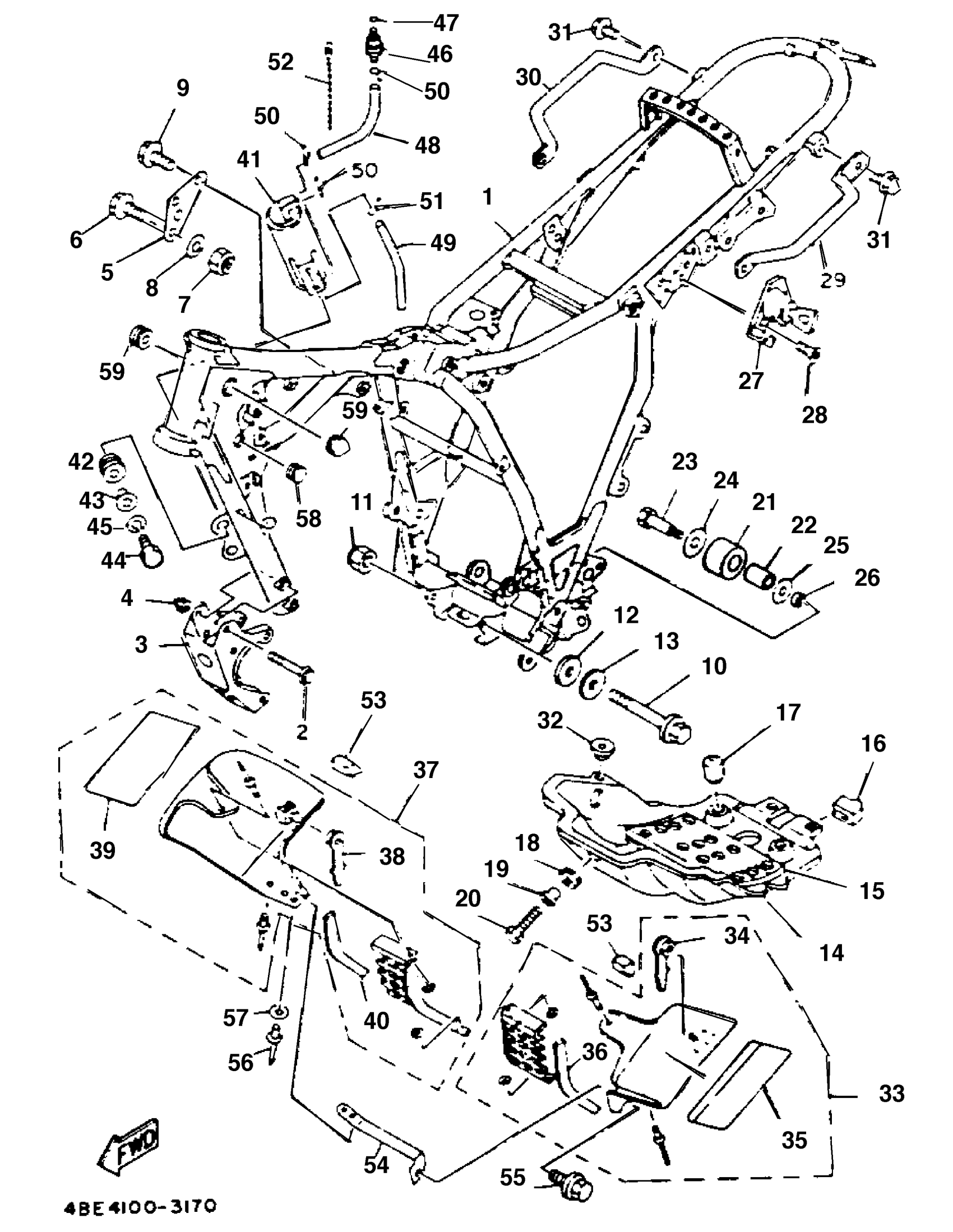

Yamaha XT225EC (SEROW CA) 1993 FRAME Diagram
#
1
FRAME COMP. 1
4BE-21110-00-UJ
Unavailable
1
FRAME COMP.
4FD-21110-00-UJ
Unavailable
3
STAY, ENGINE
4BE-21316-00-UJ
Unavailable
5
STAY, ENGINE 2
1KH-21315-01-00
Unavailable
9
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
13
WASHER, BELLEVILLE
92907-08800-00
Unavailable
14
PROTECTOR, ENGINE
4VW-21471-00-00
Unavailable
15
DAMPER, RUBBER 1
1KH-21485-00-00
Unavailable
16
DAMPER, RUBBER 1
36X-21485-00-00
Unavailable
17
DAMPER, RUBBER 1
34L-21485-00-00
Unavailable
18
GROMMET 839774310000
90480-14023-00
Unavailable
19
COLLAR 437216330000
90387-07391-00
Unavailable
20
BOLT, HEXAGON
97017-06025-00
Unavailable
21
TENSIONER
30X-22178-00-00
Unavailable
22
BUSH
4V4-22184-00-00
Unavailable
23
BOLT (23X)
90109-08705-00
Unavailable
24
WASHER, PLATE(3RR)
90201-133P2-00
Unavailable
25
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
26
COLLAR (7R4)
90387-085E1-00
Unavailable
27
HELMET HANGER ASSY
5H0-21308-01-00
Unavailable
28
SCREW, COUNTERSUNK (21V)
90151-06025-00
Unavailable
29
HANDLE, STANDING
4JG-21165-20-00
Unavailable
30
STAY, REAR
4BE-21275-10-00
Unavailable
31
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
32
SEAL, RIGHT SIDE COVER
2J5-21732-00-00
Unavailable
33
SCOOP COMP, 1 PURPL
3RW-Y217W-A0-00
Unavailable
34
GROMMET(1KH)
90480-14448-00
Unavailable
35
. GRAPHIC, FUEL TANK3
3RW-24246-71-00
Unavailable
36
. DAMPER 2
3RW-2139U-00-00
Unavailable
37
SCOOP COMP, AIR 2
4BE-Y217X-10-00
Unavailable
38
GROMMET(1KH)
90480-14448-00
Unavailable
39
. GRAPHIC
3RW-24247-71-00
Unavailable
40
. DAMPER
3RW-2139X-00-00
Unavailable
41
CANISTER ASSY
4BE-24170-00-00
Unavailable
42
GROMMET(56R)
90480-15342-00
Unavailable
43
COLLAR(52E)
90387-063G3-00
Unavailable
44
BOLT, HEXAGON
97017-06025-00
Unavailable
45
WASHER, SPRING
92907-06100-00
Unavailable
46
ROLL OVER VALVE ASSY
20K-24180-00-00
Unavailable
47
O-RING (4G0)
93210-11453-00
Unavailable
48
HOSE (L200)
90445-10752-00
Unavailable
49
HOSE (L210)
90445-110F5-00
Unavailable
50
CLIP
90467-090A2-00
Unavailable
51
CLIP(1JH)
90467-11106-00
Unavailable
52
BAND
80L-26397-00-00
Unavailable
53
GROMMET
90480-16185-00
Unavailable
54
BRACKET, COVER
4BE-2139T-00-00
Unavailable
55
BOLT, WITH WASHER
90119-06242-00
Unavailable
56
RIVET,BLIND
90267-40080-00
Unavailable
57
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
58
PLUG(2GH)
90338-15202-00
Unavailable
59
PLUG
90338-24260-00
Unavailable
