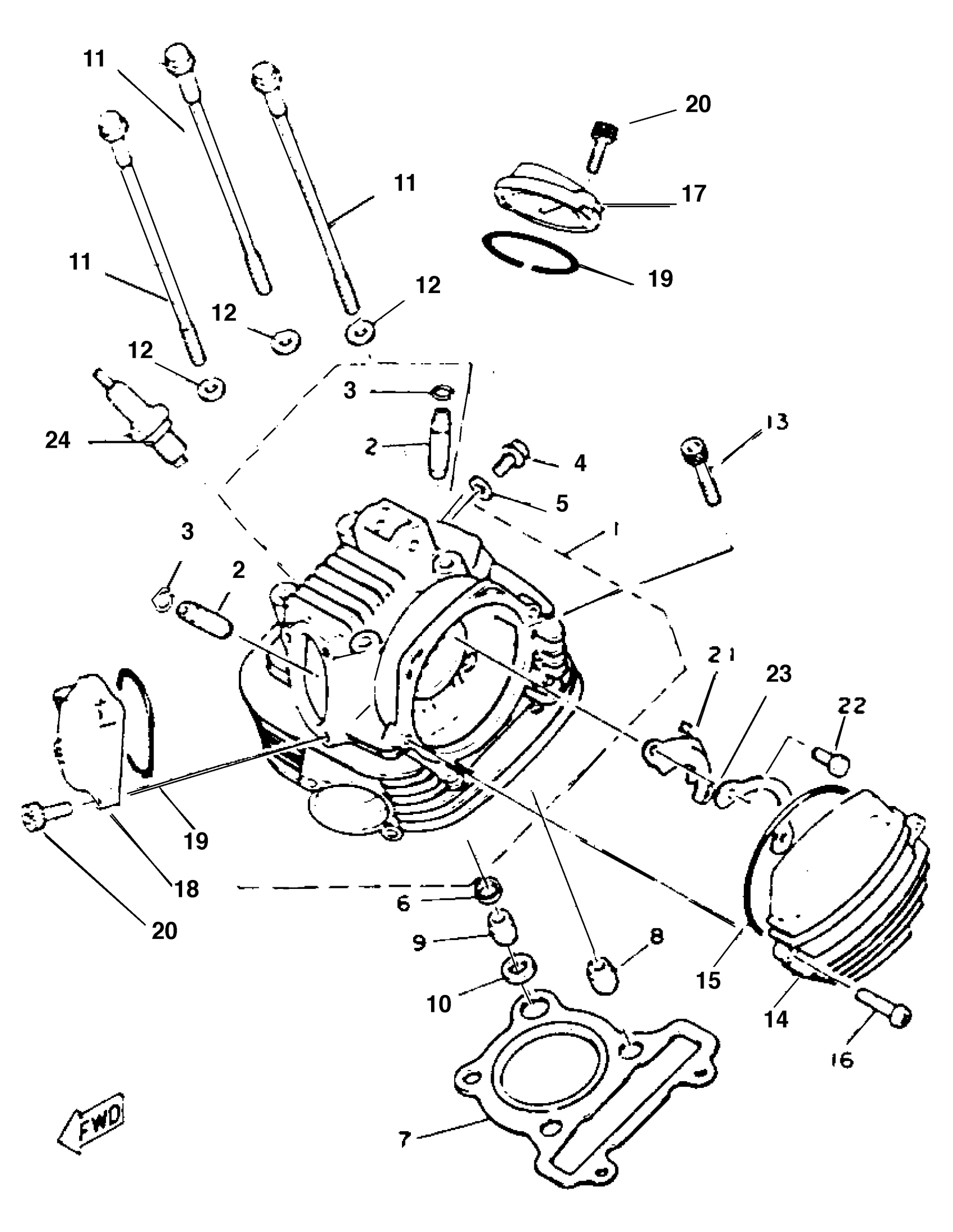

Yamaha XT225EC (SEROW CA) 1993 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3RW-11101-04-00

Unavailable

2

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

SCREW

90153-06029-00

$10.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

COLLAR

90385-12039-00

$11.49

7

GASKET, CYLINDER HEAD 1

59V-11181-00-00

$38.99

8

PIN, DOWEL

99530-14016-00

$3.80

9

PIN, DOWEL(4XL)

93612-16254-00

$5.60

10

GASKET (29U)

90430-12186-00

$14.99

11

BOLT, FLANGE

90105-08160-00

$7.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT, SOCKET

91317-08045-00

Unavailable

14

COVER, CYLINDER HEAD SIDE 1

3RW-11185-00-00

Unavailable

15

O-RING (5H0)

93211-05471-00

$14.99

16

SCREW PAN HEAD

98580-06020-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 2

3RW-11186-00-00

Unavailable

18

COVER, CYLINDER HEAD SIDE 3

3RW-11187-00-00

Unavailable

19

O-RING

93210-57634-00

Unavailable

20

BOLT, SOCKET

91314-06018-00

Unavailable

21

PLATE

5H0-1111F-00-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

24

DR8ESL NGK SPLUG 10PK

DR8-ESL00-00-00

Unavailable
