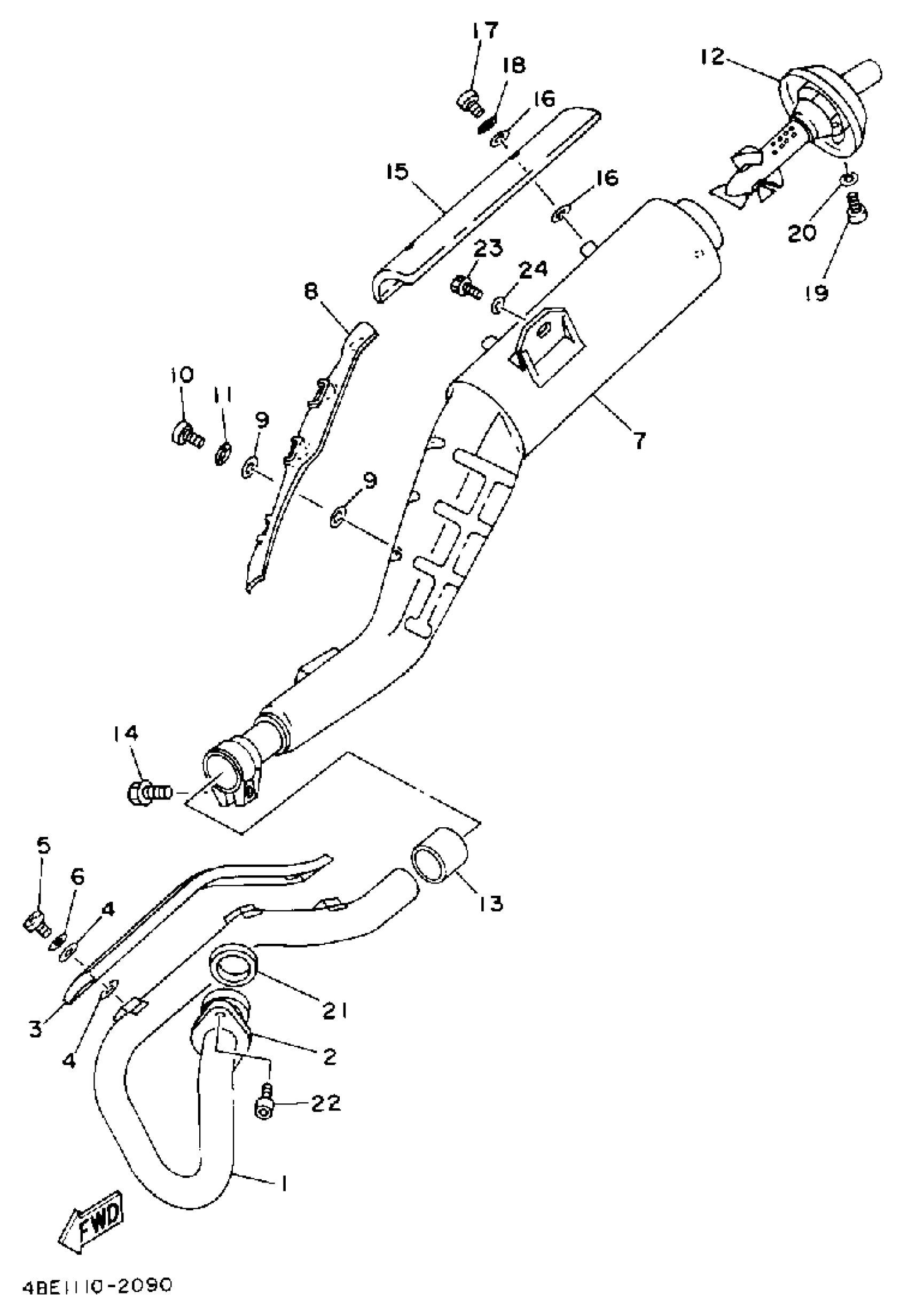

Yamaha XT225DC (SEROW CA) 1992 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

3RW-14611-00-00

Unavailable

2

NUT, RING

5H0-14612-01-00

$13.32

3

PROTECTOR, EXHAUST PIPE

3RW-14628-00-00

Unavailable

4

WASHER, PROTECTOR

4BD-14766-00-00

$4.79

5

SCREW, BIND(1JK)

98980-06010-00

$6.79

6

WASHER, WAVE(3RW)

90206-06090-00

$5.27

7

MUFFLER 1

4BE-14711-00-00

Unavailable

8

PROTECTOR, MUFFLER 2

1KH-14728-01-00

Unavailable

9

WASHER, PROTECTOR

4BD-14766-00-00

$4.79

10

SCREW, BINDING

98907-06010-00

$1.49

11

WASHER, WAVE(3RW)

90206-06090-00

$5.27

12

PIPE, OUTLET

1RH-14752-01-00

$119.49

13

GASKET, MUFFLER

3YF-14714-00-00

$28.36

14

BOLT (71X) =9502608025)

99999-01790-00

$5.35

15

PROTECTOR, MUFFLER 2

3TB-14728-00-00

Unavailable

16

WASHER, PROTECTOR

4BD-14766-00-00

$4.79

17

SCREW, BIND(1JK)

98980-06010-00

$6.79

18

WASHER, WAVE(3RW)

90206-06090-00

$5.27

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.83

21

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

23

BOLT(2KF)

90109-085E2-00

Unavailable

24

WASHER (853)

90201-08326-00

Unavailable
