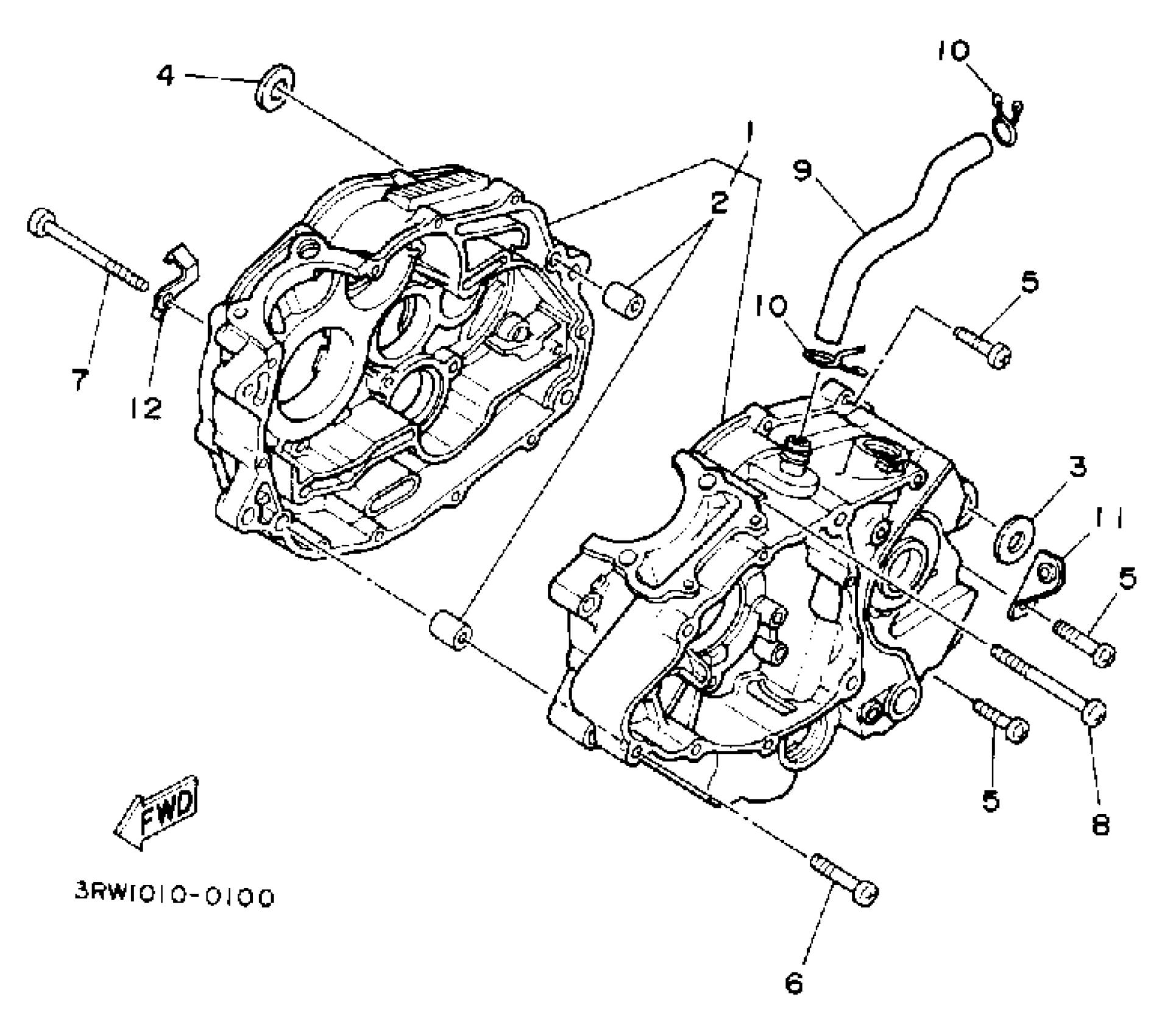

Yamaha XT225DC (SEROW CA) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASY

99999-03013-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.93

3

COLLAR (15A)

90387-125F1-00

$3.85

4

COLLAR (15A)

90387-125F1-00

$3.85

5

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.21

6

SCREW, PAN

98507-06040-00

$2.12

7

SCREW, PAN

98507-06090-00

Unavailable

8

SCREW, PAN

98507-06085-00

$4.92

9

PIPE, BREATHER 1

1KH-11166-01-00

$31.23

10

CLIP (371)

90467-14015-00

$7.18

11

CLAMP (15A)

90465-08200-00

$3.92

12

CLAMP

90462-08193-00

Unavailable
