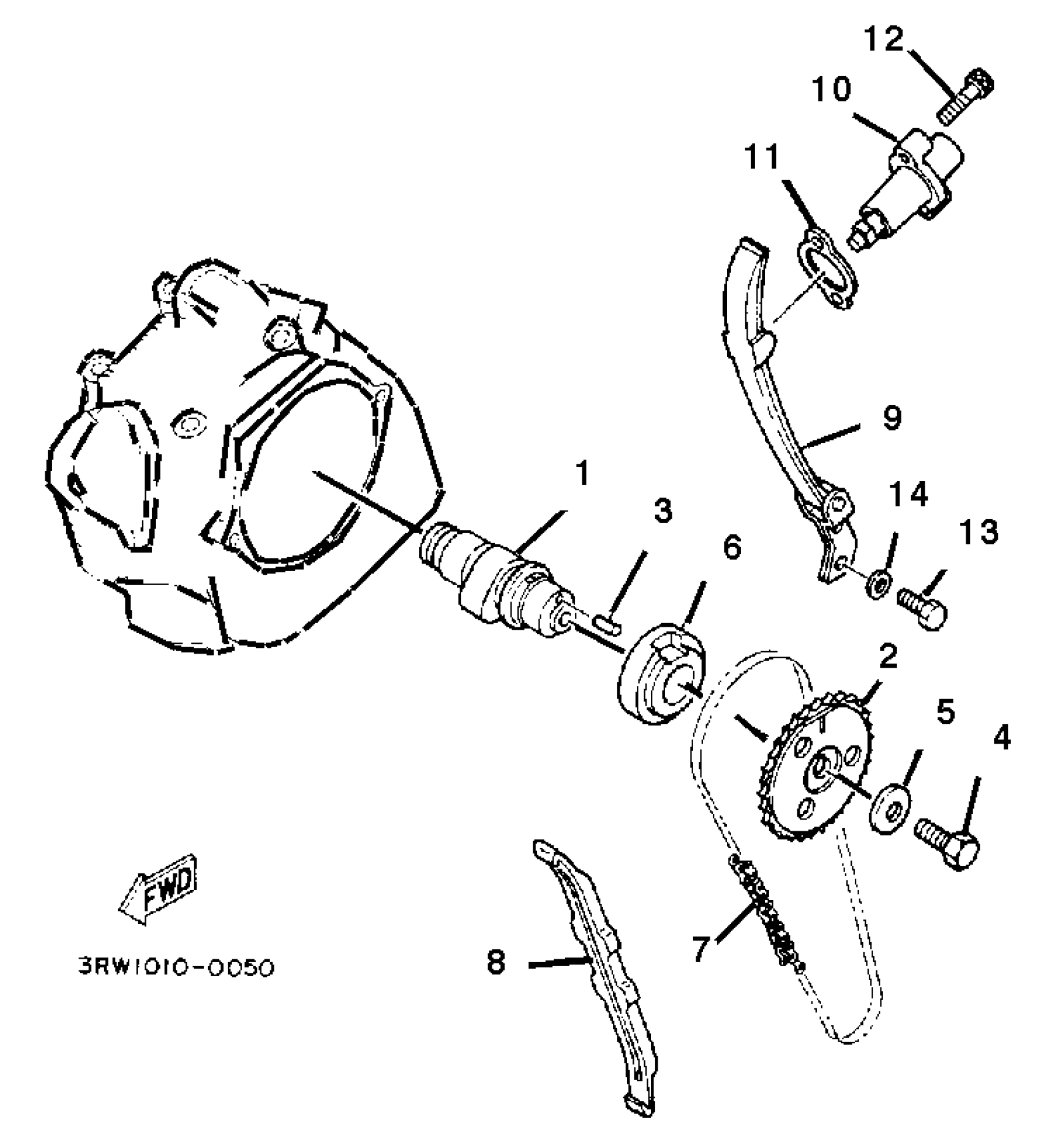

Yamaha XT225DC (SEROW CA) 1992 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

1KH-12171-01-00

$161.99

SPROCKET, CAM CHAIN

2LN-12176-01-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

COLLAR (15A)

90387-255F3-00

$45.99

CHAIN, CAM SHAFT (5N0)

94580-41104-00

$81.99

GUIDE, STOPPER 1

5H0-12231-01-00

Unavailable

GUIDE, STOPPER 2

5N0-12241-01-00

$57.99

TENSIONER ASSY, CAM CHAIN

2HT-12210-10-00

$157.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET HEAD

91314-06025-00

$8.49

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80
