Description

Price

1

GUIDE, CABLE

15A-23389-00-00

Unavailable

2

. GUIDE, CABLE

3Y1-2331E-00-00

Unavailable

3

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

RACE, BALL 2

B6E-23412-00-00

$13.49

6

BALL

93501-04011-00

$8.49

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

RACE, BALL 2

BP2-23412-00-00

$7.49

9

BALL

93503-16003-00

$2.72

10

COVER, BALL RACE

122-23416-00-00

$7.99

11

NUT

90179-25004-00

$24.99

12

BOLT (2A2)

90105-14102-00

$5.60

13

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

14

BOLT, HEXAGON

97017-06012-00

$3.76

15

WASHER, SPRING

92907-06100-00

$4.25

16

HOLDER, CABLE 2

3Y1-23319-00-00

Unavailable

17

BOLT, HEXAGON

97017-06012-00

$3.76

18

WASHER, SPRING

92907-06100-00

$4.25

19

CROWN, HANDLE

(15A-23435-00-98)

Unavailable

20

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

21

BOLT, FLANGE

95817-08035-00

Unavailable

22

BOLT, FLANGE

95817-08040-00

Unavailable

23

HOLDER, CABLE

5Y1-23317-00-00

Unavailable

24

STAY, HEADLIGHT (15A-23174-00)

17T-23174-00-00

Unavailable

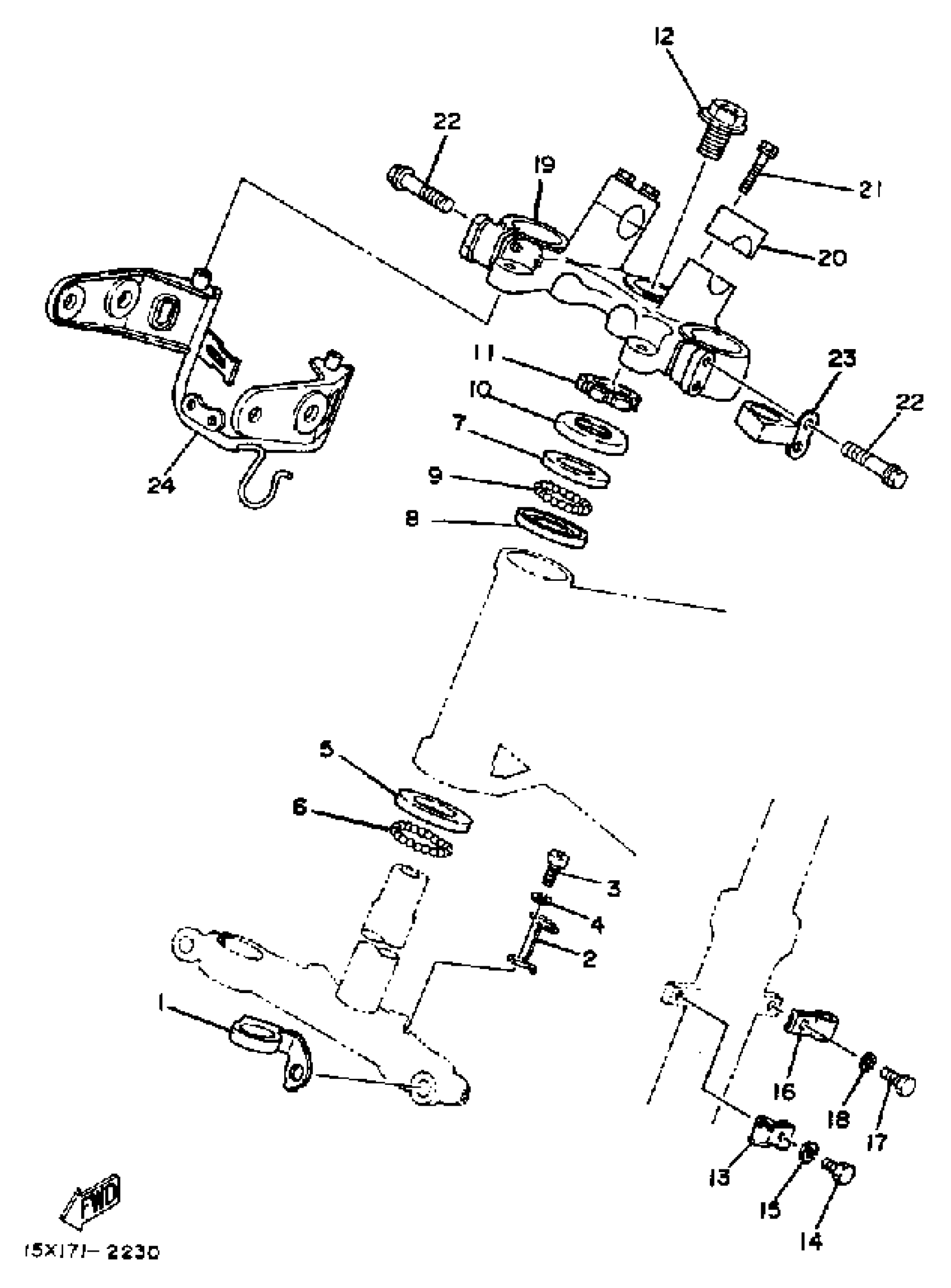

Yamaha XT200KC (XT200 CA) 1983 STEERING XT200K - KC Diagram

GUIDE, CABLE

. GUIDE, CABLE

SCREW, PAN HEAD(62J)

WASHER, SPRING

RACE, BALL 2

BALL

RACE, BALL 1

RACE, BALL 2

BALL

COVER, BALL RACE

NUT

BOLT (2A2)

HOLDER, CABLE 2

BOLT, HEXAGON

WASHER, SPRING

HOLDER, CABLE 2

BOLT, HEXAGON

WASHER, SPRING

CROWN, HANDLE

HOLDER, HANDLE UPPER

BOLT, FLANGE

BOLT, FLANGE

HOLDER, CABLE

STAY, HEADLIGHT (15A-23174-00)
