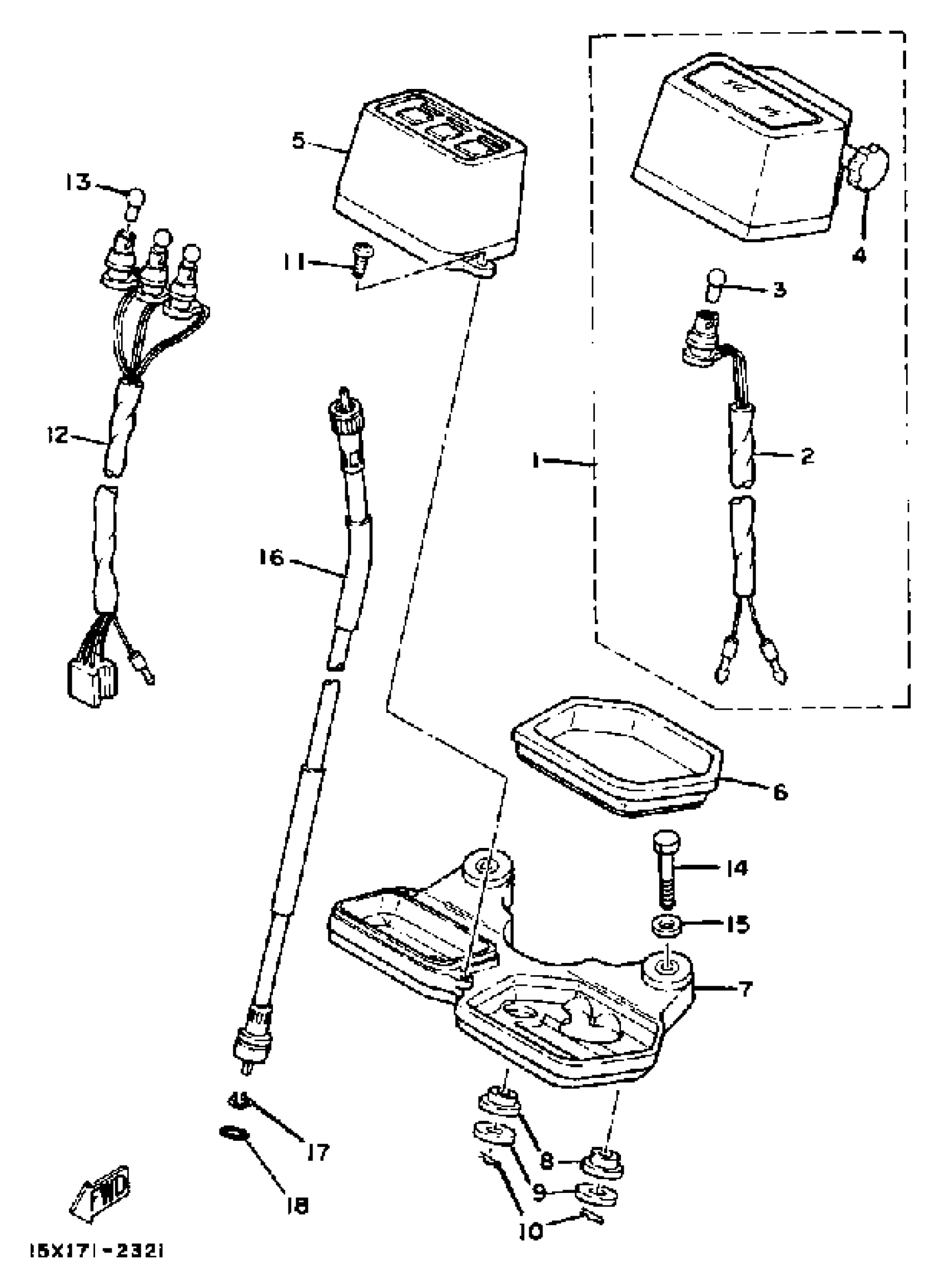

Yamaha XT200KC (XT200 CA) 1983 SPEEDOMETER XT200K - KC Diagram

#

Description
Price

1

SPEEDOMETER ASY

12V-83570-G0-00

Unavailable

2

. SOCKET CORD ASSEMBLY (15A-83536-00)

5E2-83509-00-00

Unavailable

3

BULB,(6V3W)

122-83516-10-00

Unavailable

4

KNOB, TRIP METER

5Y1-83578-00-00

$27.99

5

PILOT BOX, UPPER

15A-83568-00-00

Unavailable

6

DAMPER

5Y1-83513-00-00

Unavailable

7

BRACKET, METER

15A-83519-00-00

$53.99

8

DAMPER 2

1M1-83526-01-00

$4.47

9

WASHER PLATE 829771780000

90201-05033-00

$10.49

10

CLIP (156-83525-00)

90468-10050-00

$3.05

11

SCREW, PAN HEAD

98517-04012-00

$3.88

12

SOCKET CORD ASSY

15A-83509-01-00

$33.99

13

BULB,(6V3W)

122-83516-10-00

Unavailable

14

BOLT(8BC)

97017-06040-00

$9.49

15

WASHER(6TA)

92907-06600-00

$2.72

16

SPEEDOMETER CABLE ASSY

1M1-83550-01-00

Unavailable

17

RING, STOP

102-25137-00-00

Unavailable

18

O-RING (26H)

93210-14579-00

Unavailable
