Description

Price

1

KICK SHAFT ASSY

15A-15660-01-00

Unavailable

2

CLIP (15A)

90468-26122-00

$8.49

3

COVER, SPRING

401-15676-00-00

$7.99

4

SPACER

15A-15666-00-00

$7.99

5

SPRING, TORSION (15A)

90508-26538-00

$12.49

6

CIRCLIP(1EY)

99009-17400-00

$4.73

7

WASHER, PLATE (15A)

90201-175F6-00

$10.49

8

GEAR, KICK

36X-15641-00-00

Unavailable

9

WASHER (15A)

90209-17226-00

$9.49

10

OIL SEAL (15A)

93102-17263-00

$10.49

11

WASHER, PLATE (15A)

90201-173F4-00

$8.49

12

GEAR, KICK IDLE

15A-15651-01-00

$67.99

13

WASHER, CLAW (15A)

90214-17028-00

$8.49

14

CIRCLIP(1EY)

99009-17400-00

$4.73

15

KICK CRANK ASSY

15A-15620-01-00

Unavailable

16

. BOSS, KICK CRANK

15A-15621-02-00

Unavailable

17

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

18

BALL (12R)

93507-32031-00

Unavailable

19

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

20

BOLT, HEXAGON

97013-08030-00

Unavailable

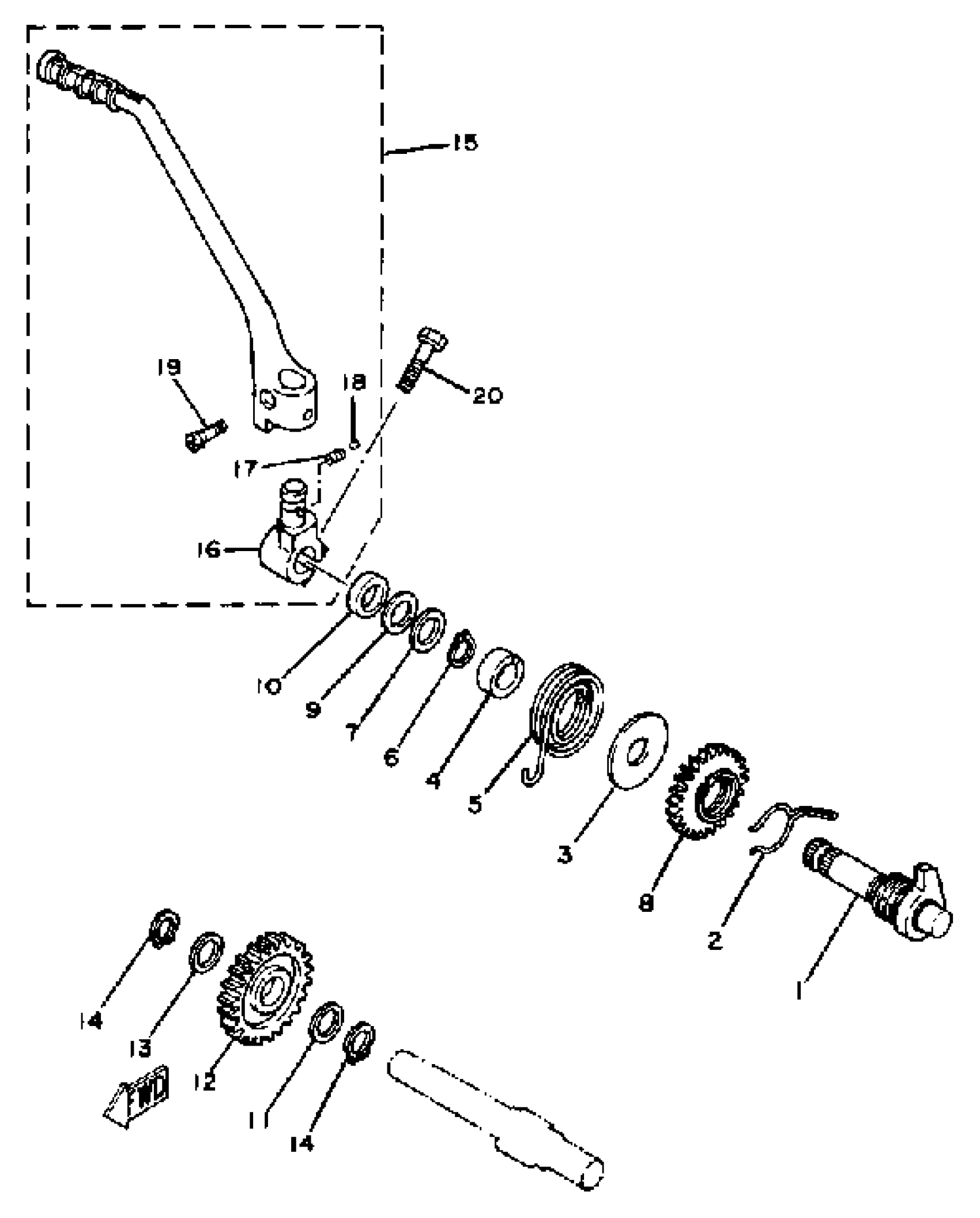

Yamaha XT200KC (XT200 CA) 1983 KICK STARTER XT200K - KC Diagram

KICK SHAFT ASSY

CLIP (15A)

COVER, SPRING

SPACER

SPRING, TORSION (15A)

CIRCLIP(1EY)

WASHER, PLATE (15A)

GEAR, KICK

WASHER (15A)

OIL SEAL (15A)

WASHER, PLATE (15A)

GEAR, KICK IDLE

WASHER, CLAW (15A)

CIRCLIP(1EY)

KICK CRANK ASSY

. BOSS, KICK CRANK

SPRING COMPRESSION278156220000

BALL (12R)

SCREW, COUNTERSUNK (5Y1)

BOLT, HEXAGON
