Description

Price

1

HANDLE

3G7-26111-00-00

Unavailable

2

GRIP (R.H)

1A0-26242-01-00

$39.99

3

RING, LEAF

1M1-26249-01-00

$7.99

4

TUBE, GUIDE.

434-26243-00-00

$49.99

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

6

CABLE, THROTTLE 1

15A-26311-00-00

Unavailable

7

NUT, HEXAGON

90170-10038-00

$4.67

8

CABLE, CLUTCH

15A-26335-00-00

Unavailable

9

BAND

3Y1-26397-00-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

WASHER, PLAIN (646)

92990-05600-00

$0.80

12

NUT, HEXAGON (663)

95380-05600-00

$8.49

13

BOOT, WIRE

1E6-26342-00-00

$30.99

14

COVER, LEVER

1E6-26372-00-00

$23.99

15

BOLT

90123-08002-00

$10.49

16

NUT

90179-08030-00

Unavailable

17

CABLE, BRAKE

15A-26341-00-00

Unavailable

18

BOOT, WIRE

1E6-26342-00-00

$30.99

19

COVER, LEVER

1E6-26372-00-00

$23.99

20

BOLT

90123-08002-00

$10.49

21

NUT

90179-08030-00

Unavailable

22

PLUG (341-26329-00)

90338-09012-00

Unavailable

23

MIRROR ASSY., 2

5Y1-26290-11-00

Unavailable

24

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

Unavailable

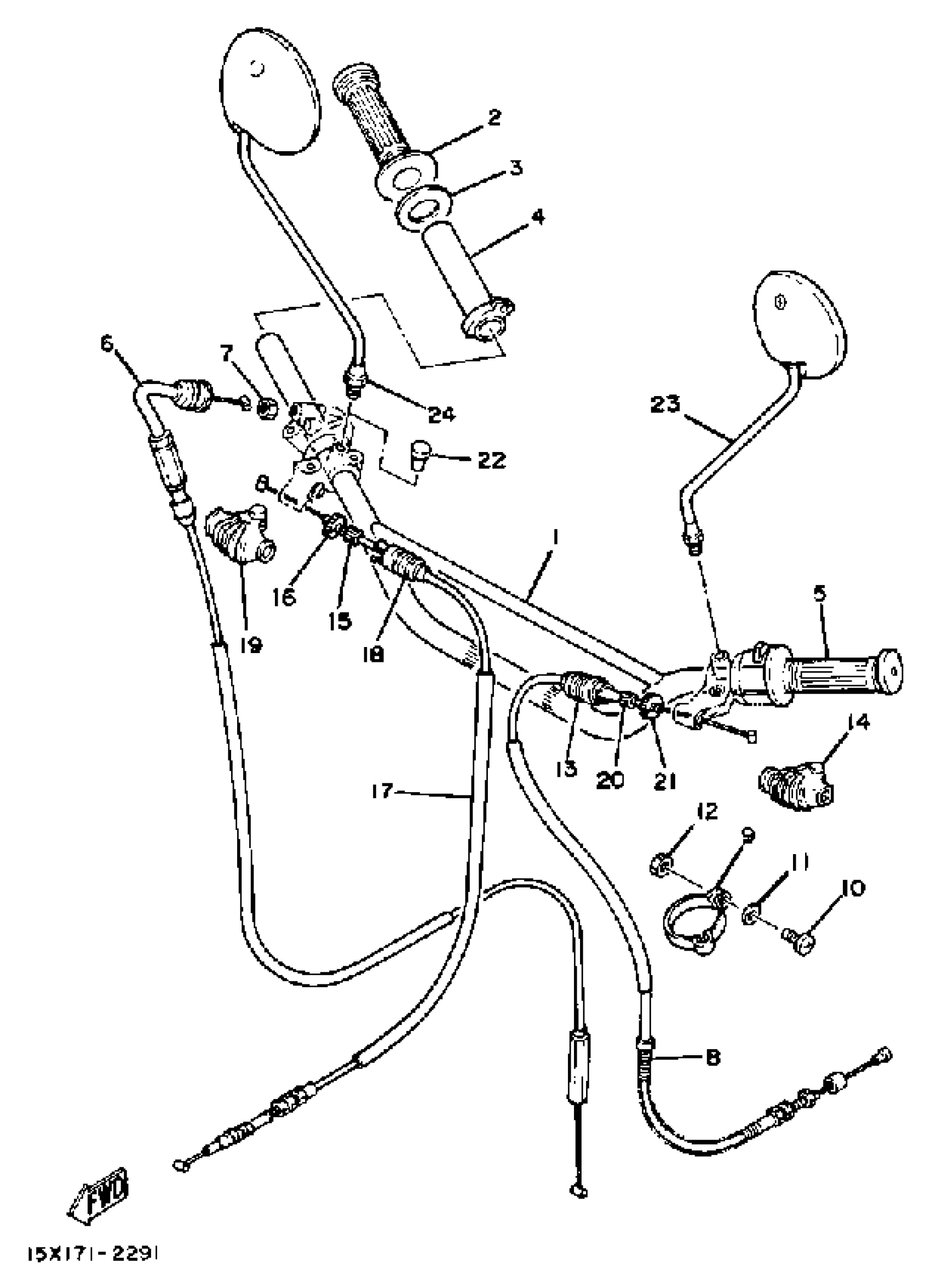

Yamaha XT200KC (XT200 CA) 1983 HANDLEBAR - CABLE XT200K - KC Diagram

HANDLE

GRIP (R.H)

RING, LEAF

TUBE, GUIDE.

GRIP, HANDLE (L.H)

CABLE, THROTTLE 1

NUT, HEXAGON

CABLE, CLUTCH

BAND

SCREW, PAN HEAD(6B0)

WASHER, PLAIN (646)

NUT, HEXAGON (663)

BOOT, WIRE

COVER, LEVER

BOLT

NUT

CABLE, BRAKE

BOOT, WIRE

COVER, LEVER

BOLT

NUT

PLUG (341-26329-00)

MIRROR ASSY., 2

REAR VIEW MIRROR ASSY(RIGHT)
