1982 Yamaha XT200 (XT200J) Transmission Diagram

← All diagrams

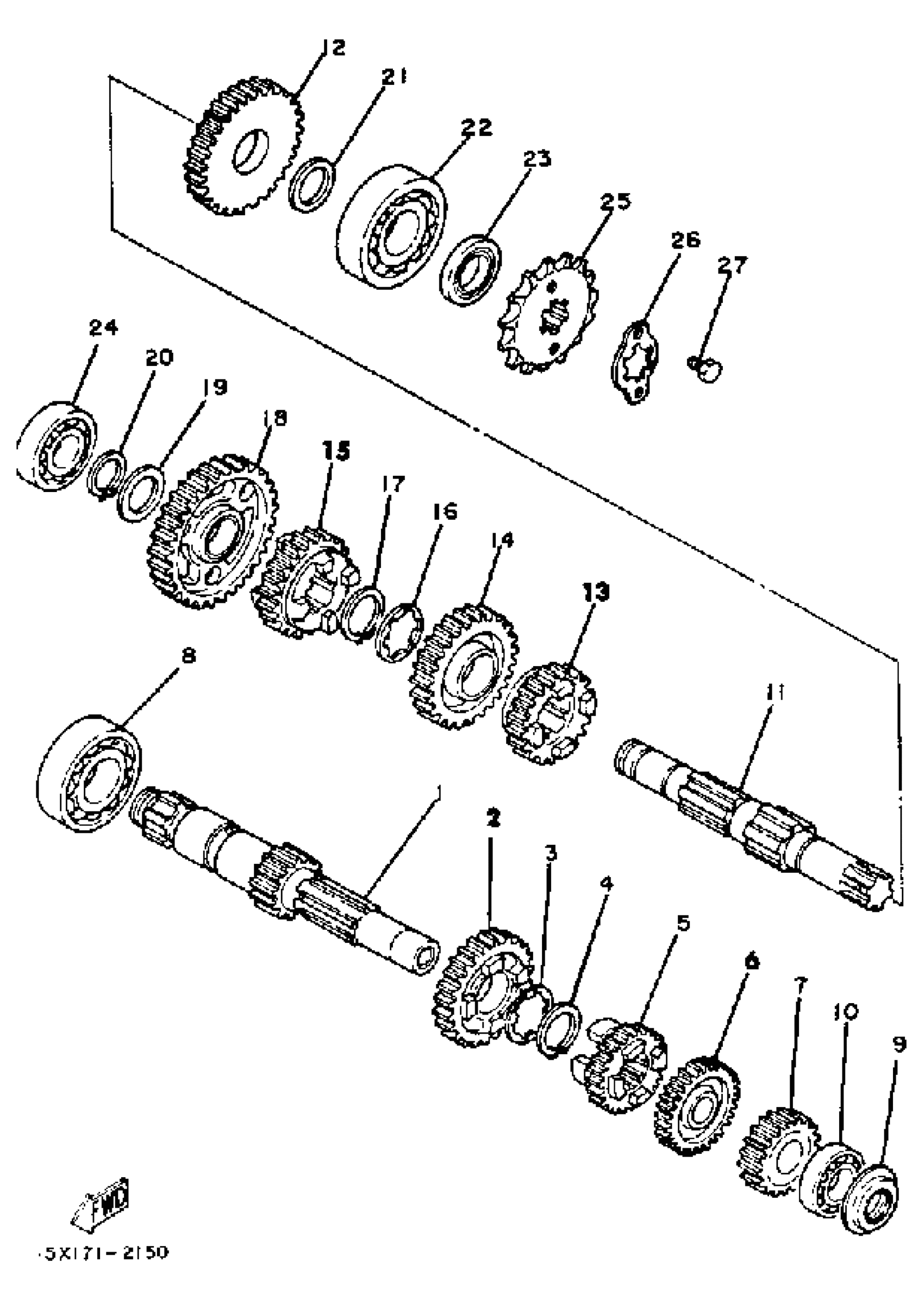

Find the part on the Transmission diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

15A-17411-01-00

—

$68.82

In stock

2

GEAR, 5TH PINION

15A-17151-01-00

—

$39.69

In stock

3

WASHER (5H0)

90209-16209-00

1

$6.00

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 2ND PINION

5H0-17121-01-00

—

$43.28

In stock

6

GEAR, 4TH PINION

15A-17141-00-00

—

$29.43

In stock

7

GEAR, 2ND PINION

15A-17121-00-00

—
Out of stock

8

BEARING(1YW)

93306-20461-00

1

$33.41

In stock

9

OIL SEAL (5H0)

93101-15101-00

1

$10.06

In stock

10

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

11

DRIVE AXLE ASSY

15A-17402-01-00

—
Out of stock

12

GEAR, 2ND WHEEL

15A-17221-00-00

—

$42.31

In stock

13

GEAR, 4TH WHEEL

15A-17241-00-00

—

$33.89

In stock

14

GEAR, 3RD WHEEL

15A-17231-00-00

—
Out of stock

15

GEAR, 6TH WHEEL

5MP-17261-00-00

—

$85.94

In stock

16

WASHER (5H0)

90209-18208-00

—

$6.74

In stock

17

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

18

GEAR, 1ST WHEEL

15A-17211-01-00

—

$78.71

In stock

19

WASHER PLATE 306155610000

90201-17257-00

—

$6.42

In stock

20

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

21

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

22

BEARING

93306-30443-00

—

$56.87

In stock

23

OIL SEAL

93102-20004-00

—

$9.52

In stock

24

BEARING (30X)

93306-20332-00

—

$32.02

In stock

25

—

$16.25

In stock

26

HOLDER, SPROCKET

5H0-17456-00-00

—
Out of stock

27

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
