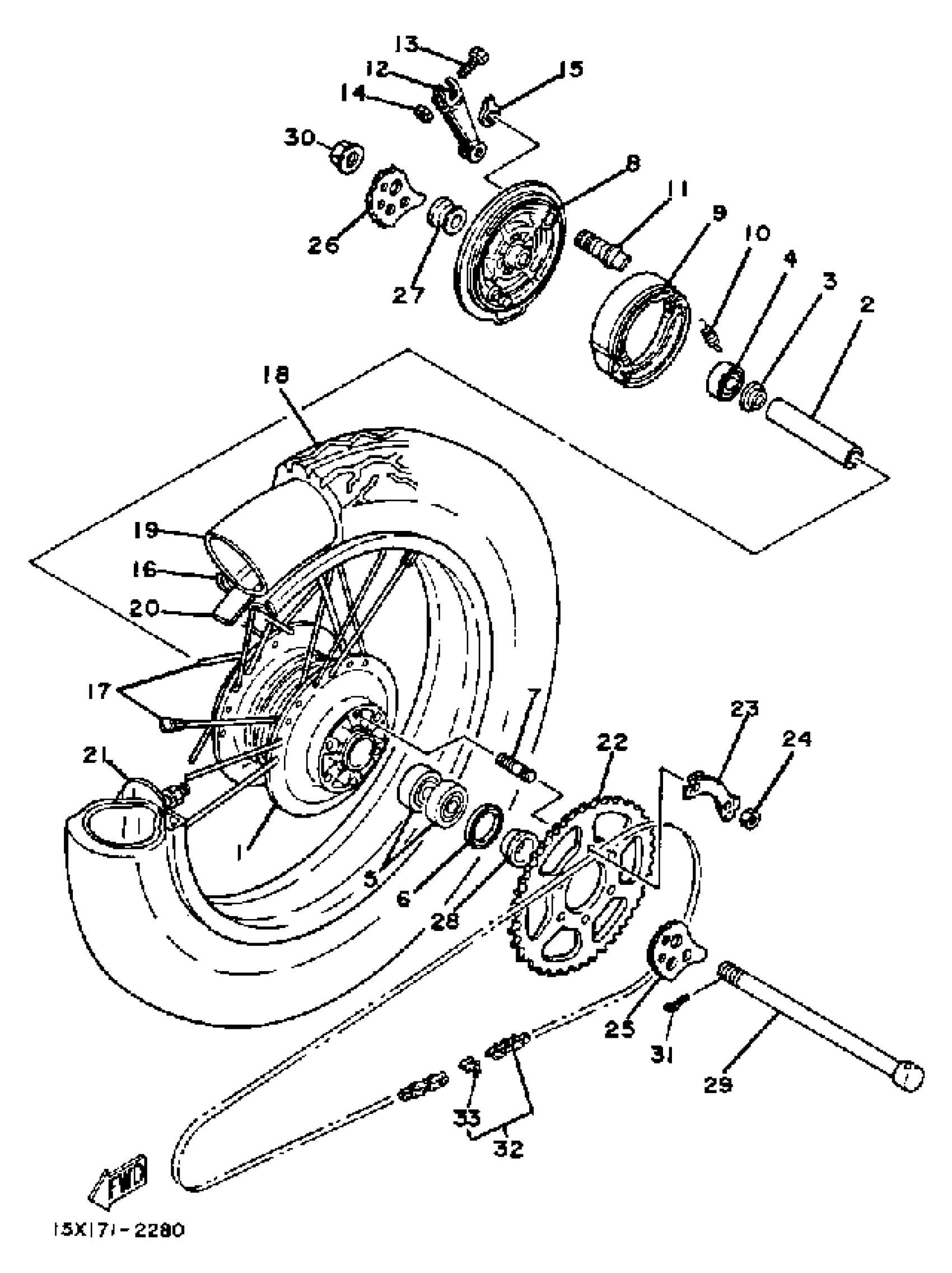

Yamaha XT200J (XT200) 1982 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

15A-25311-00-98

Unavailable

2

SPACER

90560-15313-00

$46.99

3

FLANGE, SPACER

146-25116-00-00

$8.99

4

BEARING(3DL)

93306-20226-00

$38.99

5

BEARING

93306-20205-00

$38.99

6

OIL SEAL (22X35X5)

93104-22018-00

$11.49

7

BOLT, STUD (483)

90116-08218-00

$8.49

8

PLATE, BRAKE SHOE

15A-25321-04-98

Unavailable

9

BRAKE SHOE KIT

4BE-W253E-00-00

$21.99

10

SPRING, TENSION

90506-15260-00

$8.49

11

CAMSHAFT

4GL-25351-00-00

$68.99

12

LEVER, CAM SHAFT

2N3-25155-00-00

$28.99

13

BOLT, HEXAGON (538)

90101-06278-00

$2.17

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

PLATE, INDICATOR

4H7-2533A-02-00

$8.99

16

RIM 1.85X17 (1.85-17) ((94418-1734, D, +'', F, ))

94418-17344-00

Unavailable

17

SPOKE SET, REAR (15A-25304-00)

15A-25304-01-00

Unavailable

18

100/80-17

94110-171M8-00

Unavailable

19

TUBE

94210-17211-00

Unavailable

20

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

21

SPACER, BEAD

3Y1-25394-00-00

Unavailable

22

SPROCKET, DRIVN 47T

15A-25447-10-00

Unavailable

23

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

24

NUT (3Y2)

90170-08258-00

Unavailable

25

PULLER, CHAIN 1

5H0-25388-00-00

Unavailable

26

PULLER, CHAIN 2

5MP-25389-00-00

Unavailable

27

COLLAR

90387-15770-00

Unavailable

28

COLLAR (12T)

90387-155F2-00

Unavailable

29

AXLE, WHEEL (2R7-25381-00)

401-25381-00-00

Unavailable

30

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

CHAIN

9Y582-51117-00

Unavailable

33

JOINT, CHAIN

94682-51001-00

Unavailable
