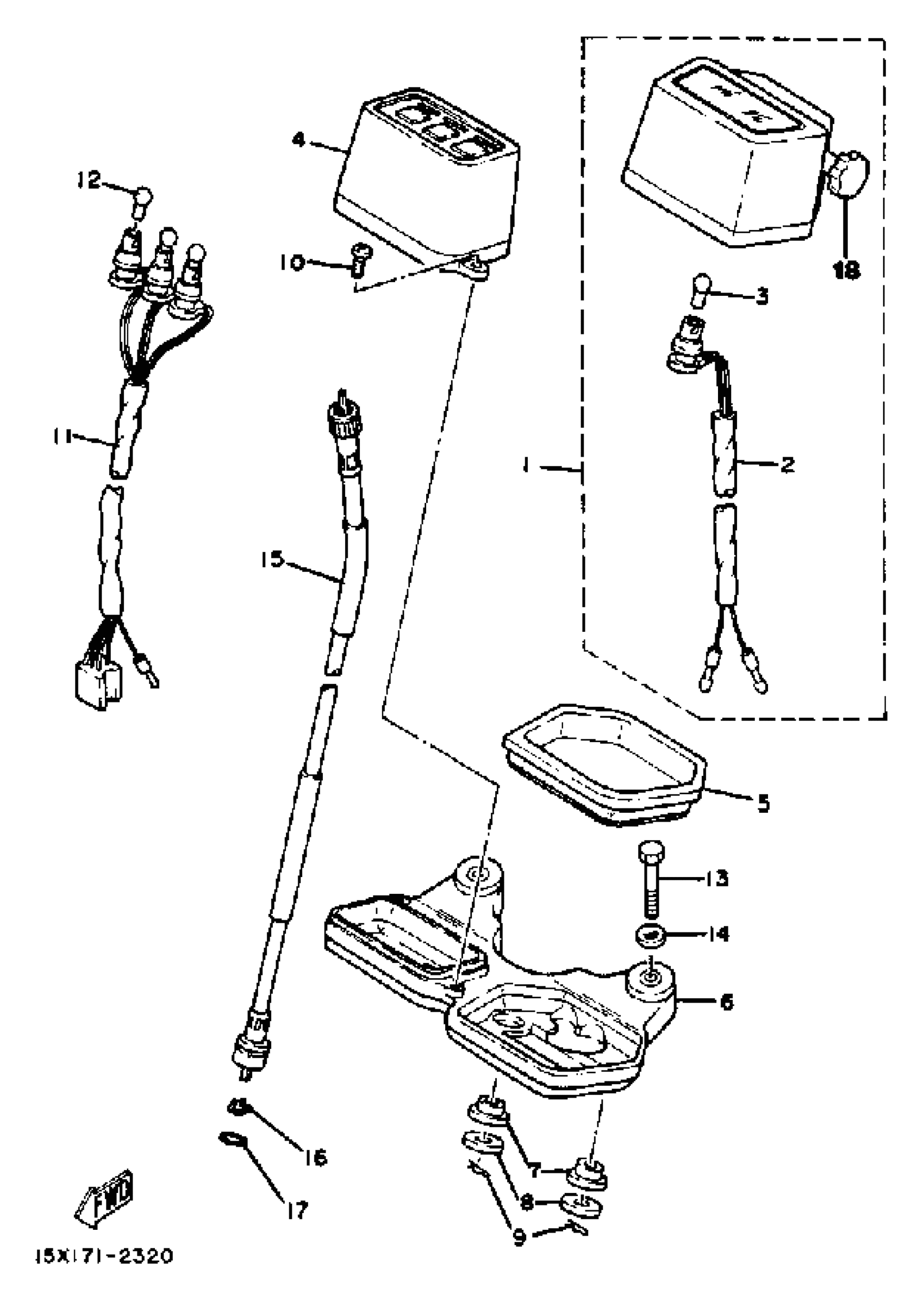

Find the part on the Meter diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

12V-83570-G0-00

1
Out of stock

2

. SOCKET CORD ASSEMBLY (15A-83536-00)

5E2-83509-00-00

1
Out of stock

3

BULB,(6V3W)

122-83516-10-00

1
Out of stock

4

PILOT BOX, UPPER

15A-83568-00-00

1
Out of stock

5

DAMPER

5Y1-83513-00-00

—

$28.86

In stock

6

BRACKET, METER

15A-83519-00-00

1

$46.13

In stock

7

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

10

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

11

SOCKET CORD ASSY

15A-83509-01-00

1

$29.17

In stock

12

BULB,(6V3W)

122-83516-10-00

1
Out of stock

13

BOLT(8BC)

97017-06040-00

1
Out of stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

SPEEDOMETER CABLE ASSY

1M1-83550-01-00

1

$44.52

In stock

16

RING, STOP

102-25137-00-00

—
Out of stock

17

O-RING (26H)

93210-14579-00

—

$5.69

In stock

18

KNOB, TRIP METER

5Y1-83578-00-00

—
Out of stock
