1982 Yamaha XT200 (XT200J) Handle Switch Lever Diagram

← All diagrams

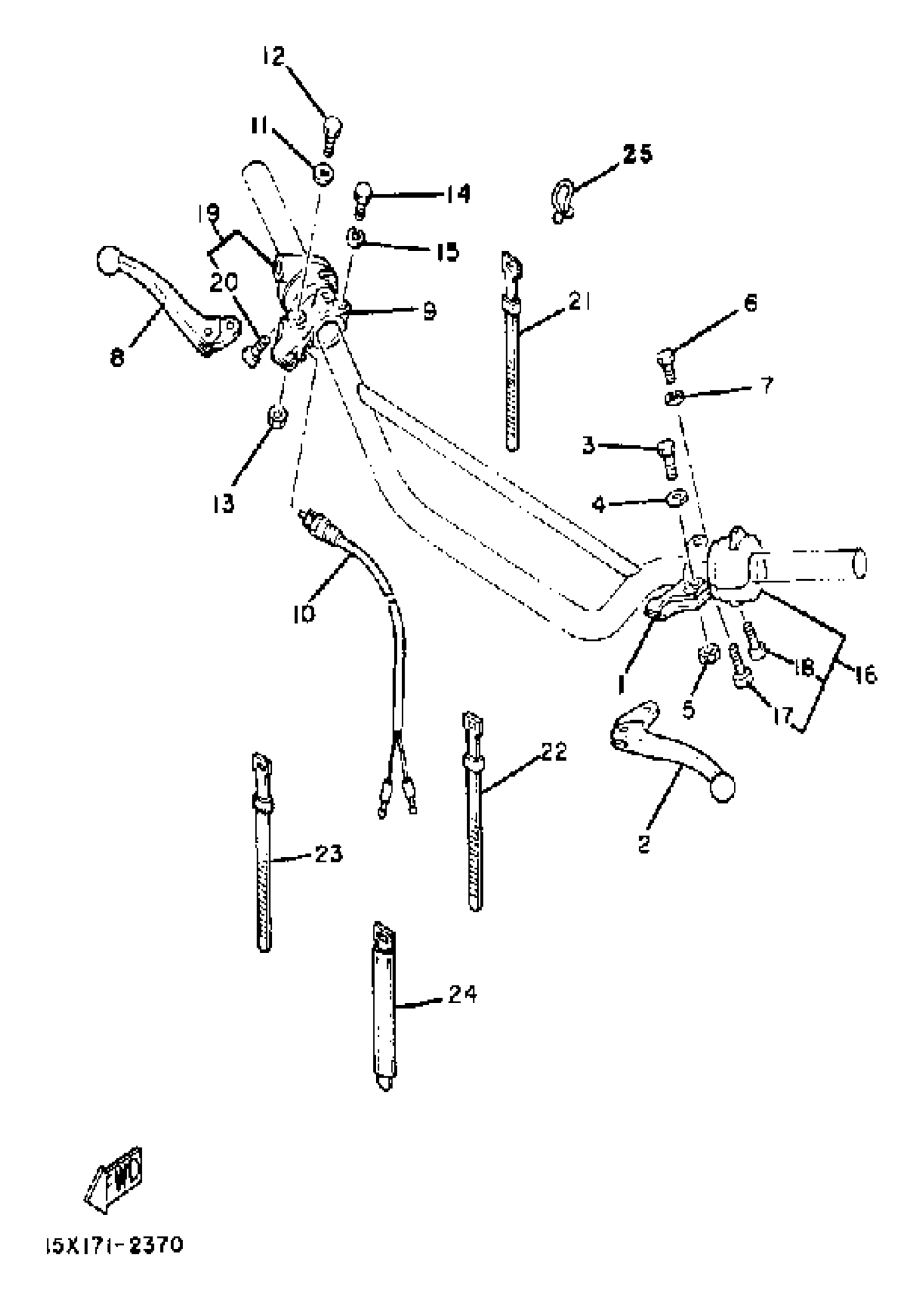

Find the part on the Handle Switch Lever diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

3Y6-82911-00-00

1

$45.97

In stock

2

LEVER 1

3FY-83912-02-00

1
Out of stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97007-06022-00

—
Out of stock

7

WASHER, SPRING

92907-06100-00

1
Out of stock

8

LEVER 2

5Y1-83922-11-00

—

$26.08

In stock

9

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

10

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

13

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

14

BOLT, HEXAGON

97007-06022-00

—
Out of stock

15

WASHER, SPRING

92907-06100-00

1
Out of stock

16

SWITCH, HANDLE 3

15A-83973-00-00

1
Out of stock

17

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

18

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

19

SWITCH, HANDLE 1

15A-83976-00-00

1
Out of stock

20

SCREW, PAN HEAD

98517-05020-00

—

$1.35

In stock

21

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

22

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

23

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

24

BAND

341-26397-01-00

1
Out of stock

25

CLAMP (3Y2)

90464-16039-00

—
Out of stock
