1982 Yamaha XT200 (XT200J) Intake Diagram

← All diagrams

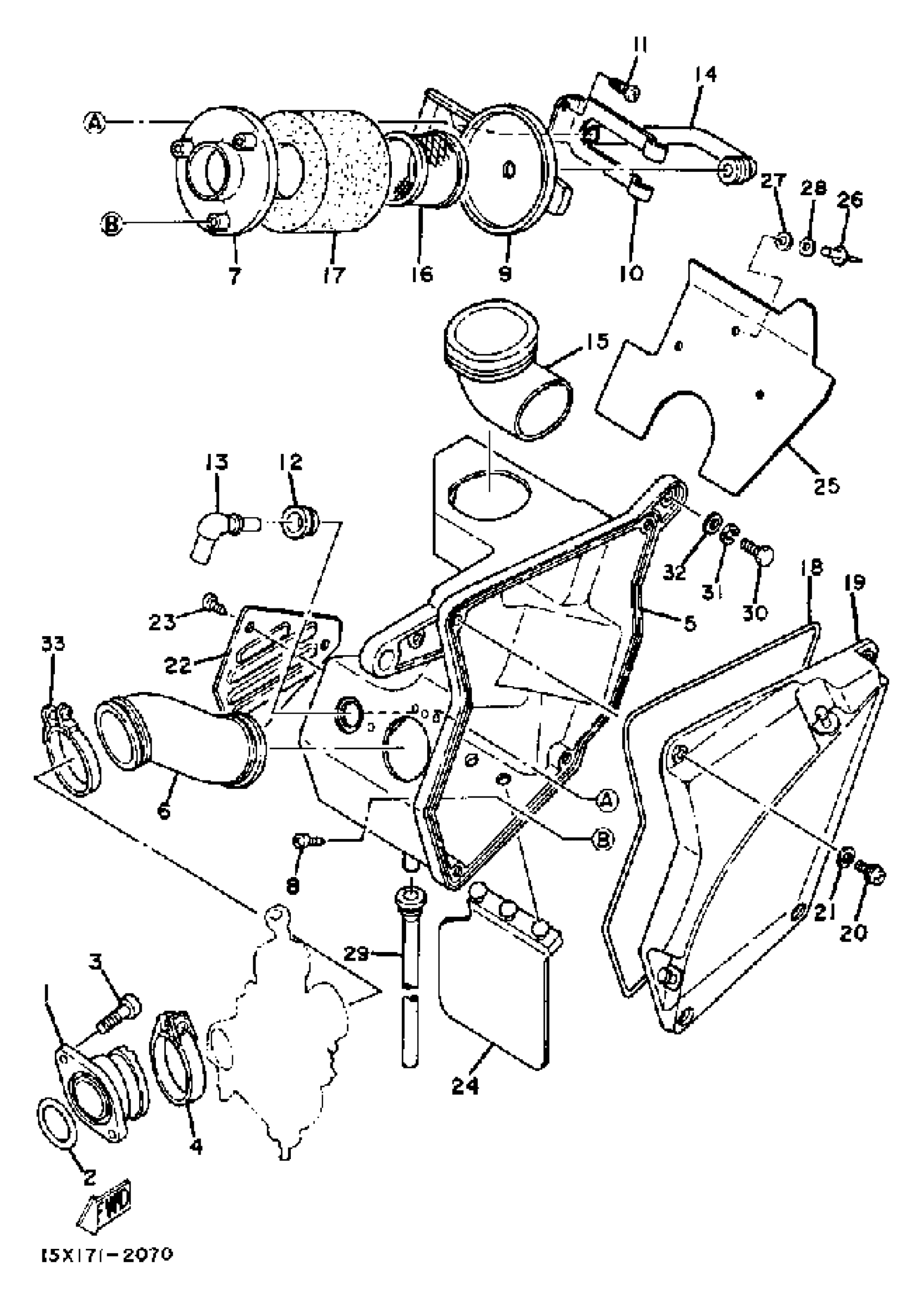

Find the part on the Intake diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT200 (XT200J) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

15A-13586-03-00

1
Out of stock

2

O-RING (16G)

93210-35537-00

1

$11.32

In stock

3

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

4

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

5

CASE, AIR CLEANER 1

15A-14411-00-00

1
Out of stock

6

JOINT, AIR CLNR 1

15A-14453-02-00

1
Out of stock

7

PLATE, ELEMENT

15A-14472-00-00

1
Out of stock

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

9

PLATE, ELEMENT FTNG

15A-14468-00-00

1
Out of stock

10

SPRING

(15A-14487-00-00)

1
Out of stock

11

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

12

GROMMET (4H7)

90480-16278-00

1

$2.62

In stock

13

PIPE, JOINT

15A-14485-00-00

1
Out of stock

14

PIPE

(15A-14419-00-00)

1
Out of stock

15

DUCT

15A-14437-00-00

1
Out of stock

16

GUIDE, ELEMENT

15A-14458-01-00

1
Out of stock

17

ELEMENT, AIR CLEANER

15A-14451-01-00

—
Out of stock

18

SEAL

1VJ-14462-00-00

—

$16.08

In stock

19

CAP, CLEANER CASE 1

15A-14412-00-00

1
Out of stock

20

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

21

WASHER(1RW)

92907-05600-00

—
Out of stock

22

PROTECTOR

(15A-1442F-00-00)

1
Out of stock

23

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

24

FLAP

15A-21621-00-00

1
Out of stock

25

FLAP

(15A-21691-01-00)

1
Out of stock

26

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

27

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

28

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

29

PIPE, DRAIN

(15A-1443E-00-00)

1
Out of stock

30

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

33

HOSE CLAMP ASSY(10F)

90450-45075-00

—

$4.15

In stock
