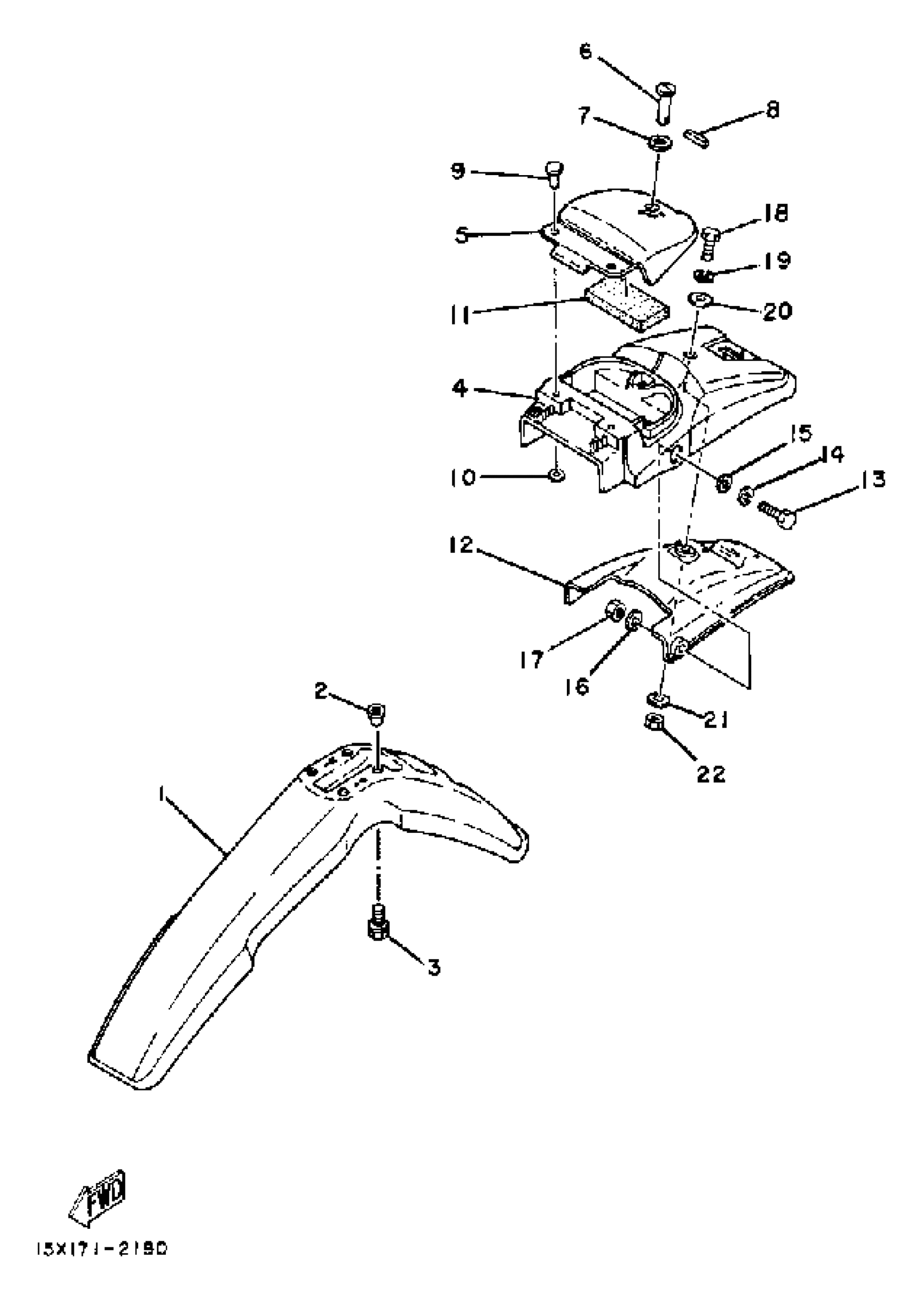

Yamaha XT200J (XT200) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

15A-21511-00-00

Unavailable

2

COLLAR (3Y2)

90387-07789-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

FENDER, REAR

15A-21611-00-00

Unavailable

5

BOX

15A-2160E-00-00

Unavailable

6

PIN, SPECIAL SHAPE

90249-06145-00

Unavailable

7

WASHER, WAVE(3RW)

90206-06090-00

$8.49

8

PIN, SPRING (583)

91609-25018-00

$7.49

9

RIVET,BLIND

90267-40080-00

Unavailable

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

DAMPER (2GU-21747-00-00)

15A-21649-00-00

Unavailable

12

REINFORCEMENT

15A-21670-00-00

Unavailable

13

BOLT, HEXAGON

97017-08025-00

$10.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

WASHER, PLAIN

92990-08200-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

WASHER, PLATE

90201-06M02-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable
