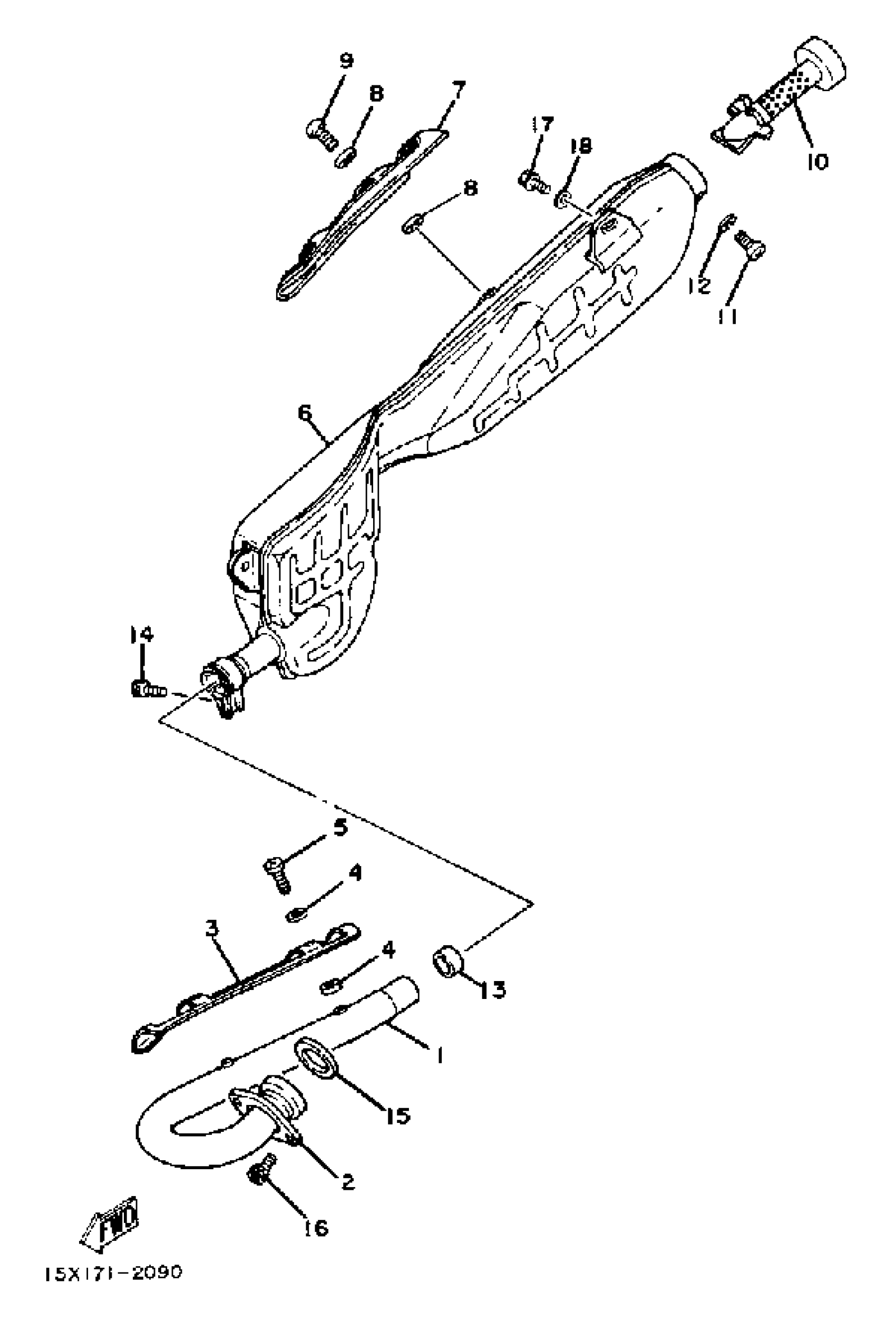

Yamaha XT200J (XT200) 1982 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST L
15A-14611-60-00
Unavailable
3
PROTECTOR, EXHAUST PIPE
15A-14628-00-00
Unavailable
6
MUFFLER L
15A-14711-00-00
Unavailable
7
PROTECTER, MUFFLER 2
15A-14728-00-00
Unavailable
10
PIPE, OUTLET
15E-14752-00-00
Unavailable
11
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
16
BOLT,SOCKET
91317-06020-00
Unavailable
17
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
18
WASHER (853)
90201-08326-00
Unavailable
