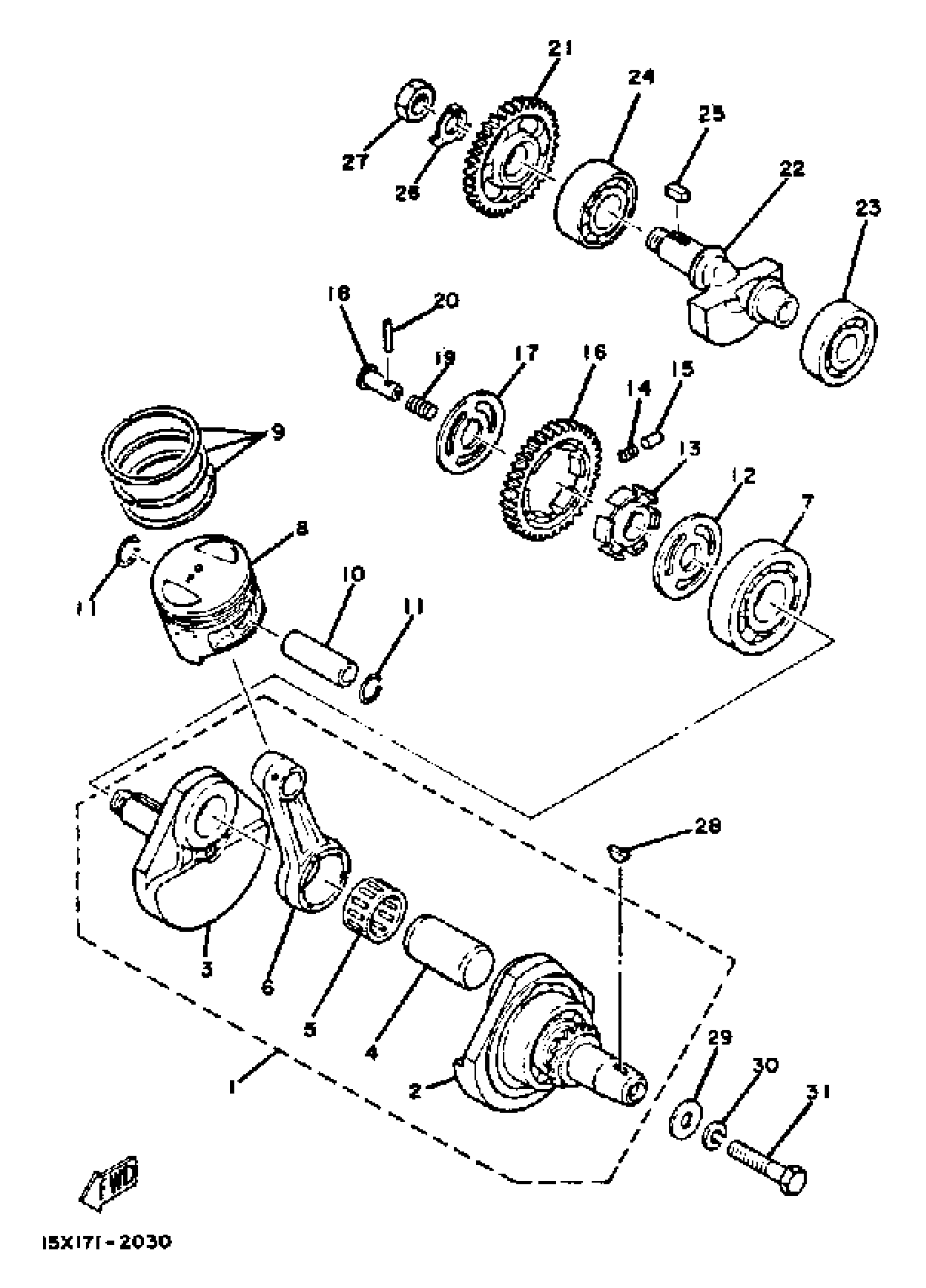

Yamaha XT200J (XT200) 1982 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

15A-11400-00-00

$455.99

2

CRANK SUB ASSY 1

15A-11401-09-00

Unavailable

3

CRANK 2

5H0-11422-01-00

$170.99

4

PIN, CRANK 1

5H0-11681-00-00

Unavailable

5

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$62.99

6

ROD, CONNECTING

15A-11651-00-00

Unavailable

7

BRG,R-B 6306 72MM 351G KY

93306-30615-00

$83.99

8

PISTON (2ND 0/S 0.50MM)

36X-11636-00-00

$118.99

8

PISTON (4TH 0/S 1.00MM)

36X-11638-00-00

Unavailable

8

PISTON (STD)

36X-11631-00-A0

$124.99

9

PISTON RING SET (STD)

15A-11603-00-00

$63.99

9

PISTON RING SET (0.50MM O/S)

15A-11605-00-00

$67.99

9

PISTON RING SET (1.00MM O/S)

15A-11607-00-00

Unavailable

10

PIN, PISTON

58L-11633-00-00

$32.99

11

CIRCLIP (1L9)

93450-17044-00

$8.49

12

WASHER, PLATE (5H0)

90201-201E4-00

Unavailable

13

BOSS, BUFFER

5H0-11496-00-00

Unavailable

14

SPRING COMPRESSION341114880000

90501-21133-00

Unavailable

15

PIN, DOWEL

93605-10090-00

Unavailable

16

GEAR, DRIVE

5H0-11536-00-00

Unavailable

17

WASHER, CLAW (5H0)

90214-20023-00

Unavailable

18

PIN, CLEVIS (5H0)

90240-07083-00

Unavailable

19

SPRING, COMPRESSION (5H0)

90501-07629-00

Unavailable

20

PIN, DOWEL (5H0)

93602-13177-00

Unavailable

21

GEAR, BALANCE WT

5H0-11531-00-00

Unavailable

22

WEIGHT 1

15A-11454-00-00

Unavailable

23

BEARING

93306-30443-00

Unavailable

24

BEARING

93306-30443-00

Unavailable

25

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

26

WASHER, LOCK (15Y)

90215-14205-00

Unavailable

27

NUT (5H0)

90170-14284-00

Unavailable

28

KEY, WOODRUFF

90280-05001-00

Unavailable

29

WASHER, PLATE(52H)

90201-102J5-00

Unavailable

30

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

31

BOLT (341)

90101-10188-00

Unavailable
