1982 Yamaha XT200 (XT200J) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1982 Yamaha XT200 (XT200J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

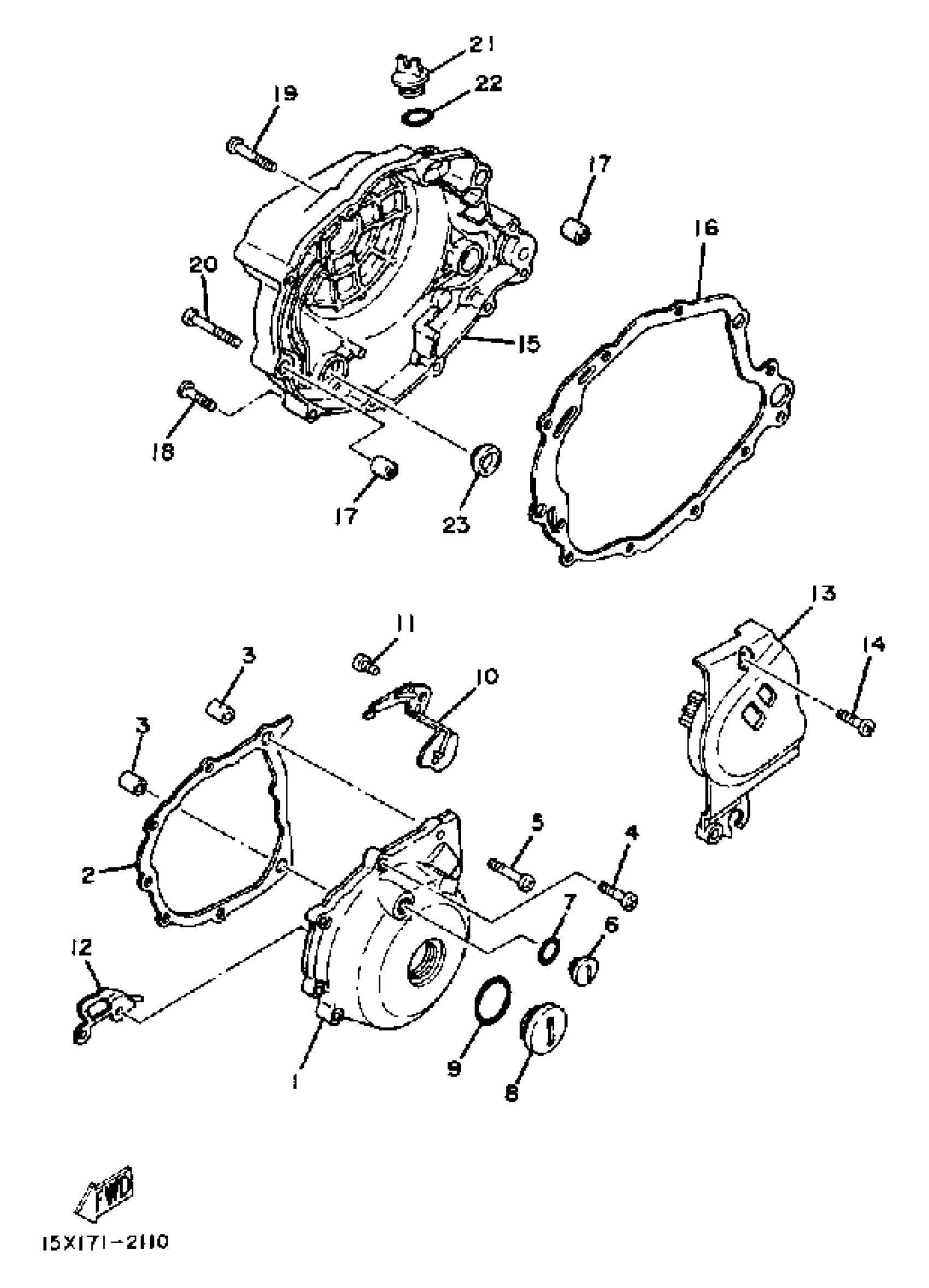

1982 Yamaha XT200 (XT200J) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

15A-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

15A-15451-02-00

1

$12.27

In stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

5

SCREW, PAN

98507-06035-00

1

$6.18

In stock

6

—

$16.62

In stock

7

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

8

1

$26.28

In stock

9

O-RING (341)

93210-32172-00

1

$5.78

In stock

10

CLAMP (15A)

90465-08188-00

1

$4.71

In stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

CLAMP

90462-16096-00

1
Out of stock

13

CRCS COVER ASSEMBLY RASSEMBLY 2

15A-15420-01-00

1
Out of stock

14

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

15

COVER KIT, CRNKCASE (15A-15431-00)

99999-01932-00

1
Out of stock

16

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

—

$28.73

In stock

17

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

18

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

19

SCREW, PAN

98507-06035-00

1

$6.18

In stock

20

SCREW, PAN

98507-06045-00

—

$2.63

In stock

21

PLUG, OIL

3Y1-15363-10-00

—

$17.02

In stock

22

O-RING (646)

93210-19123-00

—

$6.91

In stock

23

GAUGE, LEVEL

3Y1-15361-00-00

—

$25.51

In stock
