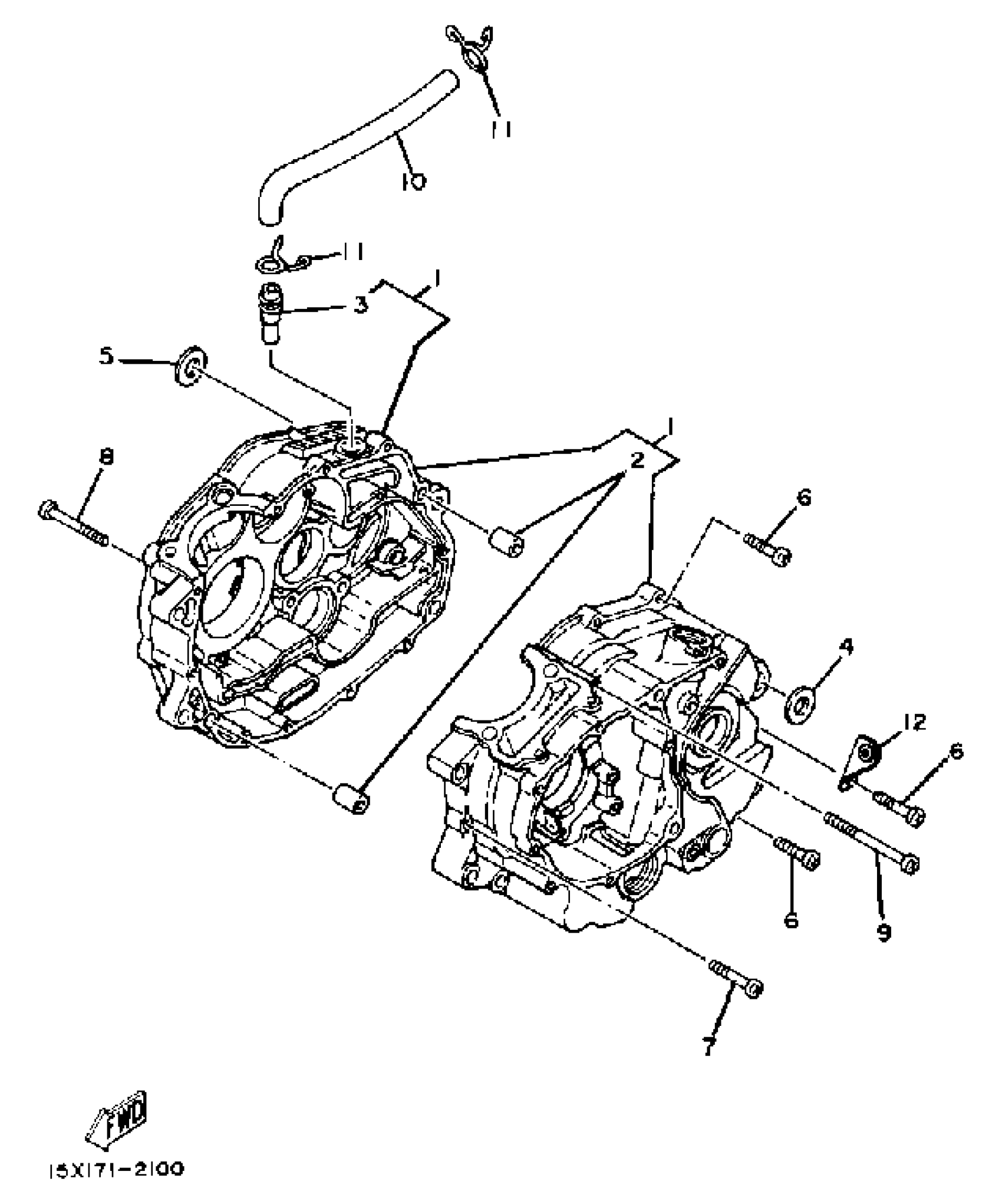

Yamaha XT200J (XT200) 1982 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

99999-03072-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

COLLAR (15A)

90387-125F1-00

$3.02

5

COLLAR (15A)

90387-125F1-00

$3.02

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06040-00

$3.22

8

SCREW, PAN

98507-06060-00

$7.99

9

SCREW, PAN

98507-06085-00

$6.99

10

PIPE, BREATHER 1

(15A-11166-00-00)

Unavailable

11

CLIP (371)

90467-14015-00

$8.49

12

CLAMP (15A)

90465-08200-00

$9.49
