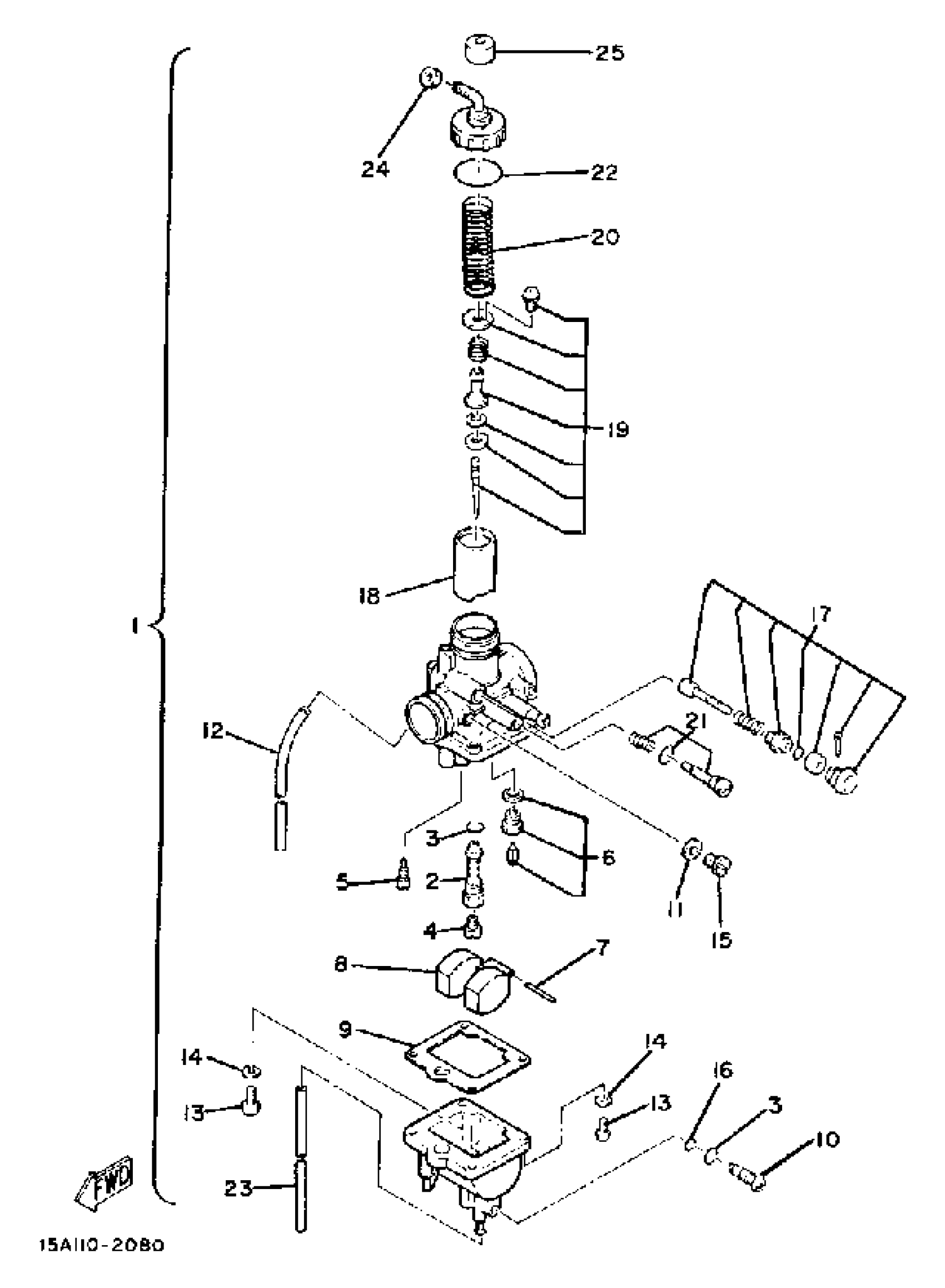

Yamaha XT200J (XT200) 1982 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

15A-14301-00-00

Unavailable

2

. NOZZLE, MAIN

5H0-14341-00-00

Unavailable

3

GASKET

360-24512-00-00

$9.99

4

JET, MAIN (#122) (85L)

288-14355-61-00

Unavailable

5

. JET, PILOT #40 (#040)

5H0-14342-20-00

Unavailable

6

VALVE SEAT SET

12T-W1496-00-00

$88.99

7

. PIN, FLOAT

647-14386-10-00

Unavailable

8

. FLOAT

54G-14385-00-00

Unavailable

9

GASKET, FLOAT CHAMBER

5H0-14384-00-00

Unavailable

10

. PLUG, SCREW

5H0-14115-00-00

Unavailable

11

GASKET

5H0-14126-00-00

$4.73

12

. PIPE 1

5H0-14348-00-00

Unavailable

13

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW

5H0-14991-00-00

$5.49

16

O-RING

5H0-14397-00-00

Unavailable

17

PLUNGER, STARTER

15A-14371-01-00

Unavailable

18

. VALVE, THROTTLE 1

5H0-14312-23-00

Unavailable

19

. NEEDLE SET

15A-W1418-00-00

Unavailable

20

SPRING,THRTL VALVE

15E-14331-00-00

Unavailable

21

THROTTLE SCREW SET

4WP-14103-00-00

Unavailable

22

. O-RING

1J2-14147-00-00

Unavailable

23

. PIPE

36F-14396-00-00

Unavailable

24

NUT, CABLE ADJUSTING

85L-14161-00-00

Unavailable

25

. CAP

15A-14118-00-00

Unavailable
