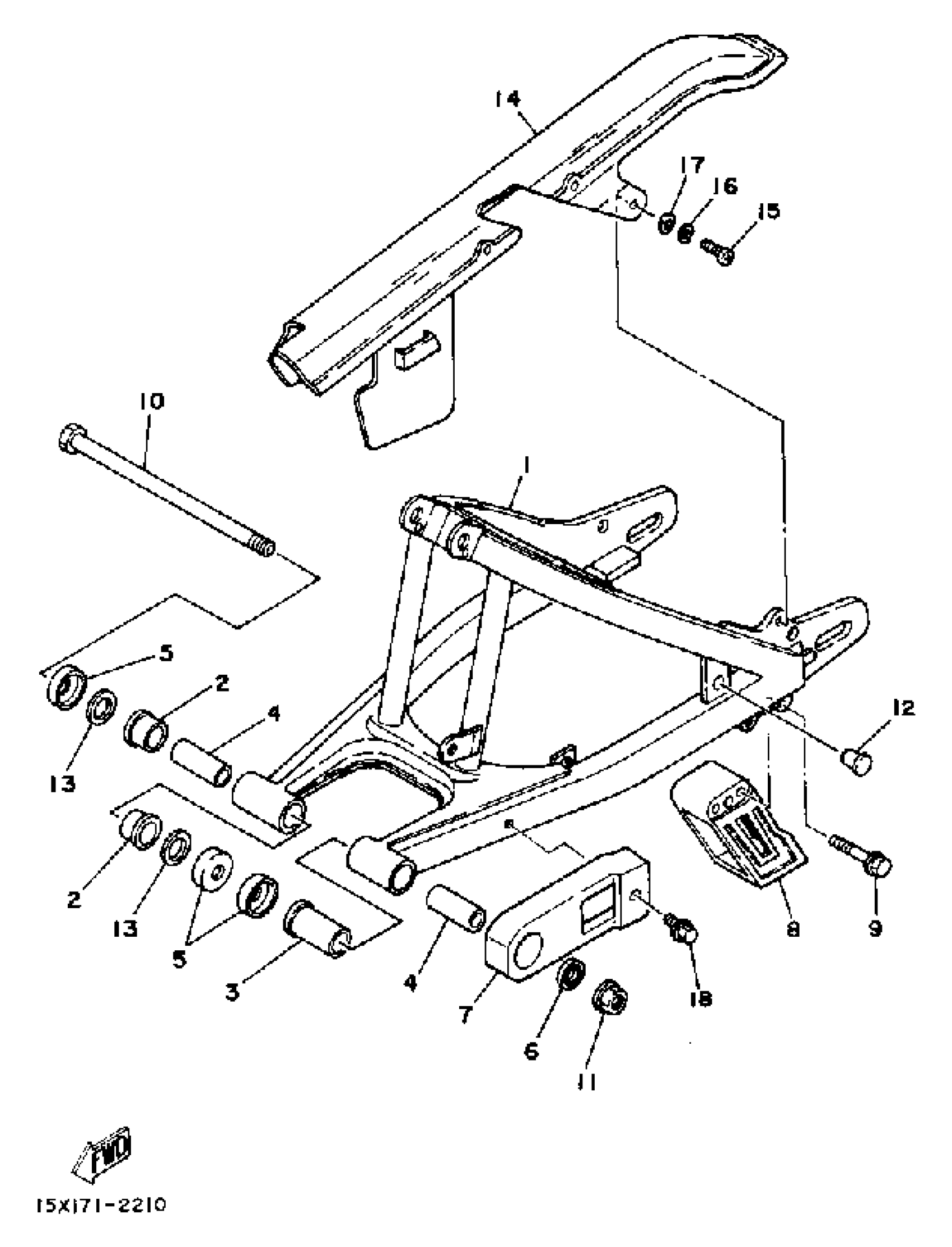

Yamaha XT125KC (XT125 CA) 1983 REAR ARM Diagram

REAR ARM

15A-22110-01-35

Unavailable

BUSH 1

15A-22123-00-00

$29.99

BUSHING (401-22123-00)

90386-18028-00

$26.99

COLLAR(J45)

90387-124R8-00

$14.99

COVER, THRUST 1

401-22128-01-00

$29.99

OIL SEAL (2J5)

93109-18020-00

$13.49

SEAL, GUARD

15A-22151-01-00

Unavailable

GUARD, CHAIN

10V-22153-00-00

$45.99

SCREW PAN HEAD

98580-06550-00

$8.49

SHAFT, PIVOT

15A-22141-00-00

Unavailable

NUT, SELF LOCKING (1M1)

90185-12072-00

$9.49

PLUG (3Y1)

90338-11111-00

Unavailable

SHIM

401-22127-00-00

$7.99

CHAIN CASE ASSEMBLY

15A-22310-00-00

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

WASHER, SPRING

92907-06100-00

Unavailable

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

BOLT, WITH WASHER (10V)

90119-05062-00

Unavailable
