Description

Price

1

HEADLIGHT UNIT ASSEMBLY

(3J0-84110-60-00)

Unavailable

1

UNAVAILABLE IN PRICE BOOK

(3J0-84110-61-00)

Unavailable

2

RING, RETAINING

3J0-84195-60-00

Unavailable

3

. LENS ASSEMBLY

2A6-84120-60-00

Unavailable

4

. COVER, SOCKET

341-84397-61-00

Unavailable

5

SPRING, REFLECTOR SET

1M1-84124-60-00

$8.99

6

COLLAR

1M1-84133-60-00

Unavailable

7

. SPACER

498-84128-60-00

Unavailable

8

BOLT, HEXAGON

1M1-84137-60-00

$6.99

9

BODY ASSY, HEADLIGHT

3J0-84130-60-00

Unavailable

10

COLLAR, BODY FITTING

498-84145-60-00

$6.99

11

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

12

DAMPER

1M1-84164-60-00

$25.99

13

BOLT (8K4)

90101-08499-00

Unavailable

14

WASHER(JN5)

92907-08100-00

$8.49

15

WASHER(6TC)

92907-08200-00

Unavailable

16

NUT(6L2)

95333-08600-00

Unavailable

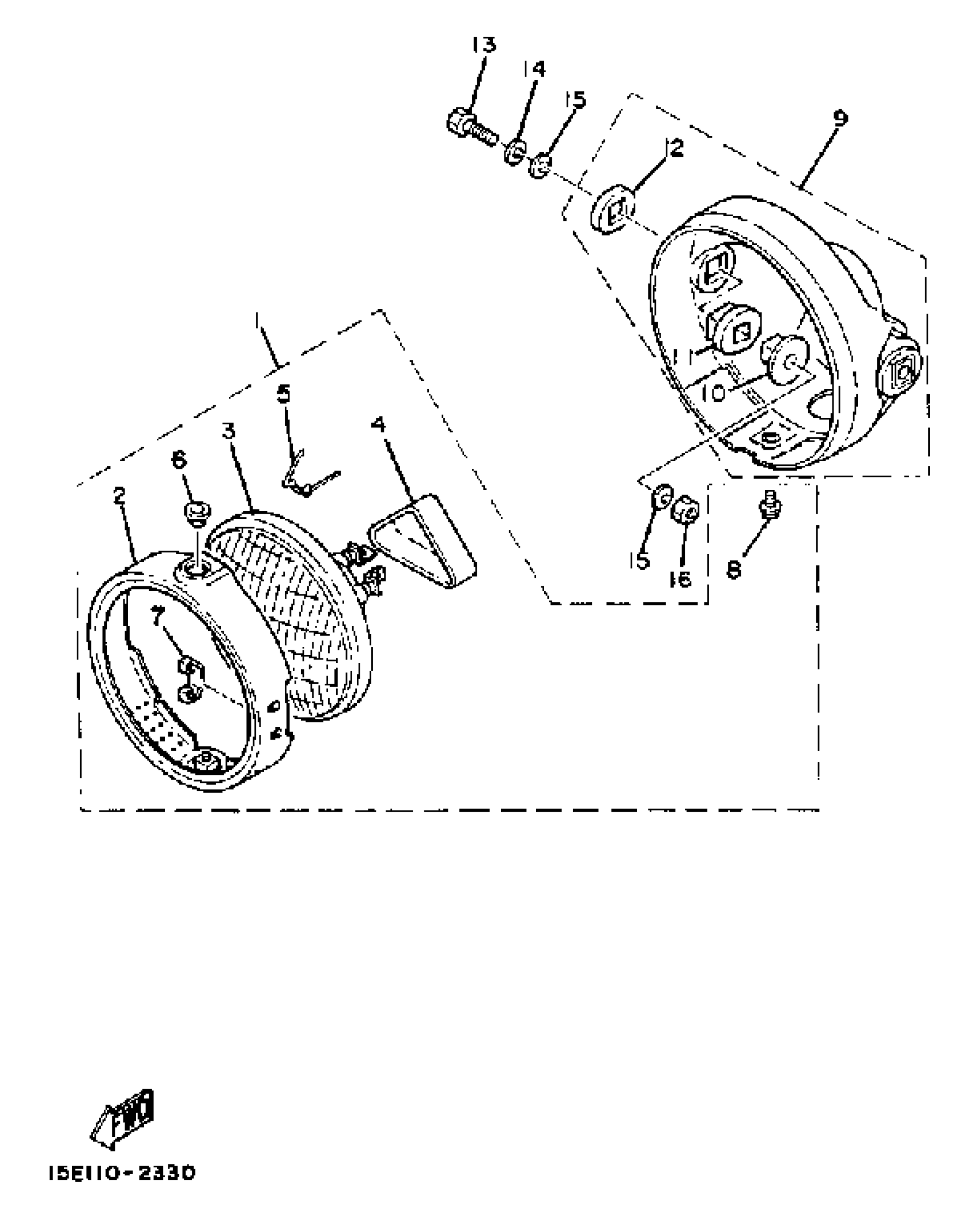

Yamaha XT125KC (XT125 CA) 1983 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

UNAVAILABLE IN PRICE BOOK

RING, RETAINING

. LENS ASSEMBLY

. COVER, SOCKET

SPRING, REFLECTOR SET

COLLAR

. SPACER

BOLT, HEXAGON

BODY ASSY, HEADLIGHT

COLLAR, BODY FITTING

DAMPER, HEAD LAMP A

DAMPER

BOLT (8K4)

WASHER(JN5)

WASHER(6TC)

NUT(6L2)
