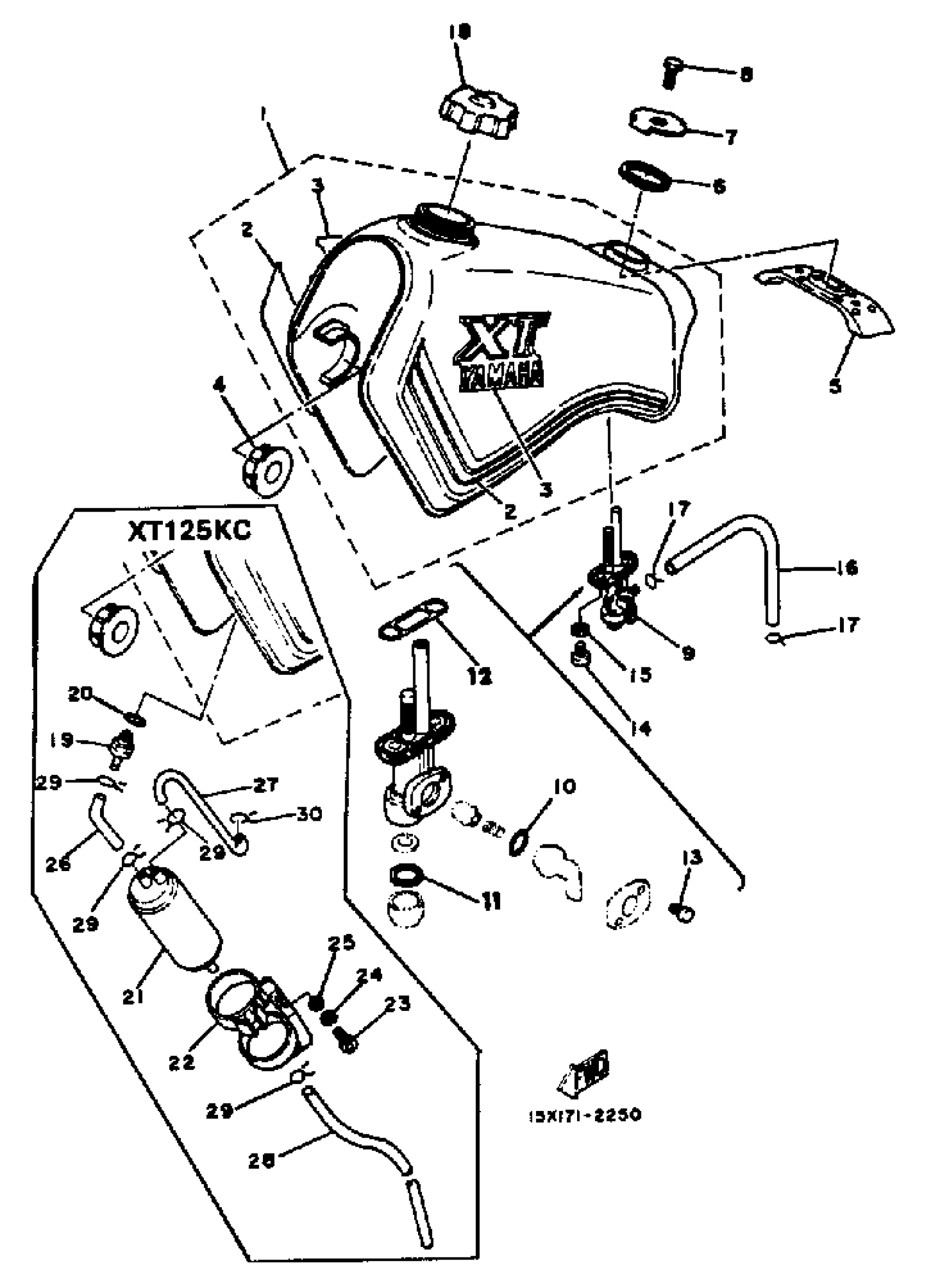

Yamaha XT125KC (XT125 CA) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

15A-24110-00-04

Unavailable

1

FUEL TANK

(21N-24110-00-01)

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

2N1-24240-00-00

Unavailable

3

. EMBLEM 1

20T-24161-00-00

Unavailable

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

15A-24182-00-00

Unavailable

6

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

7

WASHER, SPECIAL

11H-24186-00-00

Unavailable

8

BOLT, HEXAGON

97017-08025-00

$10.49

9

FUEL COCK ASSY 1

23F-24500-20-00

$41.99

10

O-RING

4X8-24534-00-00

$13.49

11

GASKET

4X8-24565-10-00

$6.99

12

O-RING

4X8-24512-00-00

$8.99

13

SCREW

4X8-24535-00-00

$3.90

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

16

HOSE (L200)

90445-10752-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

CAP ASSY

3Y1-24610-01-00

Unavailable

18

CAP ASSEMBLY

5F7-24610-00-00

Unavailable

19

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

20

O-RING (4G0)

93210-11453-00

Unavailable

21

CANISTER ASSEMBLY

20K-24170-00-00

Unavailable

22

CANISTER HOLDER

(21N-24190-00-00)

Unavailable

23

BOLT, SOCKET

91317-08016-00

Unavailable

24

WASHER(JN5)

92907-08100-00

Unavailable

25

WASHER(6TA)

92907-08600-00

Unavailable

26

PIPE 4

(21N-24314-00-00)

Unavailable

27

PIPE 5

(21N-24315-00-00)

Unavailable

28

UNAVAILABLE IN PRICE BOOK

90446-11083-00

Unavailable

29

CLIP

90467-090A2-00

Unavailable

30

CLIP(1JH)

90467-11106-00

Unavailable
