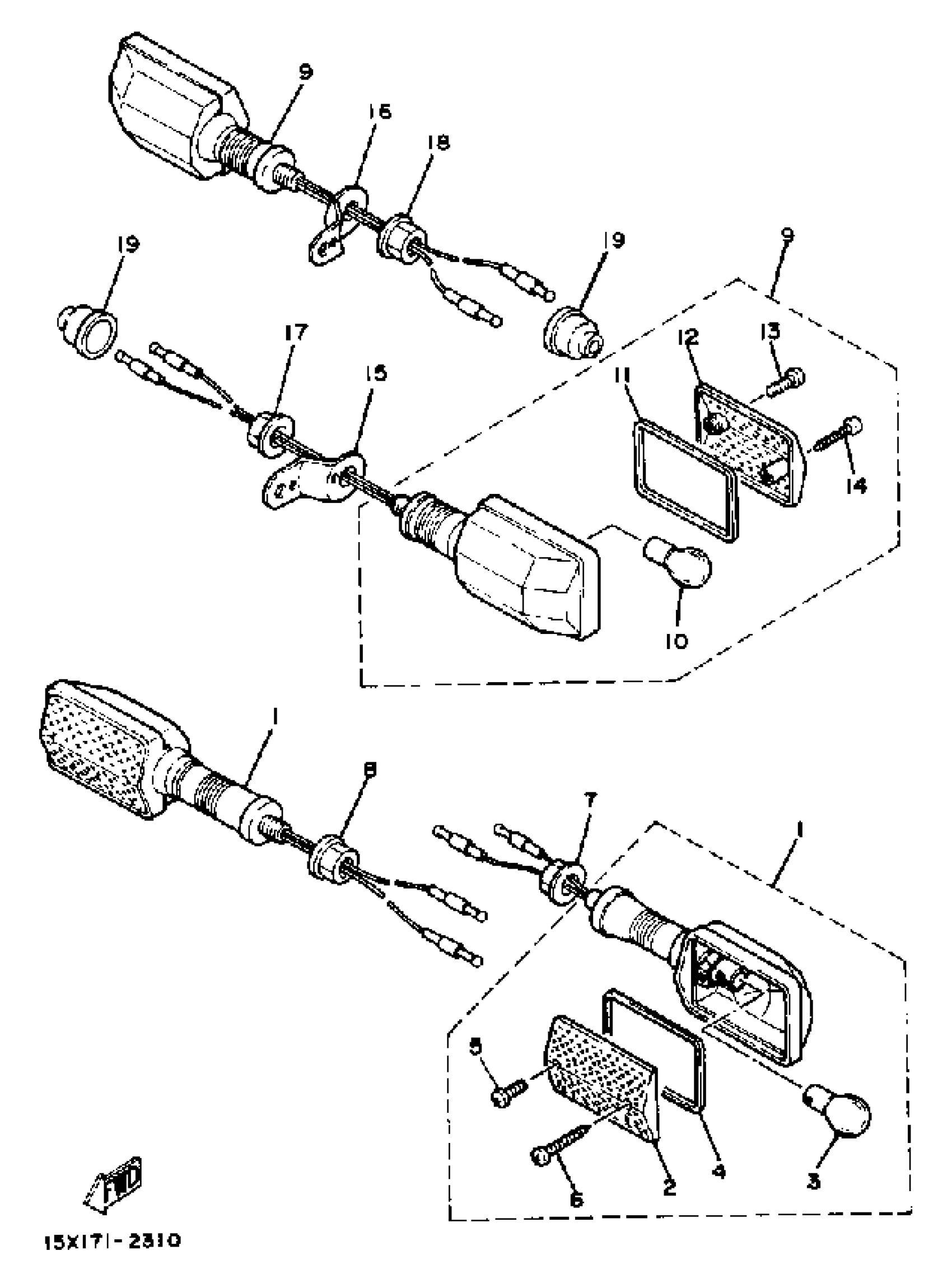

Yamaha XT125KC (XT125 CA) 1983 FLASHER LIGHT Diagram

#

Description
Price

1

REAR FLASHER LITE ASSEMBLYLIGHT ASSEMBLY 1

20G-83330-60-00

Unavailable

2

LENS FLASHER

5Y1-83312-00-00

$13.49

3

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

4

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

5

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

6

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

7

NUT(3GG)

90179-12588-00

$7.49

8

NUT(3GG)

90179-12588-00

$7.49

9

FRONT FLASHER LAMP ASSY

17F-83310-10-00

$71.99

10

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

11

GASKET, FLASHER LENS

5Y1-83313-00-00

Unavailable

12

LENS FLASHER

5Y1-83312-00-00

$13.49

13

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

14

SCREW, TAPPING(3AH)

97707-40630-00

$8.49

15

STAY, FLASHER

15A-83368-00-00

Unavailable

16

STAY, FLASHER

15A-83369-00-00

Unavailable

17

NUT(3GG)

90179-12588-00

$7.49

17

NUT(3GG)

90179-12588-00

$7.49

18

NUT(3GG)

90179-12588-00

$7.49

18

NUT(3GG)

90179-12588-00

$7.49

19

CAP

10V-83365-01-00

Unavailable
