Description

Price

1

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

2

GASKET (5R6)

90430-10171-00

$3.18

3

STOP SWITCH ASSY

2F1-82530-03-00

$44.99

4

SWICH, SIDE STAND

5Y1-82566-00-00

$132.99

5

SCREW, FLAT

98707-05020-00

$7.49

6

FLASHER RELAY ASSEMBLY

20G-83350-60-00

Unavailable

7

HORN

1M8-83371-40-00

Unavailable

7

HORN

1M8-83371-40-00

Unavailable

8

BOLT (661)

97013-06012-00

$5.60

9

WASHER, SPRING

92995-06100-00

Unavailable

10

REFLECTOR, FRONT 1

355-85111-01-00

$34.99

11

WASHER, PLATE(3AJ)

90202-05191-00

$9.49

12

REFLECTOR, REAR 1

449-85131-02-00

$30.99

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

WASHER, PLAIN (646)

92990-05600-00

$0.80

15

NUT, HEXAGON (663)

95380-05600-00

Unavailable

16

BRACKET,REFLECT 1

5Y7-85132-00-00

Unavailable

17

UNAVAILABLE IN PRICE BOOK (92501-06012)

95303-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06M08-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

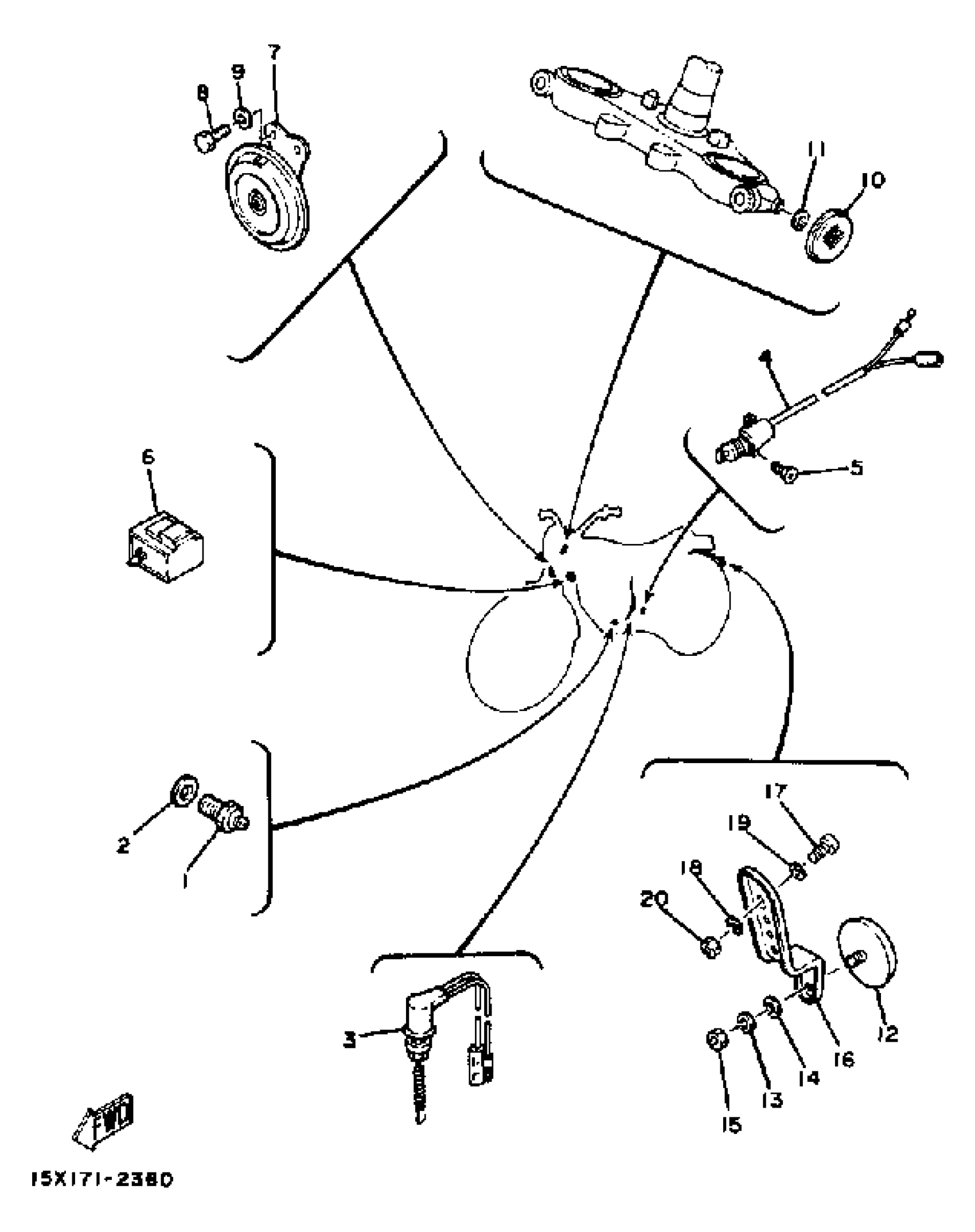

Yamaha XT125KC (XT125 CA) 1983 ELECTRICAL 2 Diagram

NEUTRAL SWITCH ASSY

GASKET (5R6)

STOP SWITCH ASSY

SWICH, SIDE STAND

SCREW, FLAT

FLASHER RELAY ASSEMBLY

HORN

HORN

BOLT (661)

WASHER, SPRING

REFLECTOR, FRONT 1

WASHER, PLATE(3AJ)

REFLECTOR, REAR 1

YBS67-5 WASHER, SPRING

WASHER, PLAIN (646)

NUT, HEXAGON (663)

BRACKET,REFLECT 1

UNAVAILABLE IN PRICE BOOK (92501-06012)

WASHER, SPRING

WASHER, PLATE

NUT, HEXAGON
