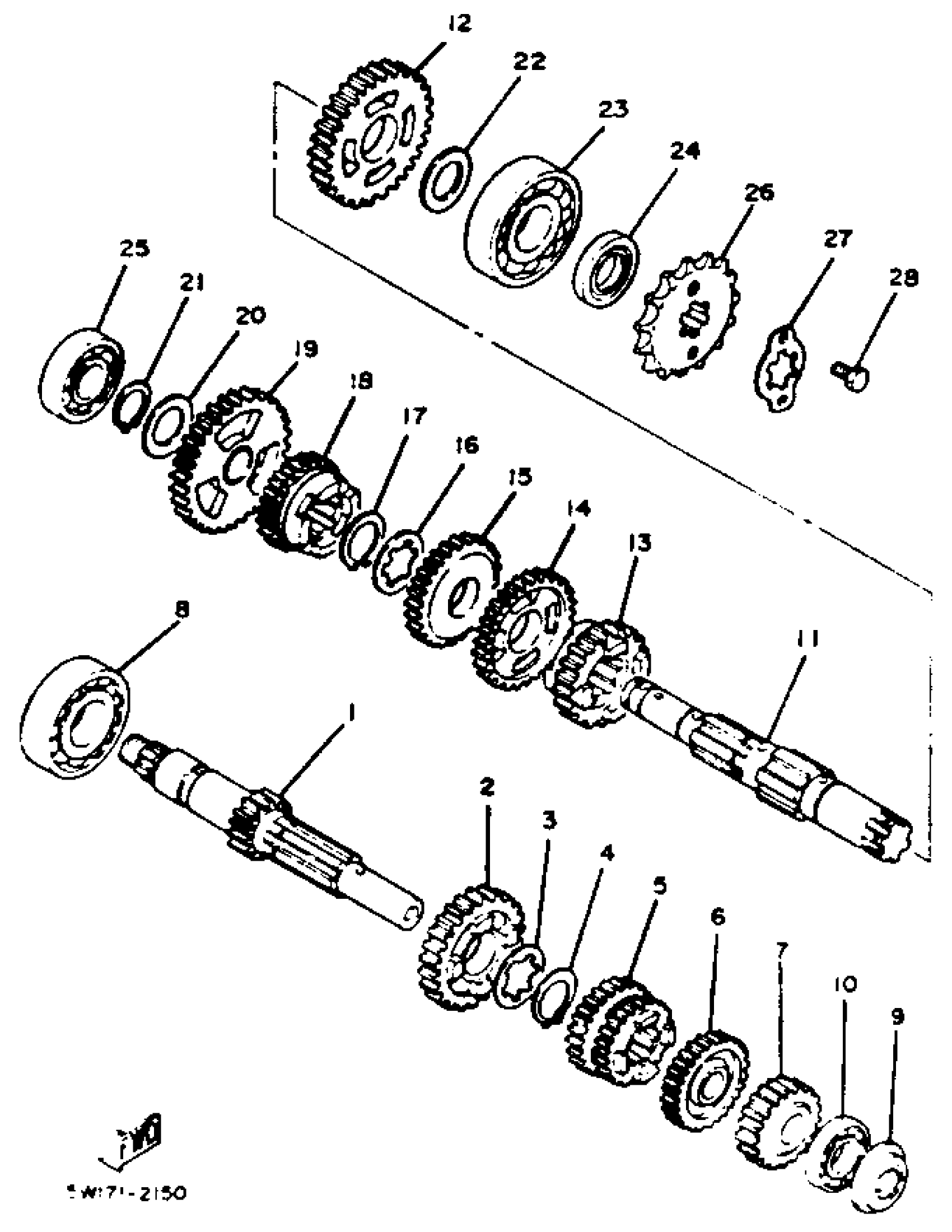

Find the part on the Transmissin diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Transmissin Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

17-T1741-10-00

1
Out of stock

2

GEAR, 4TH PINION (29T)

5H0-17141-01-00

1
Out of stock

3

WASHER (5H0)

90209-16209-00

1

$6.00

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 3RD PINION

1KH-17131-01-00

1

$124.22

In stock

6

UNAVAILABLE IN PRICE BOOK (27T)

5N-01714-10-00

1
Out of stock

7

GEAR, 2ND PINION

17T-17121-00-00

—

$65.14

In stock

8

BEARING(1YW)

93306-20461-00

1

$33.41

In stock

9

OIL SEAL (5H0)

93101-15101-00

1

$10.06

In stock

10

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

11

DRIVE AXLE ASSY

17T-17402-00-00

1
Out of stock

12

GEAR, 2ND WHEEL

17T-17221-01-00

—

$92.85

In stock

13

GEAR, 5TH WHEEL (25T)

17T-17251-00-00

1
Out of stock

14

GEAR, 3RD WHEEL

1KH-17231-01-00

1
Out of stock

15

GEAR, 4TH WHEEL

17T-17241-03-00

—

$60.89

In stock

16

WASHER (5H0)

90209-18208-00

—

$6.74

In stock

17

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

18

GEAR, 4TH WHEEL (23T)

5H0-17241-01-00

1
Out of stock

19

UNAVAILABLE IN PRICE BOOK (38T)

17-T1721-10-00

1
Out of stock

20

WASHER PLATE 306155610000

90201-17257-00

—

$6.42

In stock

21

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

22

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

23

BEARING

93306-30443-00

—

$56.87

In stock

24

OIL SEAL

93102-20004-00

—

$9.52

In stock

25

BEARING (30X)

93306-20332-00

—

$32.02

In stock

26

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

27

HOLDER, SPROCKET

5H0-17456-00-00

—
Out of stock

28

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
