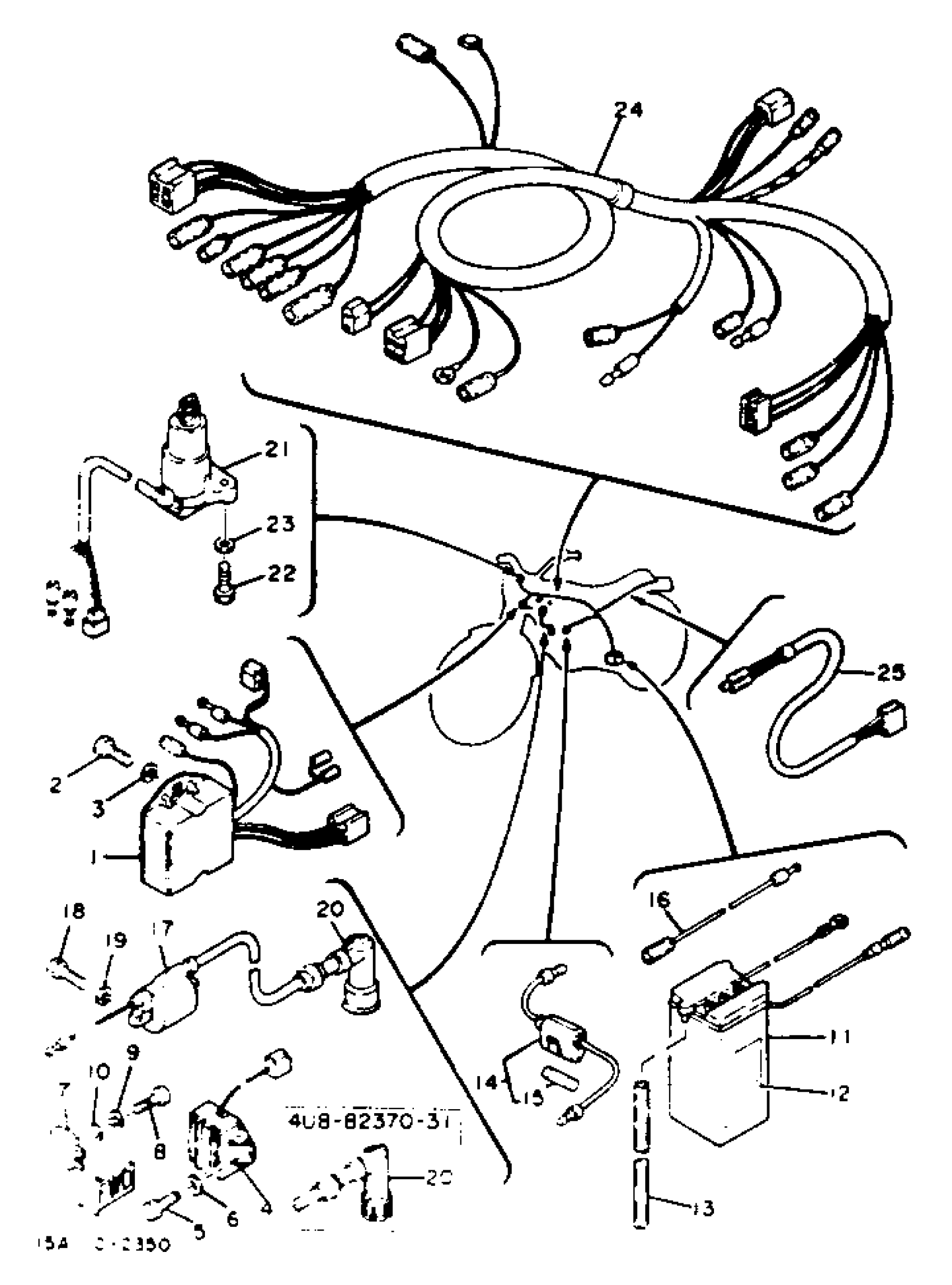

Yamaha XT125J (XT125) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

15E-85540-M0-00

Unavailable

2

SCREW PAN HEAD

98580-06010-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

VOLTAGE REG ASSEMBLY

10V-81910-60-00

Unavailable

5

BOLT (661)

97013-06012-00

$5.60

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

RECTIFIER ASSY

353-81970-M2-00

Unavailable

8

SCREW, PAN HEAD

98580-05020-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

WASHER, PLAIN (646)

92990-05600-00

$0.80

11

6N4A4D YUASA BATTERY

6N4-A4DY0-00-00

Unavailable

12

LABEL, BATTERY

40A-82141-G0-00

Unavailable

13

HOSE (L1500)

90445-084J0-00

$18.99

14

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

15

FUSE

1A0-82151-00-00

$16.49

16

WIRE, PLUS LEAD

15A-82115-00-00

Unavailable

17

IGNITION COIL ASSY

4RP-82310-26-00

Unavailable

18

BOLT(3DM)

97024-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

PLUG CAP ASSEMBLY

(4U8-82370-31-00)

Unavailable

20

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

21

MAIN SWITCH ASSEMBLY (15A-82508-00)

15A-82501-00-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

$2.80

24

WIRE HARNESS ASSEMBLY

15A-82590-00-00

Unavailable

25

CORD, TAILLIGHT

15A-84517-00-00

Unavailable
